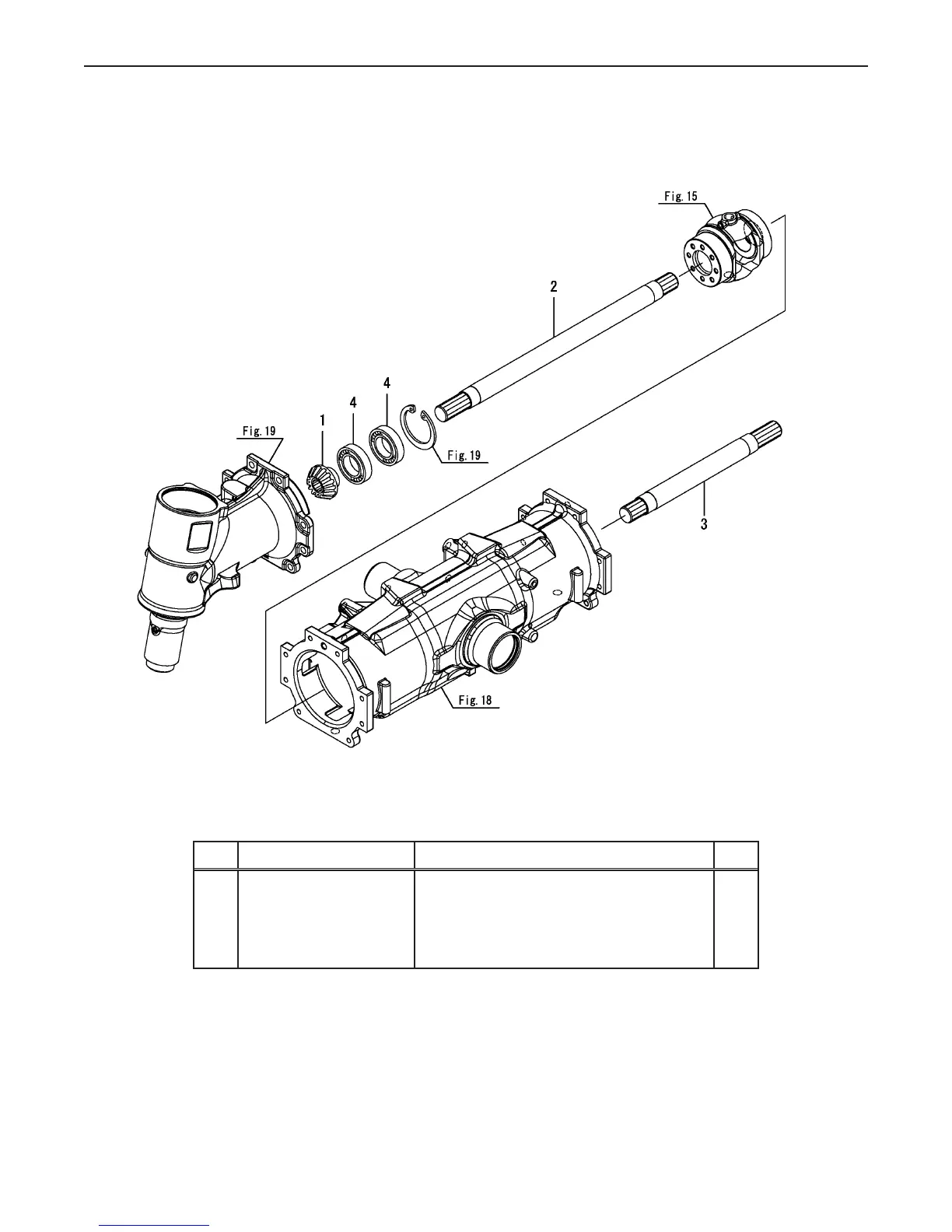

Fig 17. Front Shaft 1
Ref.
Part Number Description Qty
1 CY-1A7180-13520 PINION, 1ST SHAFT 12 2
2 CY-1A7180-13560 SHAFT L,FRONT 1ST 1
3 CY-1A7180-13570 SHAFT R,FRONT 1ST 1
4 CY-1A7180-13580 BEARING, HR6209UR 4
Fig.17. FRONT SHAFT(1
0CNP5-G37900
0CNP5-G37900
17. FRONT SHAFT(1
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PINION, 1ST SHAFT 121A7180-1352011 222
SHAFT L,FRONT 1ST1A7180-1356012 111
SHAFT R,FRONT 1ST1A7180-1357013 111
BEARING, HR6209UR1A7180-1358014 444
