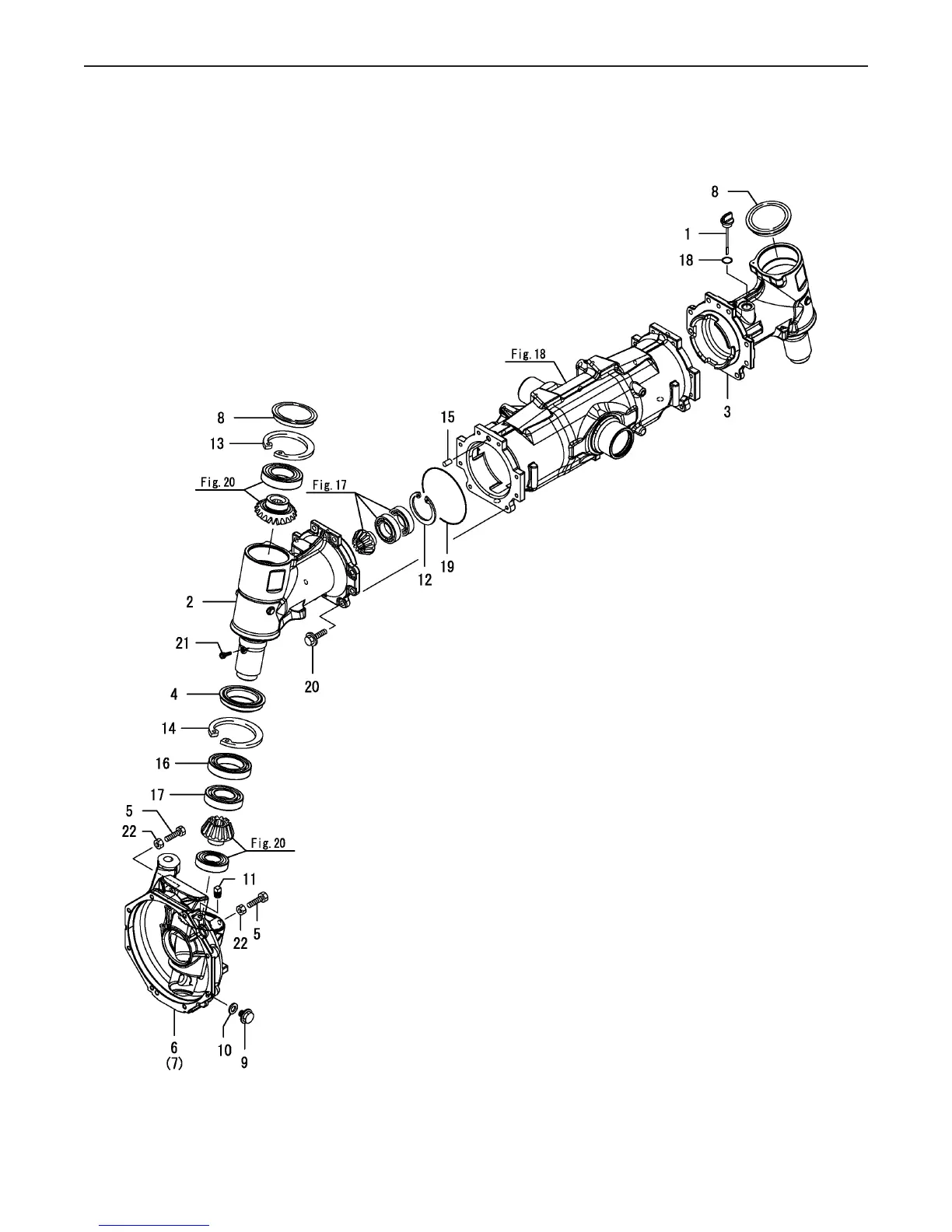

Fig 19. Front Gear Case
Fig.19. FRONT GEAR CASE
0CNP5-G37900
0CNP5-G37900
19. FRONT GEAR CASE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PLUG 20194066-1364011 111
HOUSING, FRONT GEAR1A7180-13710-112 111
HOUSING, FRONT GEAR1A8275-1372013 111
SEAL QLF709521.5198072-1376014 222
BOLT, 10X281A8275-1376015 444
GEARBOX, FRONT L1A8275-1377016 111
GEARBOX, FRONT R1A8275-1378017 111
CAP,SEALING 901C7100-1510018 222
BOLT M14X10,DRAIN1C6900-2312019 222
WASHER1C6900-23150110 222
PLUG PT02194151-36670111 222
CIRCLIP 8522252-000850112 222
CIRCLIP 9022252-000900113 222
CIRCLIP 9522252-000950114 222
PARALLEL PIN 10X 1822312-100180115 222
BALL BEARING24101-060124116 222
BALL BEARING24101-062094117 222
O-RING 1A P-18.024311-000180118 111
O-RING 1A G-130.024321-001300119 222
BOLT M10X 30 PLATED26106-100302120 161616
BOLT 8X 1226450-080122121 222
LOCK NUT M10 PLATED26756-100002122 444
