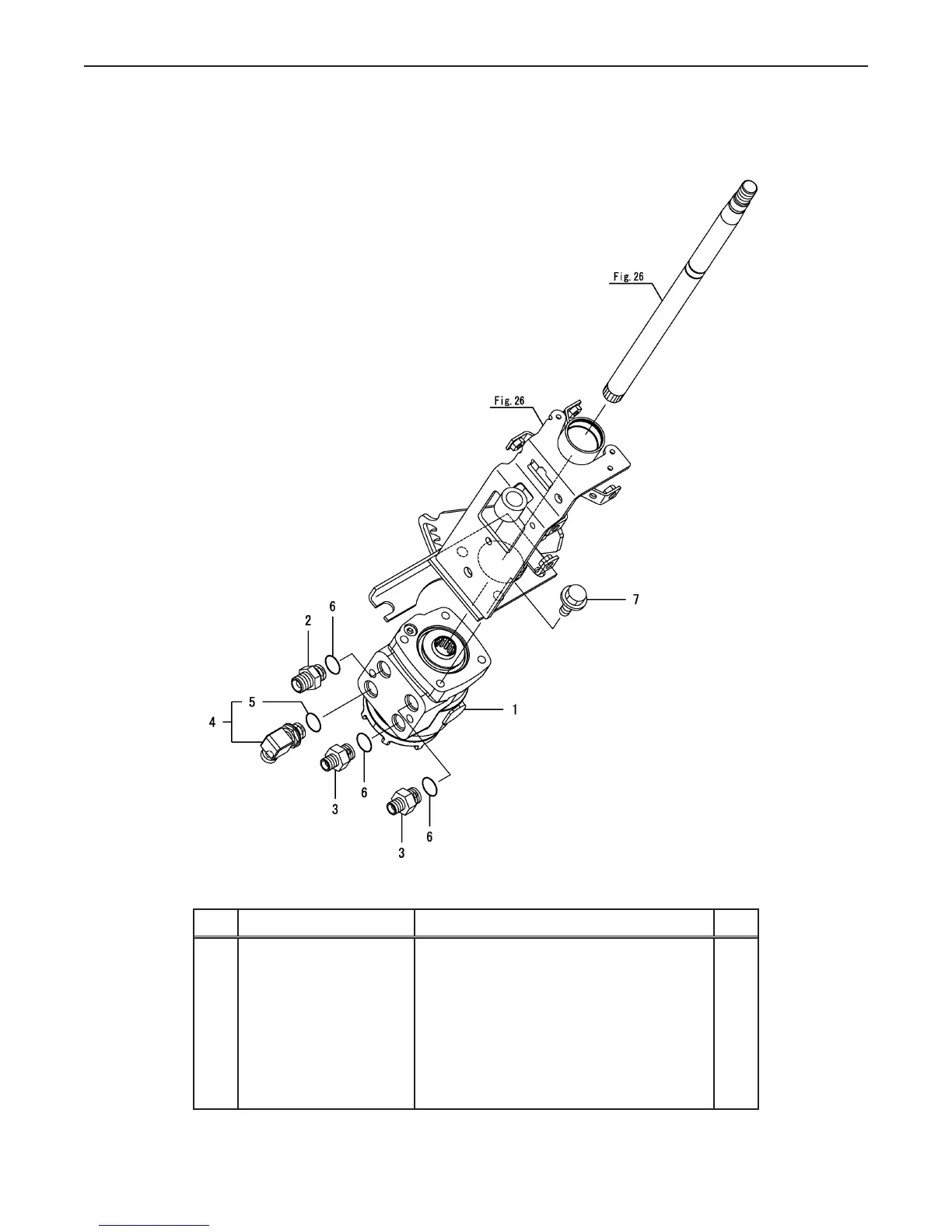

Fig 29. Pst Valve
Ref.
Part Number Description Qty
1 CY-1A8275-17500 VALVE, PST 1
2 CY-172730-75141 JOINT 1
3 CY-172124 -76160 CONNECTOR 2
4 CY-172142-76181 JOINT 90-3/8 ASSY 1
5 CY-24315-000140 O-RING 1B P-14.0 1
6 CY-24315-000140 O-RING 1B P-14.0 3
7 CY-26106-100202 BOLT M10X 20 PLATED 3
Fig.29. PST VALVE
0CNP5-G37900
0CNP5-G37900
29. PST VALVE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
VALVE, PST1A8275-1750011 111
JOINT172730-7514112 111
CONNECTOR172124-7616013 222
JOINT 90-3/8 ASSY172142-7618114 111
O-RING 1B P-14.024315-00014025 111
O-RING 1B P-14.024315-00014016 333
BOLT M10X 20 PLATED26106-10020217 333
