Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A8275-17820 HOSE,P 1
2 CY-1A8275-17840 HOSE,T 1
3 CY-1A8275-17890 CLAMP 1
4 CY-1A8275-49160 FLANGE ASSY 1
5 CY-194680-51670 BAND 3
6 CY-194180 - 61980 GROMMET 24 2
7 CY-24311-000180 O-RING 1A P-18.0 1
8 CY-24311-000220 O-RING 1A P-22.0 1
9 CY-26106-060122 BOLT M 6X 12 PLATED 1
10 CY-26106-060402 BOLT M 6X 40 PLATED 3
11 CY-933160-01370 CONNECTOR PF1/2-3/8 1
Copyright 2011 Cub Cadet Yanmar LLC
79

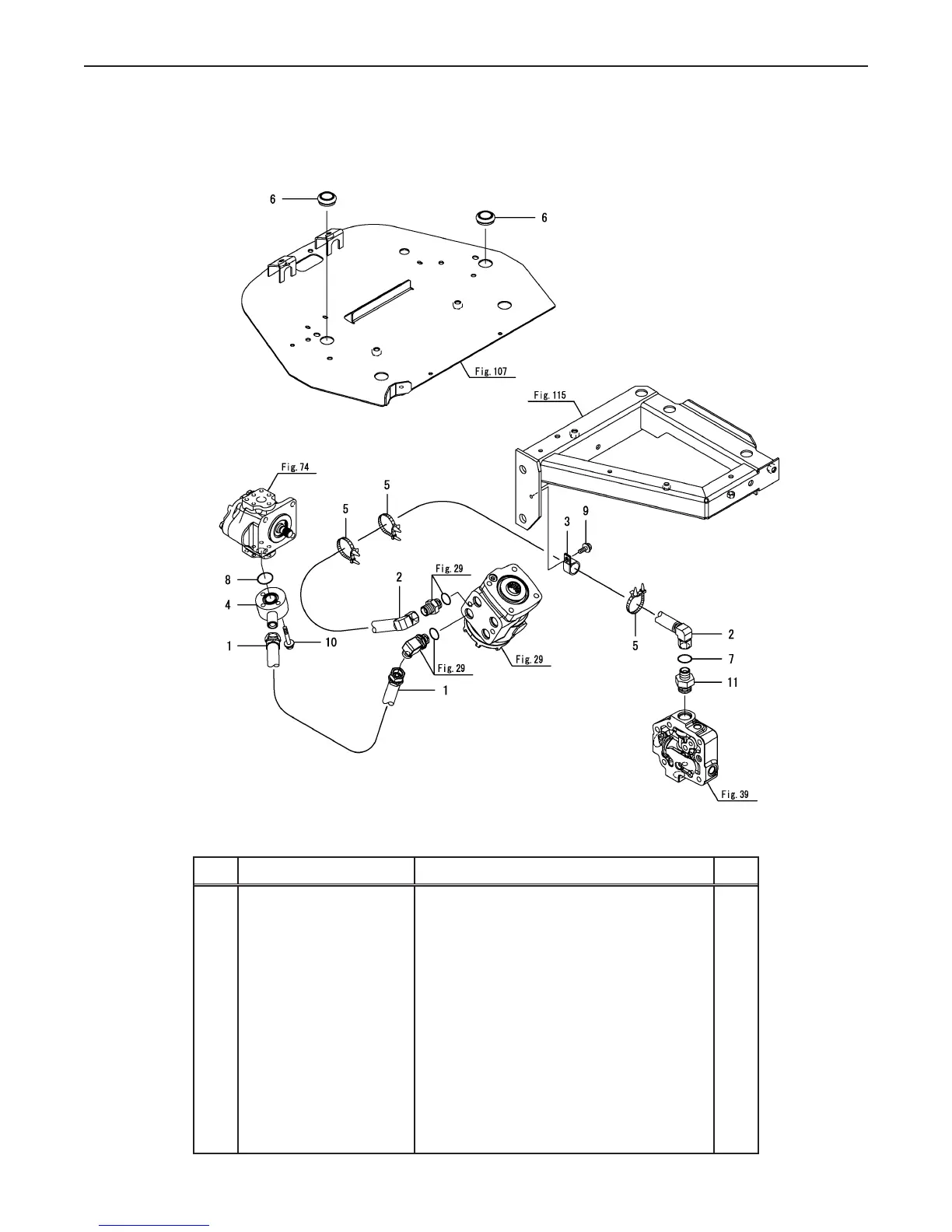

Fig 30. Pst Piping
Fig.30. PST PIPING
0CNP5-G37900
0CNP5-G37900
30. PST PIPING
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
HOSE,P1A8275-1782011 111
HOSE,T1A8275-1784012 111
CLAMP1A8275-1789013 111
FLANGE ASSY1A8275-4916014 111
BAND194680-5167015 333
GROMMET 24194180-6198016 222
O-RING 1A P-18.024311-00018017 111
O-RING 1A P-22.024311-00022018 111
BOLT M 6X 12 PLATED26106-06012219 111
BOLT M 6X 40 PLATED26106-060402110 333
CONNECTOR PF1/2-3/8933160-01370111 111
(C)Copy Rights YANMAR CO.,LTD.
