Cub Cadet Yanmar Lx490

Lx490Lx Series
80
Copyright 2011 Cub Cadet Yanmar LLC

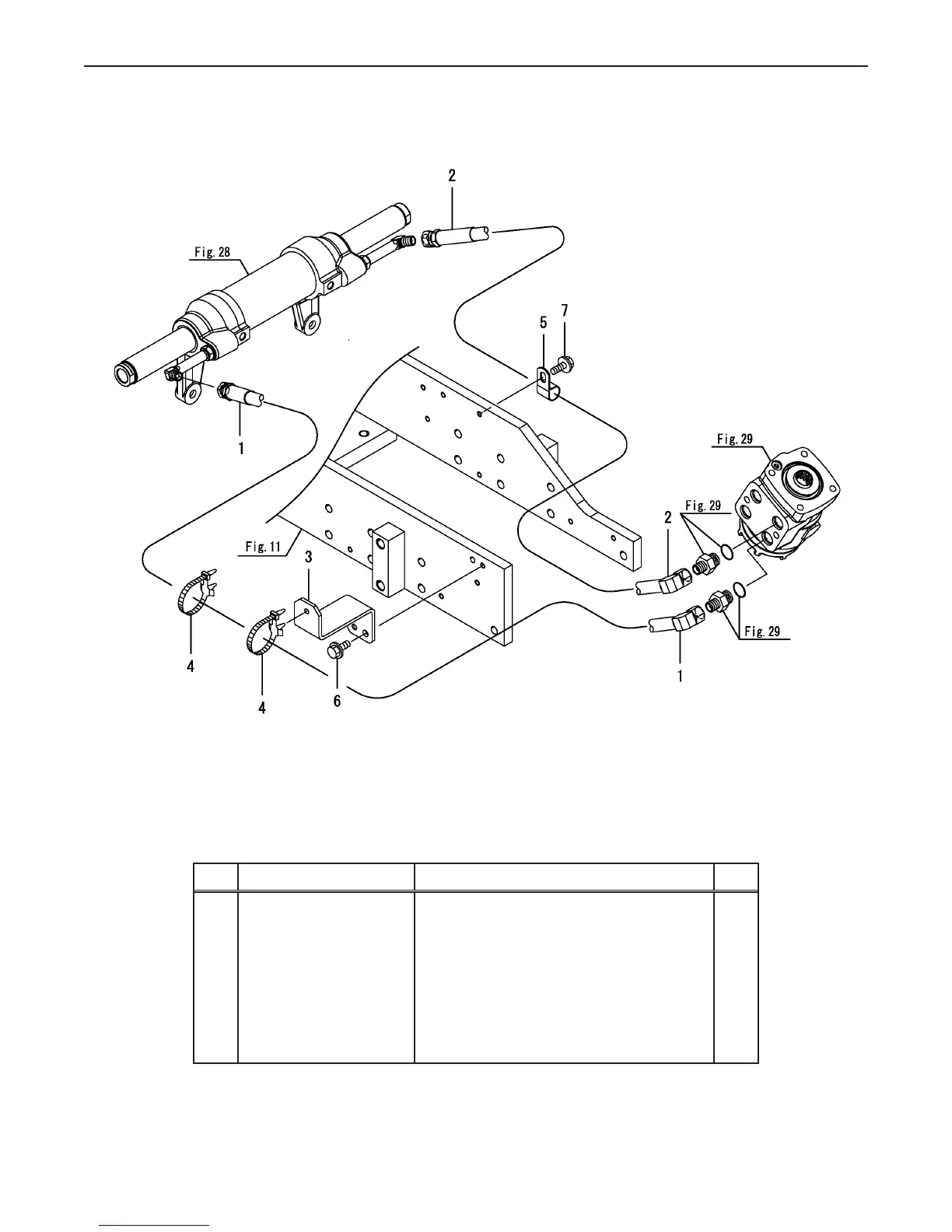

Fig 31. Pst Hose
Ref.
Part Number Description Qty
1 CY-1A8275-17870 HOSE,CYLINDER 1
2 CY-1A8275-17880 HOSE,CYLINDER 1
3 CY-1A8240-17950 SUPPORT, HOSE 1
4 CY-194680-51670 BAND 2
5 CY-1E6213-83410 CLIP 18,HARNESS 1
6 CY-26106-080162 BOLT M 8X 16 PLATED 1
7 CY-26106-080162 BOLT M 8X 16 PLATED 1
Fig.31. PST HOSE
0CNP5-G37900
0CNP5-G37900
31. PST HOSE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
HOSE,CYLINDER1A8275-1787011 111
HOSE,CYLINDER1A8275-1788012 111
SUPPORT, HOSE1A8240-1795013 111
BAND194680-5167014 222
CLIP 18,HARNESS1E6213-8341015 111
BOLT M 8X 16 PLATED26106-08016216 111
BOLT M 8X 16 PLATED26106-08016217 111
(C)Copy Rights YANMAR CO.,LTD.
