Controls and Features
4
11
Deck Lift Pedal
The deck lift pedal is located on the right front corner of the foot
platform, and is used to raise and lower the mower deck.
To raise the mowing deck to the transport position, push the
upper part of the pedal all the way forward and place the clevis
pin in furthest hole from you and secure with the cotter pin.
To lower the deck, remove the clevis pin and reinsert it in the
desired cutting height and secure with cotter pin.
RH and LH Drive Control Levers
space to permit the operator to either sit in the tractor seat, or to
dismount the tractor. The levers must be fully opened out and in
the neutral position and locked to start the tractor engine.
Consequently, these levers control all of the movements of the
tractor. Driving and steering utilizing these control levers is
quite different from conventional tractors, and will take some
the control levers.
NOTE:
position on the tractor when facing forward while seated in the
Deck Height Index
The deck height index consists of several holes located on the
front/right of the foot platform. Each hole corresponds to a ⁄
at the lowest
FA
BRAKE
OFF
CHOKE ON
START
NEUTRAL
W A R N I N G
W A R N I N G
ON
Parking Brake
Deck Height
Index
Deck Lift
Pedal
RH Drive
Control Lever
LH Drive
Control Lever
Hour Meter
Fuel Tank
Ignition Switch
PTO Switch
Throttle Control
Choke Control
Fuel Shut-Off Valve

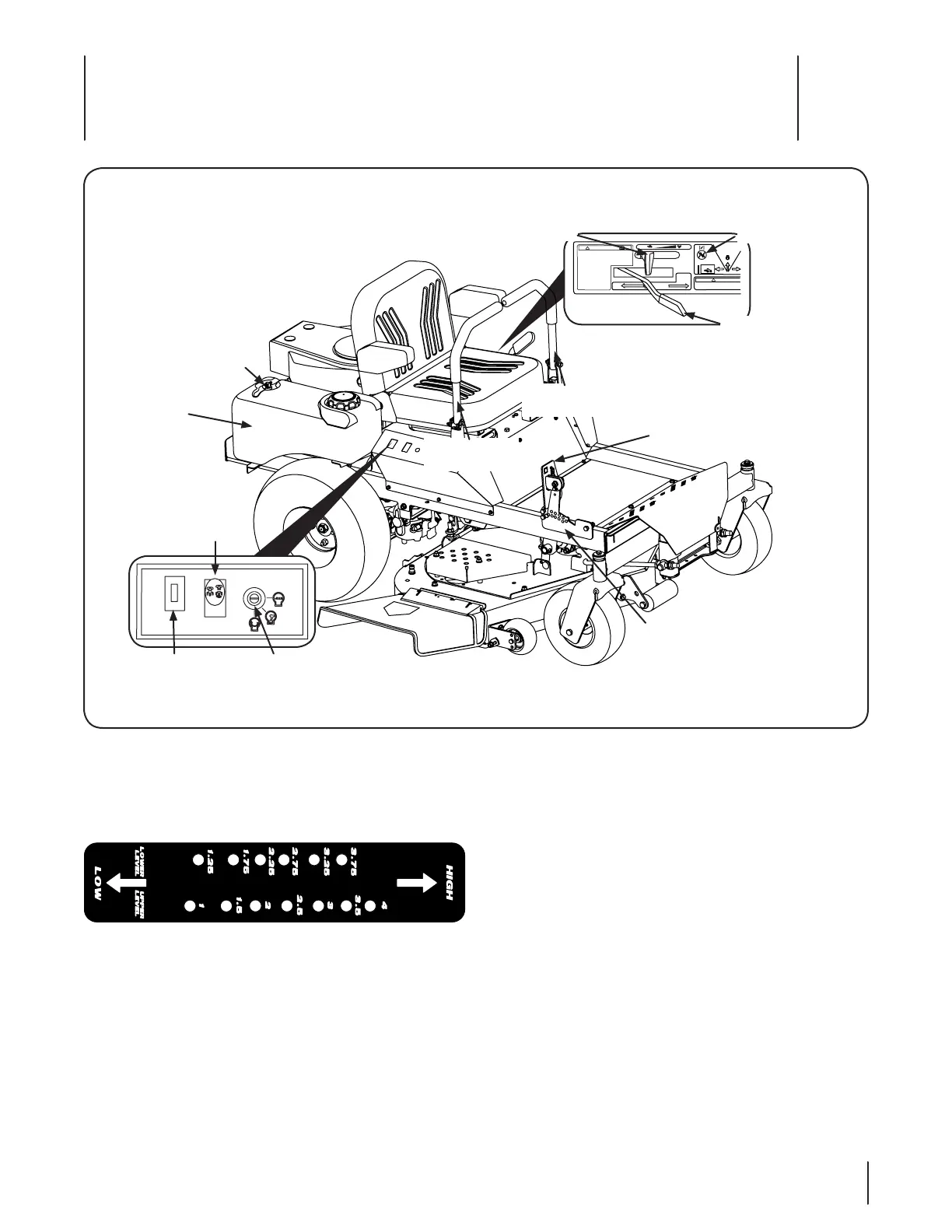

Figure 4-1
