10 Section 3 — ASSembly & Set-Up
Position Drive Control levers
The drive control levers of the tractor are lowered for shipping
purposes. The levers must be repositioned to operate the tractor.
To reposition the control levers for operation, proceed as follows:
 Loosen the control lever knobs on the side of the drive

2
2
1

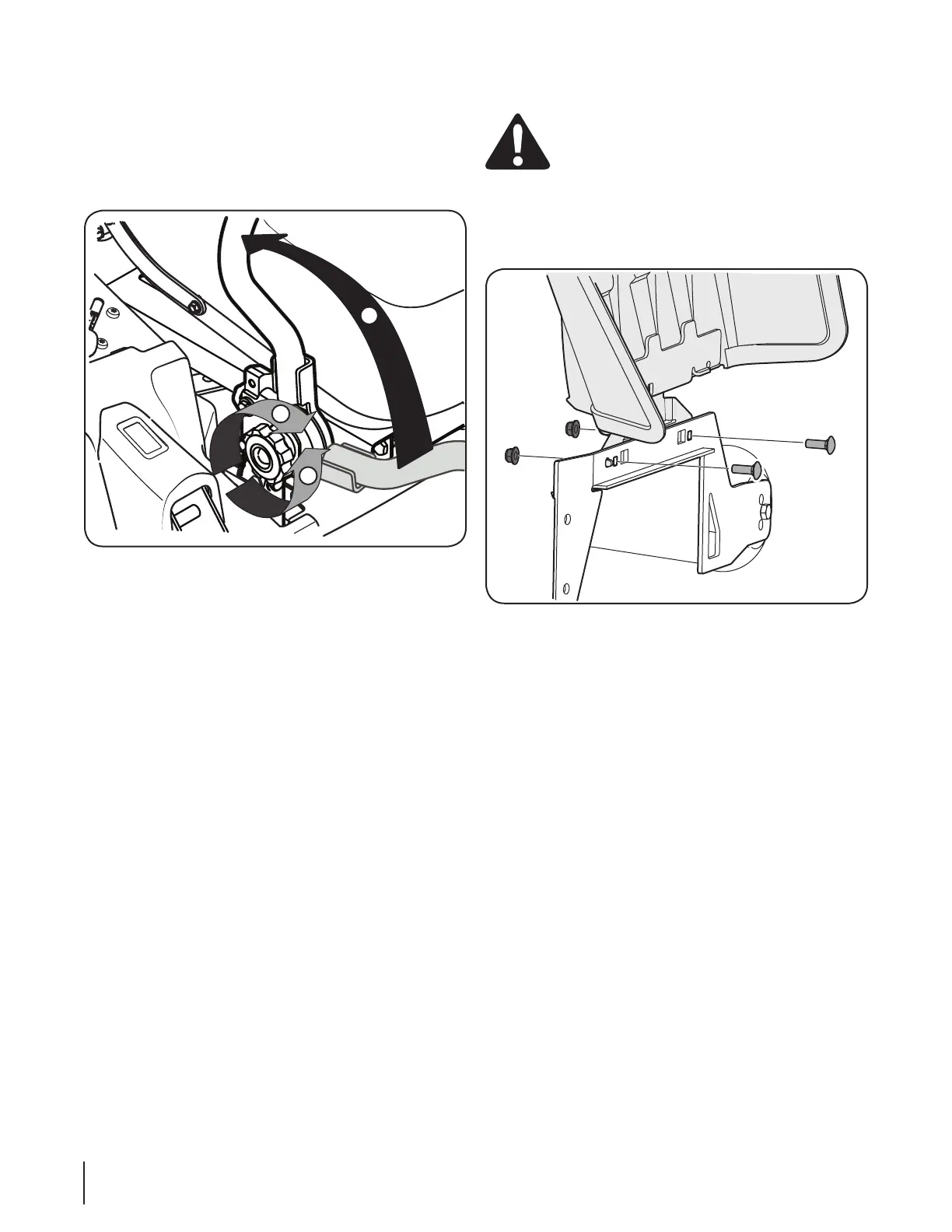

Figure 3-4
2. Lift and swing that control lever upward into the desired
position and secure in place by tightening the control lever

 Note the relative position of the control lever to the pivot
bracket, then repeat the previous steps to reposition the
other control lever in approximately the same position.
4. 
Maintenance & Adjustments for instructions for the final
adjustment of the levers.
Lower Deck Discharge Chute Deflector
WARNING! Never operate the mower deck
without the chute deflector installed and in the
down position.
The discharge chute deflector must be installed before operating
the mower. To install the chute deflector, proceed as follows:
 Remove the carriage screws and flange lock nuts installed

Figure 3-5
2. With the previously removed hardware, install the chute

