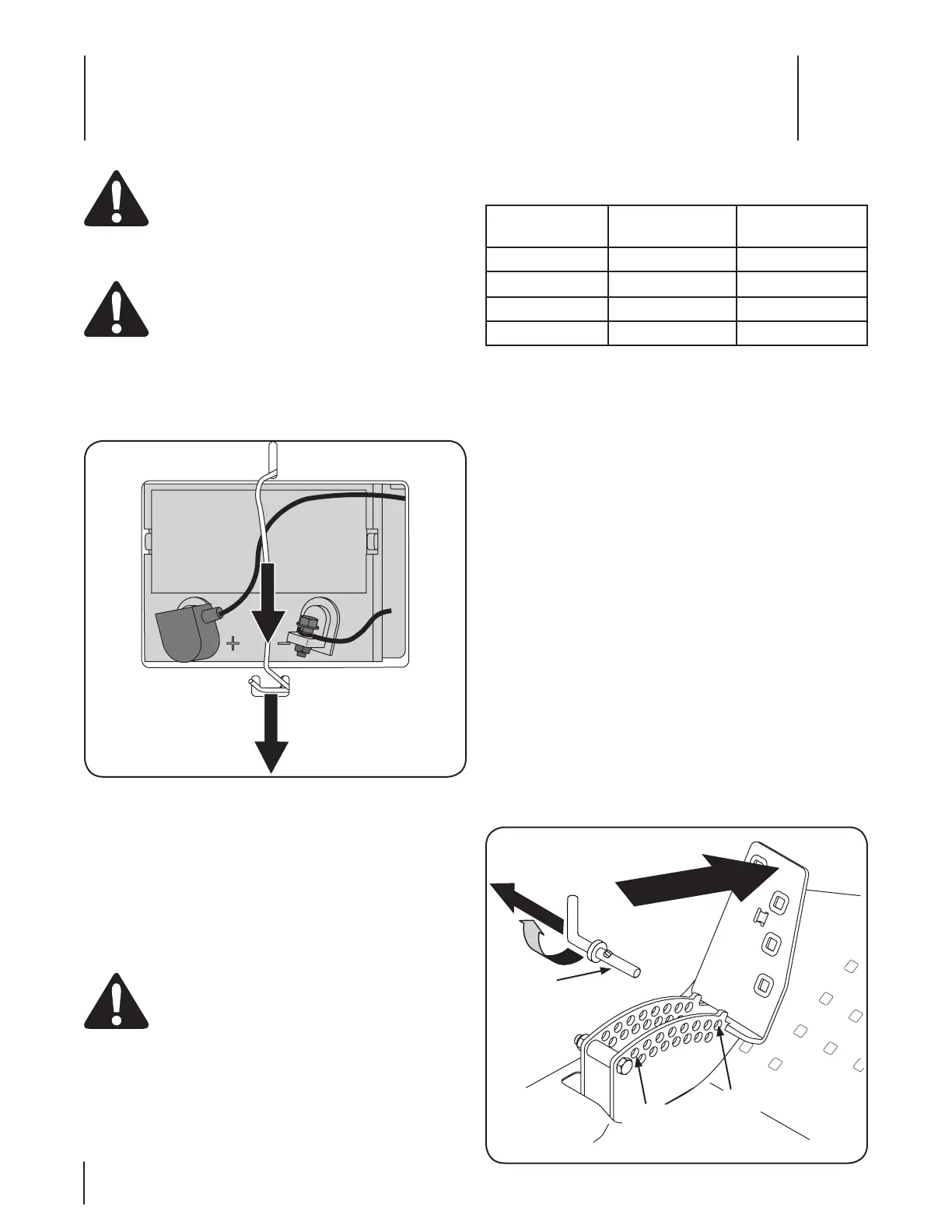

Battery Removal
WARNING! 
accessories contain lead and lead compounds. Wash
hands after handling.
The battery is located beneath the seat frame. To remove the battery:


Remove the hex cap screw and sems nut securing the black 2.
negative battery lead to the negative battery post (marked
NEG). Move the cable away from the negative battery post.
Remove the hex cap screw and sems nut securing the red 

Carefully lift the battery out of the tractor.4.
Install the battery by repeating the above steps in the 5.
reverse order.
WARNING! Always connect the positive lead to the
battery before connecting the negative lead. This
will prevent sparking or possible injury from an
electrical short caused by contacting the tractor
body with tools being used to connect the cables.
Charging the Battery
Test and, if necessary, recharge the battery after the tractor has
been stored for a period of time.




Servicing Electrical System

damage caused by excessive amperage. Always use the same
capacity fuse for replacement. If the electrical system does not
function, check for a blown fuse.


Relays and Switches
There are several safety switches in the electrical system. If a
function of the safety interlock system described earlier is not
functioning properly, have the electrical system checked by your

Deck Removal
Remove the mower deck from the tractor as follows:

the engine, and set the parking brake.
2.
replace the lock pin in front of pedal in the deck height

Voltmeter
Reading
State of
Charge
Charging
Time
  Full Charge
  
   
  
Figure 7-1
Figure 7-2
Lowest
Mowing
Position
Highest
Mowing
Position
Lock Rod
Figure 7-3
