Section 6— Maintenance & adjuStMentS
Rear Deck Rollers
The rear deck rollers can be placed in two positions. To change
proceed as follows:
Lower Hex
Screw
Upper Hex Screw
Upper Flange Lock Nut

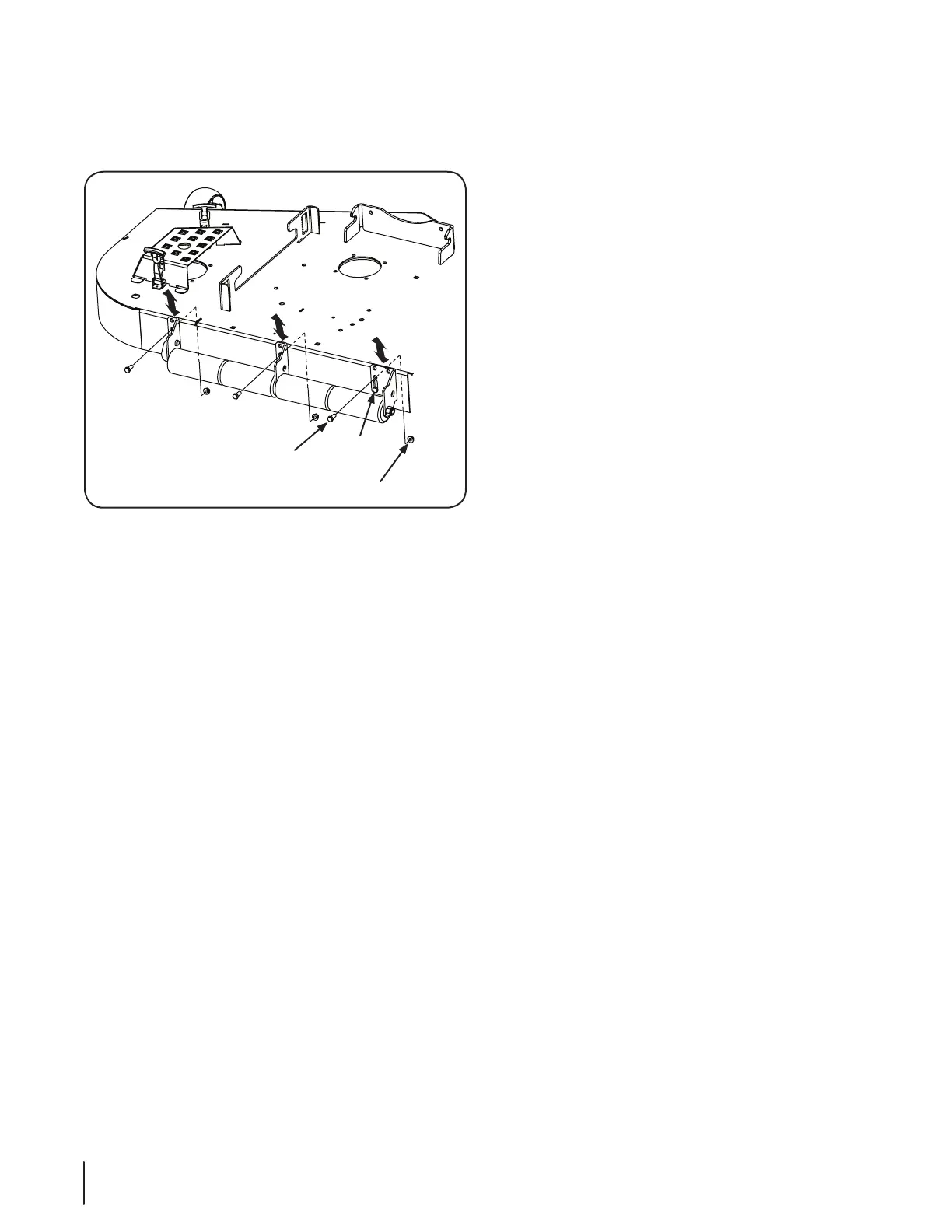

Figure 6-9
Loosen — but do not remove — the lower hex screws and
lower flange lock nuts on all three brackets securing the
rollers to the deck.
NOTE: The brackets are slotted on the lower half of the
bracket to allow the deck rollers to be moved up and down.
2. Remove the upper hex screws and upper flange lock nuts
from the brackets and the deck.
NOTE: In the highest position the upper hex screws and
flange lock nuts are in the hole directly above the slots, in
the lowest position the upper hex screws and flange lock
nuts are in the uppermost hole.
Move the brackets into the desired position and re-install,
but do not tighten the upper hex screws and flange lock
nuts through brackets and the deck.
4. Tighten the lower hex screws and flange lock nuts and then
tighten the lower hex screws and flange lock nuts.
Parking Brake Adjustment
If the tractor does not come to a complete stop when the brake
roll with the parking brake applied (and the hydrostatic relief
valve open), the brake is in need of adjustment. See your Cub
Cadet dealer to have the brake properly adjusted.
