COM5000-8 TECHNICAL MANUAL
29
Combiner
Control
Front Panel
Meters
RF OUT
(4)
Power Power
Supply
Module
RF IN
Front
Panel
AC Line +5V, +/-12V

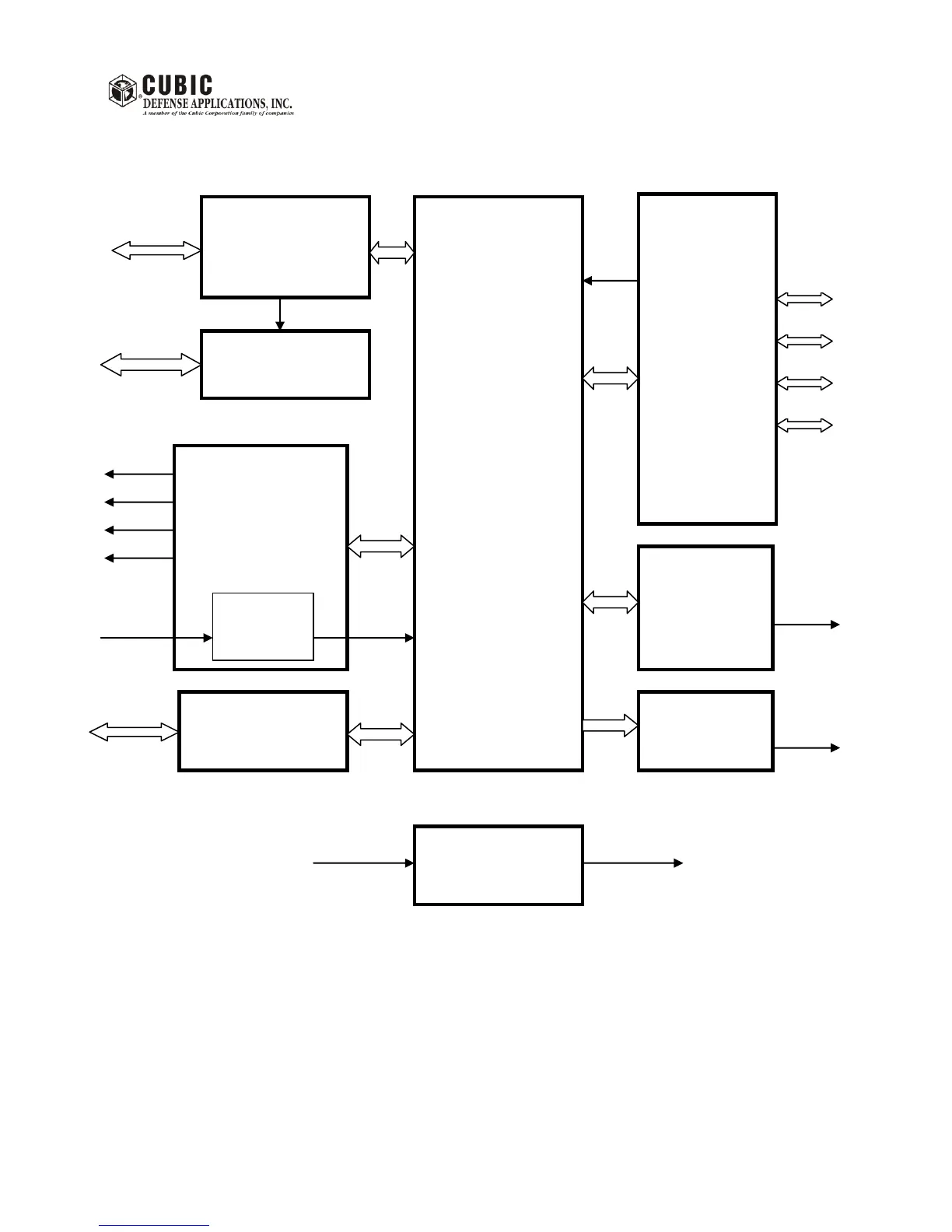

Figure 4.5. System Controller Block Diagram
Combiner module
control and
monitoring
circuitry
Meter driver
circuitry
Serial
communication
circuitry
Driver/Splitter/ALC
PCB assembly
Microprocessor
controlled
Fault sensing,
control and
multiplexing
circuitry
PA module
control and
monitoring
circuitry
Power Supply
module
control and
monitoring
circuitry
Front Panel
LED drivers
System Controller
power supply
Input level
detection
circuitry
#1
#2
#3
#4
