Cuisinart CCG-290 - Illustrated Parts List and Exploded View; Hardware Identification; Grill Component Identification

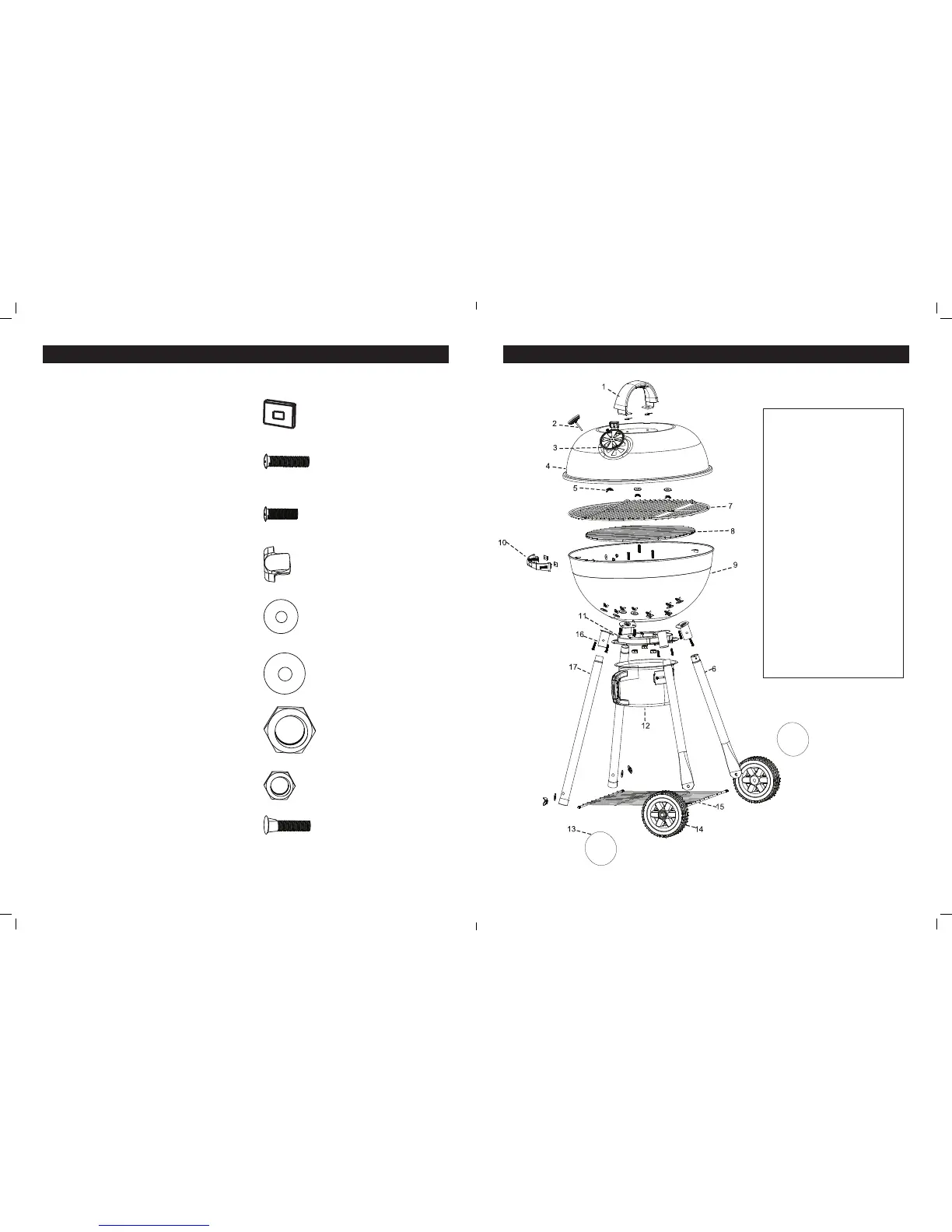

2. Illustrated Parts List and Exploded View
North American Distributor: The Fulham Group, Newton, MA 02466
4
5
A 23 x23
B M6 x 12
C M5 x 10
D M6
E 6 x 12
F 6 x 16
G M10
H M5
I M6 x 16
4 pcs
8 pcs
4 pcs
14 pcs
2 pcs
12 pcs
2 pcs
4pcs
4pcs
1. Handle 1 pc
2. Thermometer 1 pc
3. Air Vent 1 pc
4. Lid 1 pc
5. Hardware for
Thermometer 1 pc
6. Short Leg 2 pcs
7. Cooking Grid 1 pc
8. Charcoal Grid 1 pc
9. Firebowl 1 pc
10. Bowl Handle 1 pc
11. Ash Catcher
Connection 1 pc
12. Ash Catcher 1 pc
13. Wheel Cover 2 pcs
14. Wheel 2 pcs
15. Bottom Grid 1 pc
16. Leg Cap 4 pcs
17. Long Leg 2 pcs
