BASE ASSEMBLY
1) Attach on Front Leg (20) and one Rear Leg (21) to the Wheel Base (28) using 3 Flat
Spacers (J), 3 Spring Washers (E) and 3 Bolts (B) per leg. Repeat the same steps with the
Adjustable Foot Base (22).
2) Attach wheels to the Wheel Base (28) using Wheel Axle Bolt (27). Tighten with Flat
Washer (I) and Cap Nut (M).
MOUNTING THE BASE TO THE CHAMBER

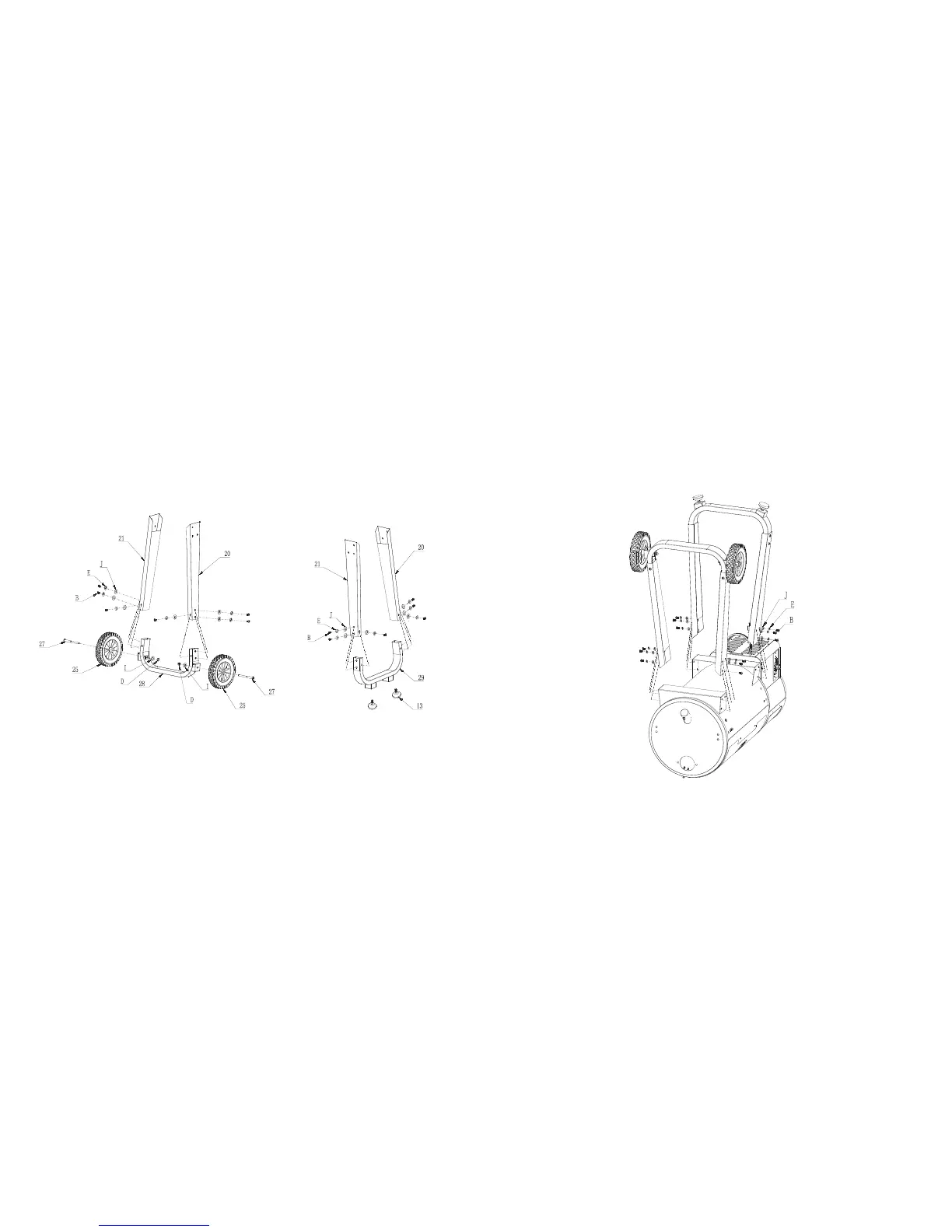

1) On a soft surface, place Grill Chamber (7) on its side or back. Attach the Wheel Base
Assembly, from previous step, on to the Grill Chamber. Attach with 3 Flat Spacer (J),
3 Spring Washers (E), and 3 Bolts (B). Tighten with screwdriver. See Image.
2) Attach the Adjustable Foot Base Assembly to the Grill Chamber with 3 Flat Spacer (J),
3 Spring Washers (E), and 3 Bolts (B). Tighten with screwdriver. See Image.
