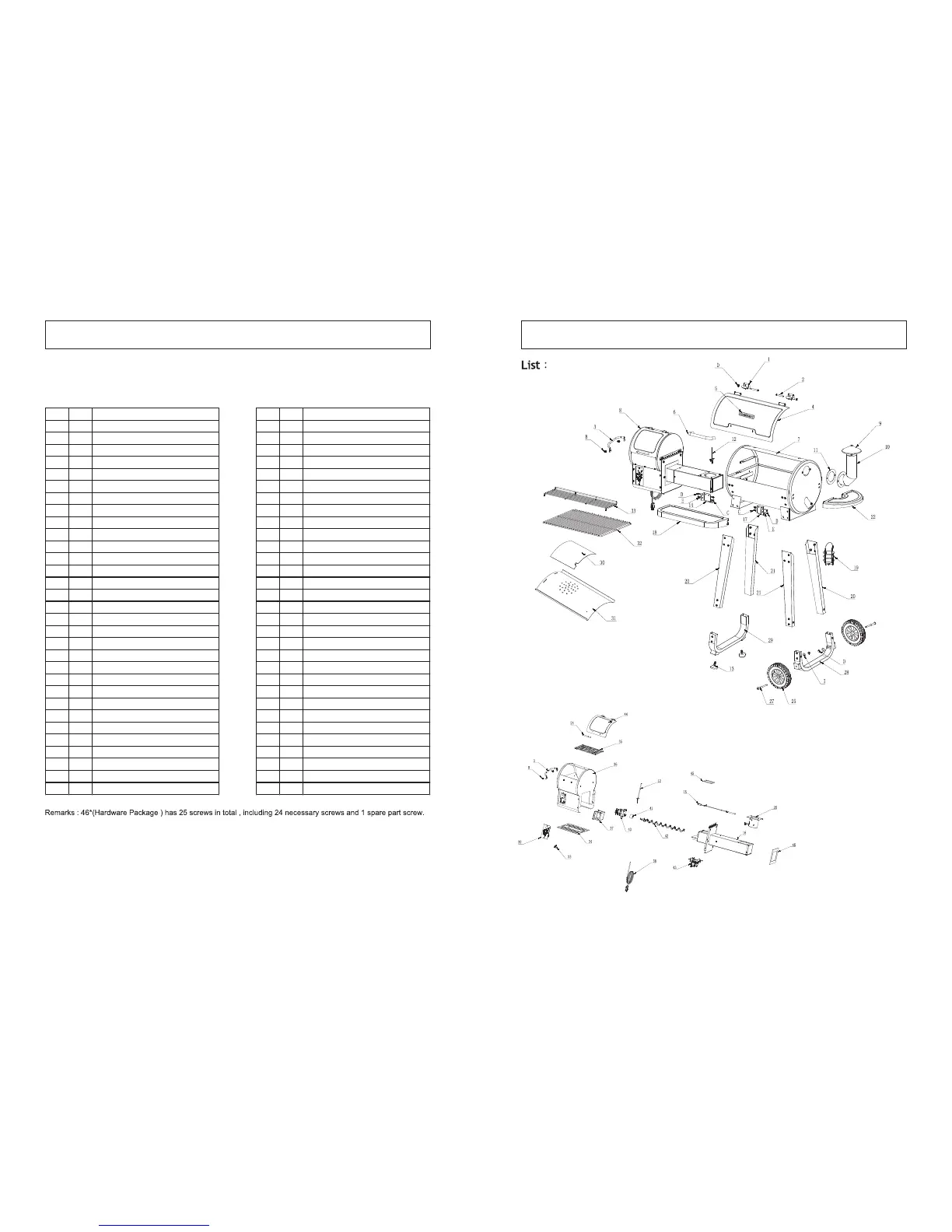

EXPLODED VIEW
COMPONENT LIST
5
4
ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION
1 2 Hinge Assembly
32 1 Cooking Grate
2 2 Hinge Pin 33 1 Warming Rack
3 1 Side Handle 34 1 Hopper Bottom Cover
4 1 Grill Lid 35 1 Hopper Safety Screen
5 1 Name Plate 36 1 Hopper Assembly
6 1 Lid Handle 37 1 Cable Box
7 1 Grill Chamber Assembly
38 1 Power Cord
8 1 Hopper Assembly 39 1 Digital Control W/SDC
9 1 Chimney Cap 40 1 Auger Drive Motor
10 1 Chimney 41 1 Auger Nylon Bushing
11 1 Chimney Gasket 42 1 Auger
12 1 Temperature Sensor 43 1 Fan Motor
13 2 Adjustable Foot 44 1 Hopper Lid
14 1 Front Shelf Left Bracket A 4 Hexagon Bolt
15 1 Hot Rod a space(Ignitor) B 36 Bolt
16 1 Feeder Assembly C 4 Shoulder Screw
17 1 Front Shelf Right Bracket D 4 Cap Nuts (Small)
18 1 Front Shelf E 28 Spring Washers
19 1 Grease Cup Holder F 2 Bolts (Small)
20 2 Front Left / Back Right Leg G 4 Flat Washers
21 2 Front Right / Back Left Leg H 2 Nuts
22 1 Side Shelf I 2 Flat Washers
23 1 Strain Relief Bushing J 24 Flat Spacer
24 1 Hopper Lid Handle M 2 Cap Nuts (Large)
25 2 Wheels 1 Scredriver
26 1 Fire Pot Assembly 2 Wrench
27 2 Wheel Axle Bolt
28 1 Wheel Base
29 1 Adjustable Foot Base
30 1 Flame Slider
31 1 Grease Drain Pan
Hopper/Burner Assembly:
