Page 40 40 Series Granulators
During the movement of the bed knife, slowly rotate
the rotor back and forth checking the clearance. The
proper clearance will be established across the length of
the knife when a slight “drag” is felt on the feeler
gauge. Partially tighten the bed knife hex head screws.
Follow this procedure for all remaining bed knives.
3. If you find a “high” rotor knife, mark it and adjust to
this knife.
4. Once knife adjustments are completed, equally and
fully torque the bed knife cap screws, working from the
center out towards the ends of the knife. Refer to
Section 9-10 for the correct torque values based upon
bolt size and thread pitch.
5. Re-check the clearance once the bolts have been fully
torqued and reset if necessary.
6. Turn the rotor so that the knives are aligned with a
secondary bed knife on the rear of the granulator and
continue with the same procedure used to setup the
primary bed knife.
7. After the clearance setting of both the primary and
secondary bed knives is complete and checked, turn the
rotor by hand to ensure that none of the rotor knives hit
the bed knives.

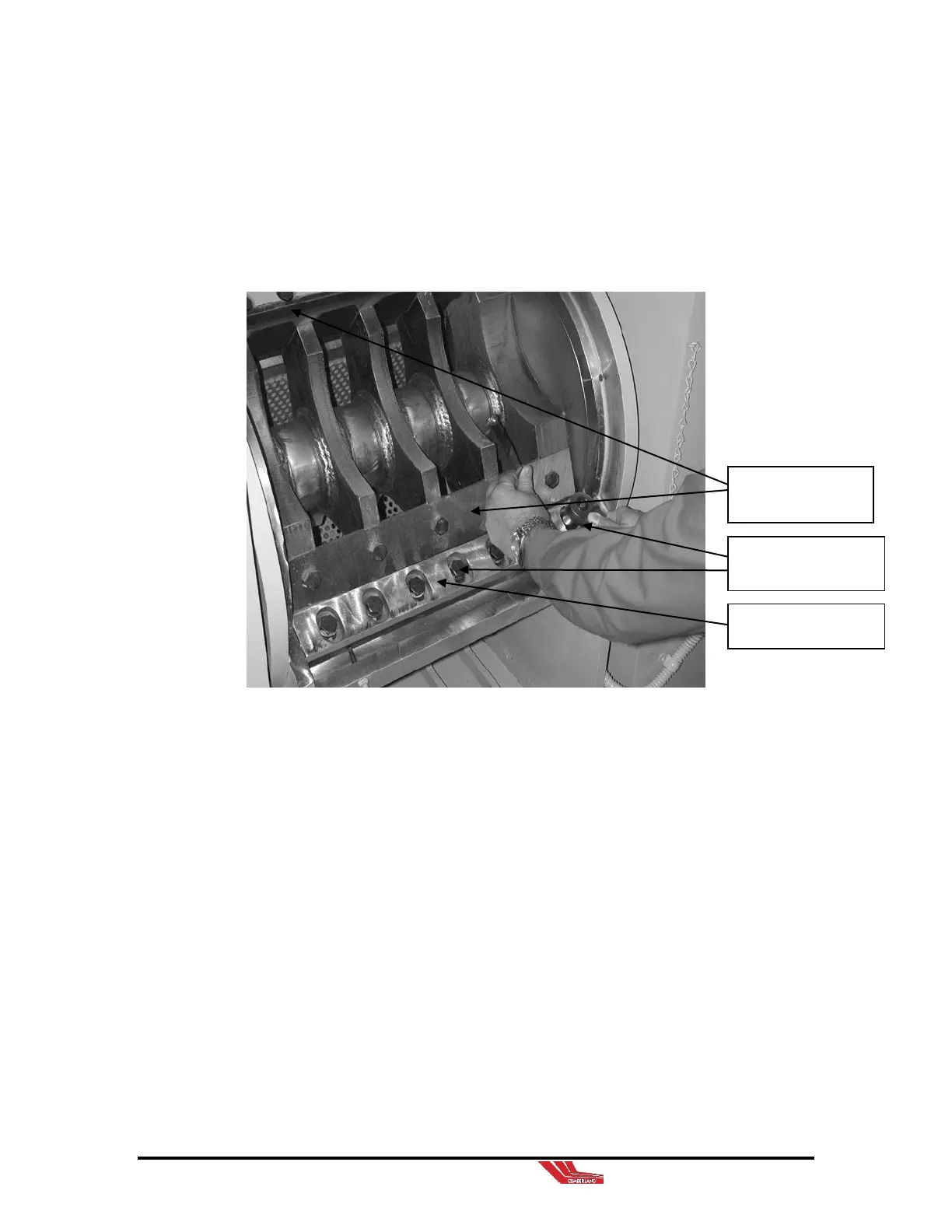

Adjusting screws (in
metric)
