3. Wiring Diagrams

PNEG-1186 Smart-Flex (FLX-4629) Operation Instructions 17

Extension Mode

The Smart-Flex can be configured without the proximity sensor to control the Flex-Flo fill auger of an

extension system. To use in extension mode without the proximity sensor, add a jumper wire connected

to the terminals in the lid marked “Sensor +V” and “Ext. Mode”. (See Figure 3D.) In this configuration, the

pressure switch will operate without setting off or sounding the alarm.

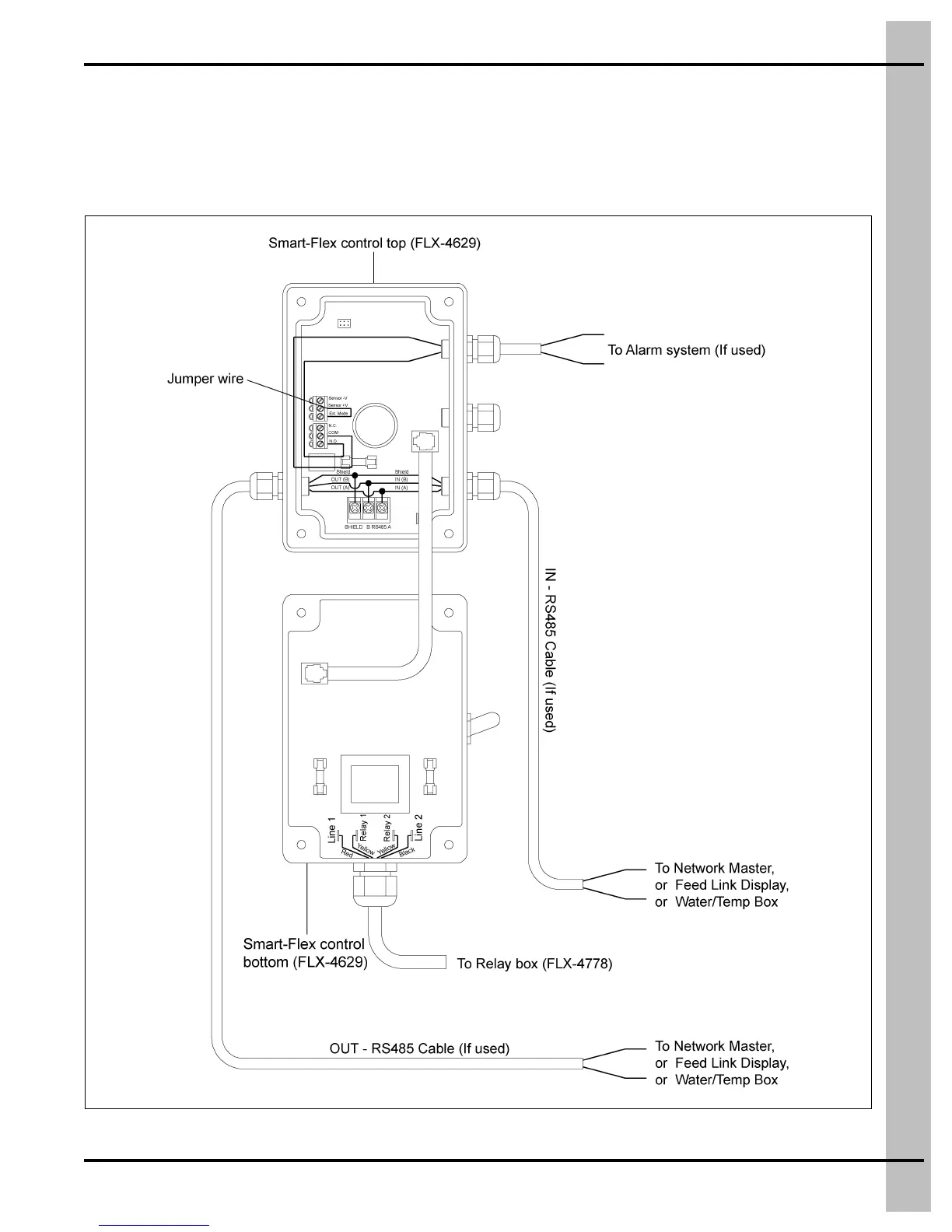

Figure 3D Wiring Diagram for Extension Mode
