Cuppon CSD 150 User Manual

12 13
OPERATING FUNCTIONS
CURTAIN PHOTOCELL MICROWAVE RADAR:
For safety purposes, this system triggers the door by detecting any obstacle found
between the doors and any movement which may be seen during passage on the door
mechanism.
CLOSE-OPEN
POSITION SWITCH
SUPPLY
ENDS
COMMON
NORMALLY OPEN
NORMALLY CLOSED
AC/DC
12-24V
RED BLACK WHITE YELLOW GREEN
PHOTOCELL
TRANSMITTER

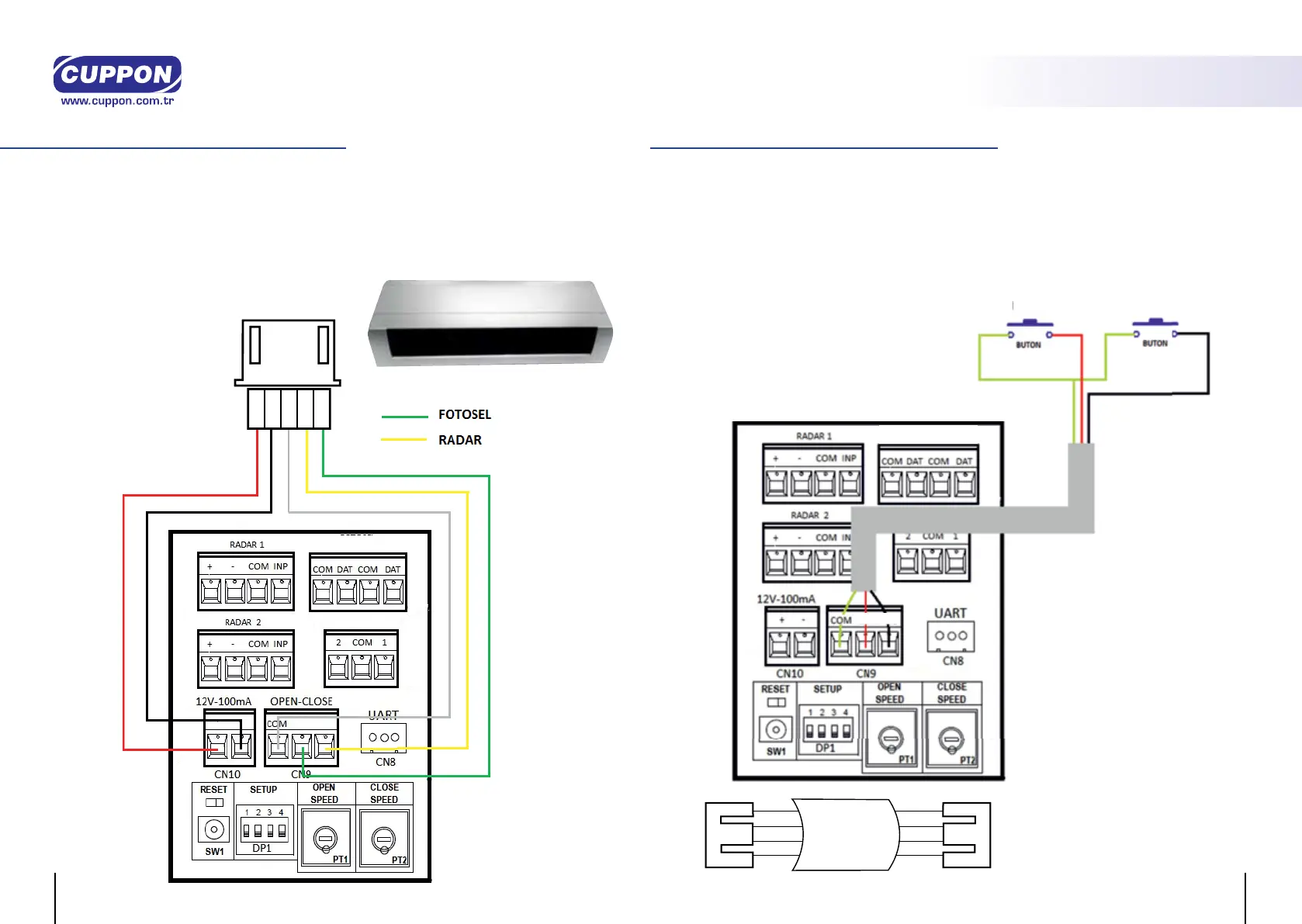

OPERATING FUNCTIONS
Open / Close
Door opening or door closing movements can be performed by Open/Close Inputs with
normally open button (no contact). When “Open” input is triggered, the door moves to
the opening direction; when the waiting time elapsed, the door closes to the closing
direction. When “Close1 input is triggered, if the door is open, then the door closes
without any waiting time.
NORMALLY OPEN BUTTON
PHOTOCELL
TRANSMITTER
CLOSE-OPEN
CLOSE
CLOSE
OPEN
OPEN
COMMON
EXTERNAL RADAR
Green
Red
Black
Black
Red
Green
White
Open/ Close Cable:
Triple 1m length
Black : OPEN
Red : CLOSE
Green : COM (COMMON)
CSD 150
AUTOMATIC SLIDING
