Cuppon CSD 150 User Manual

10 11
OPERATING FUNCTIONS

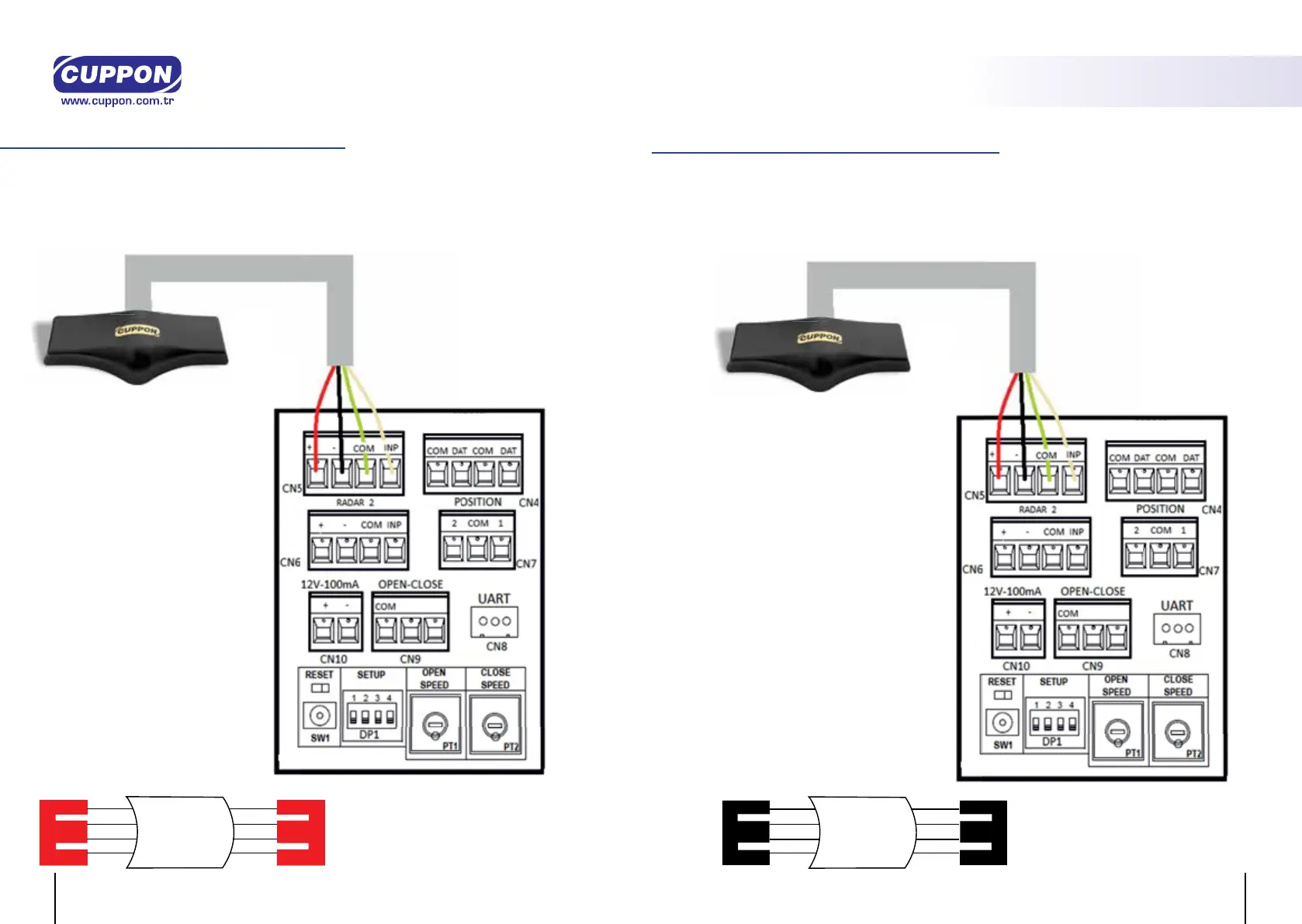

RADAR 1 (Internal Radar)
This is the radar for detecting any movement around the interior of the door mechanism.
When the internal radar detects the object and becomes active, the “Internal Radar” Led
on microprocessor unit illuminates, the door becomes active, and moves to the opening
direction.
INTERNAL RADAR
INTERNAL RADAR
White
Green
Red
Black
Black
Red
Green
White
Internal Radar Cable:
Quad cable with 1.5 m length / red socket
External Radar
Black : - (Minus) Green : COM
(COMMON)
PHOTOCELL
TRANSMITTER RECEIVER
CLOSE-OPEN
EXTERNAL RADAR
EXTERNAL RADAR
White
Green
Red
Black
Black
Red
Green
White
External Radar Cable:
Quad cable with 1.5 m length / black socket
External Radar
Black : - (Minus) Green : COM (COMMON)
Red : + (Plus) White : INP (INPUT)
PHOTOCELL
TRANSMITTER
CLOSE-OPEN
OPERATING FUNCTIONS
RADAR 2 (External Radar)
This is the radar for detecting movement around the exterior of the door mechanism.
When the exterior radar detects the object and becomes active, the “Internal Radar” Led
on microprocessor unit illuminates, the door becomes active, and moves to the opening
direction.
CSD 150
AUTOMATIC SLIDING
