14 15

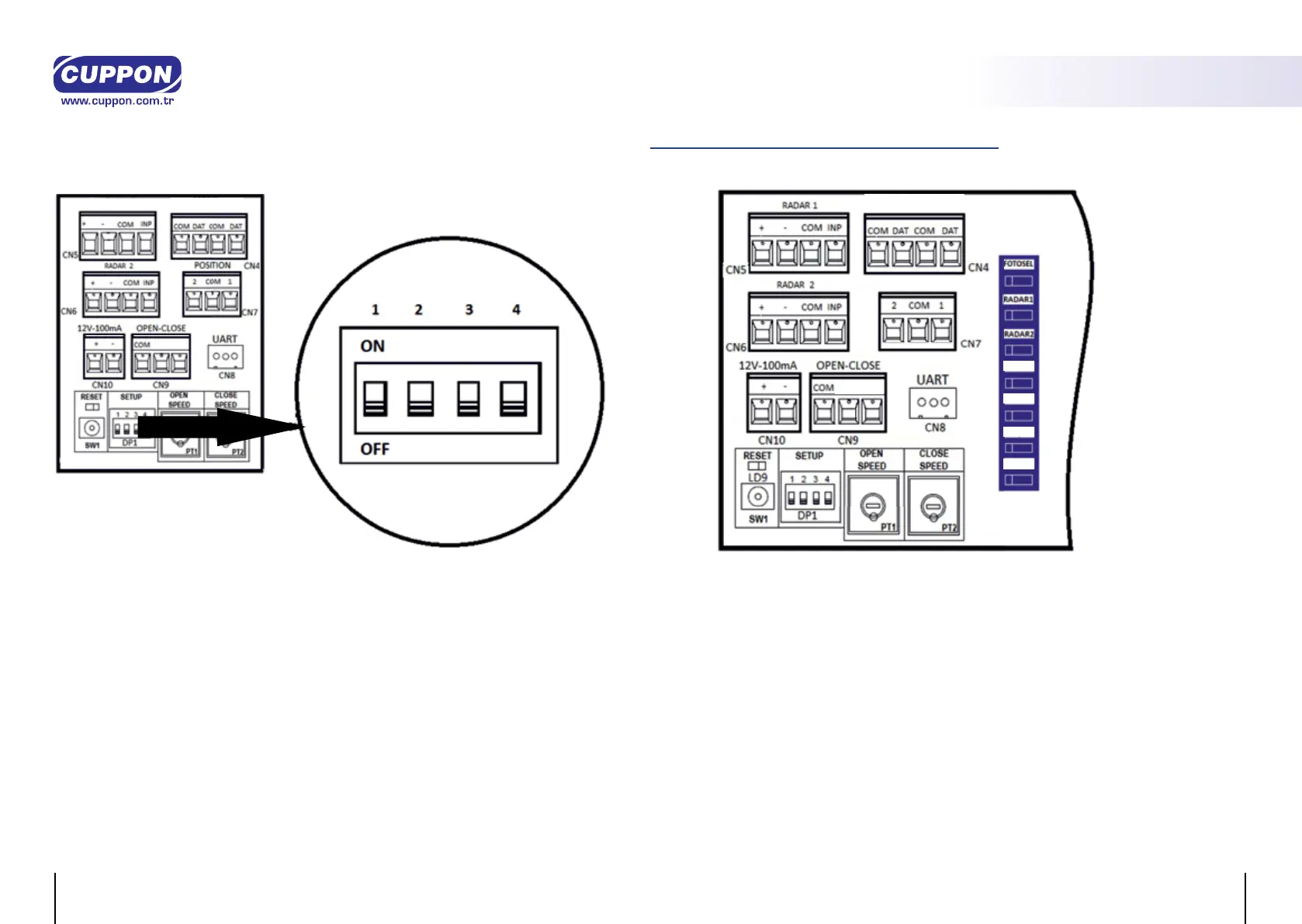

DIP SWITCH SETTINGS
1- SAFETY PHOTOCELL
OFF: Safety photocell closed
ON : Safety photocell open
2-CLOSING TIME
OFF: It waits 3sec after door opens, and then closes
ON : It waits 5sec after door opens, and then closes
3-CRUSHING
OFF: It performs continuous crushing test during crushing
ON : It performs crushing test once during crushing
4-MOTOR
OFF: Motor lock closed
ON: Motor lock opened
PHOTOCELL
TRANSMITTER
CLOSE-OPEN
INSTALLATION SETTINGS
INSTALLATION : After making socket connections of CSD-150 card, when it is rst
energized, LD9 led ashes. If the led ashes, this means that the card isn’t installed. In
order to start installation, please hold down RESET button for 3sec. LD9 will illuminate
continuously during installation. When the installation is successfully completed, the led
goes off.
RESETTING: When there is no energy, the system will reset if RESET button is kept
pressed, and the system energized. When reset is successfully completed, the LD9 led
ashes.
OPENING SPEED: The opening speed of the door can be set.
CLOSING SPEED: The closing speed of the door can be set.
PHOTOCELL
TRANSMITTER
CLOSE-OPEN
POSITION SWITCH
POSITION 1
POSITION 2
OPEN
CLOSE
CSD 150
AUTOMATIC SLIDING
