17
Electrical Connection
Your cooker is designed to operate on an electricity supply which conforms to the electrical data shown on
the Rating Plate. The cooker can be connected to the mains only after you complete the connections in the
terminal box.
The following installation procedure must be carried out by a competent person. If in doubt consult a
qualied electrician. The electrical installation must comply with local regulations and By Laws.
How your cooker is supplied 230V~ 50Hz
* All images are for indication only; please refer to your individual unit for actual item.
• The power supply cable must have these minimum requirements:
– Type: H05VV-F (PVC insulated and sheathed exible cable)
– 3 cores x 4 mm
2
minimum.
This appliance must be earthed.
• The cooker must be connected to the mains supply with a switched (double pole) cooker outlet providing
full disconnection correctly fused with a capacity appropriate to that shown on the cooker Rating Plate
and incorporated in the xed wiring in accordance with the latest wiring regulations. All electrical wiring
from the consumer unit to the cooker, via the switched double pole cooker outlet, must be of the
correct rating.
• The supply cable must be positioned away from any hot parts of the rear of the cooker. If this cannot
be done then another method of protecting the supply cable from the hot parts must be used
i.e. Heat resistant sleeving or high temperature cables.

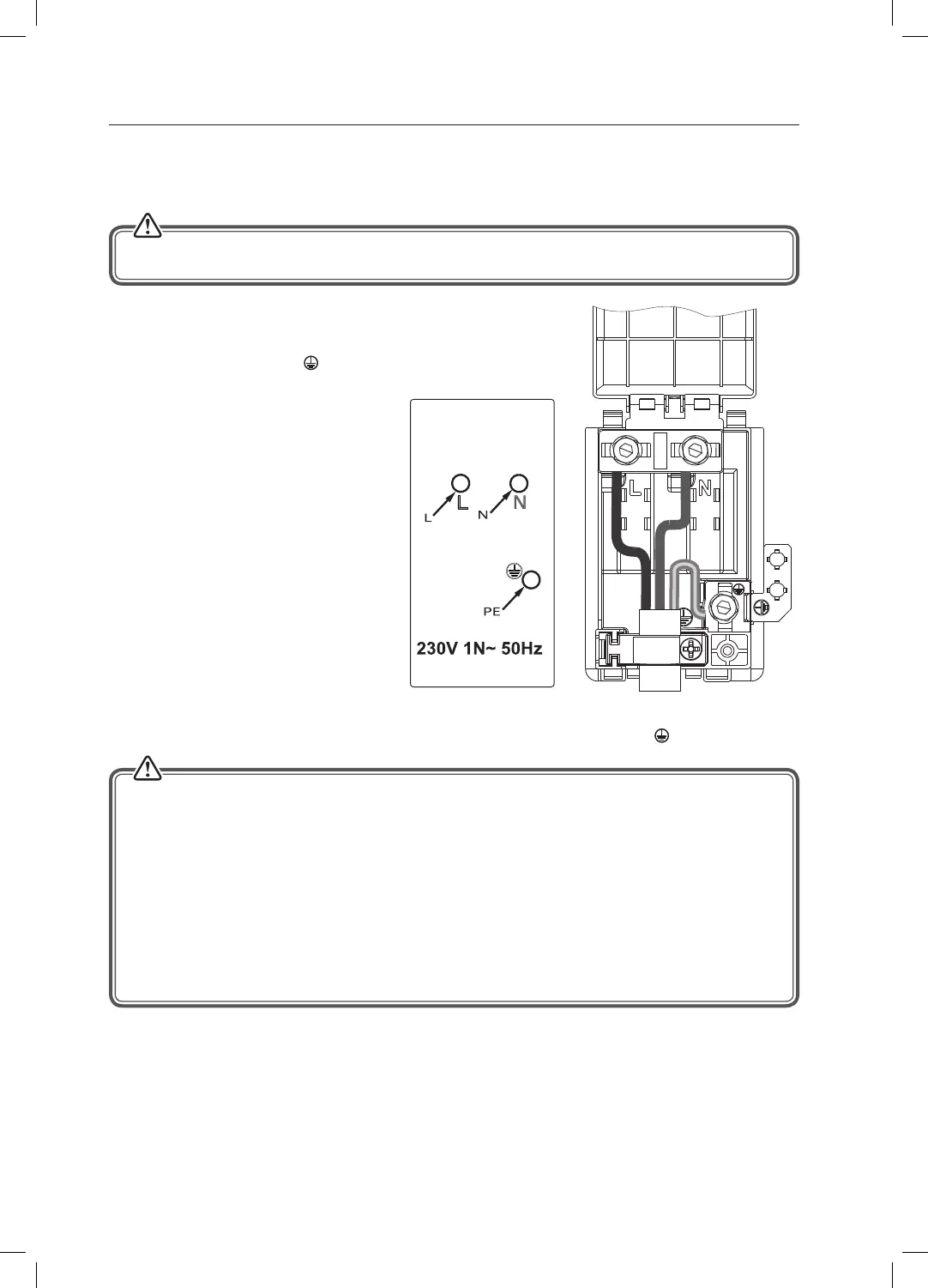

This appliance must be earthed
Green / Yellow (Earth) to the PE (
) terminal
Brown (Live) wire to the terminal marked L
Blue (Neutral) wire to the terminal marked N
Ensure the cable exits through the cable grip
clamping on the outer sheath of the cable
and x in place by tightening the xing screw.
Ensure all screws are adequately tightened.
Do not over tighten as you may risk damaging
the screw threads.
Minimum cable
H05VV- F4 mm
2
8061424
Minimum cable
H05VV- F4 mm
2
8061424
Grounding lead must be connected
to screw with symbol.
CFSEWH14/SV14_IB.indd 17 31/03/2015 15:54
