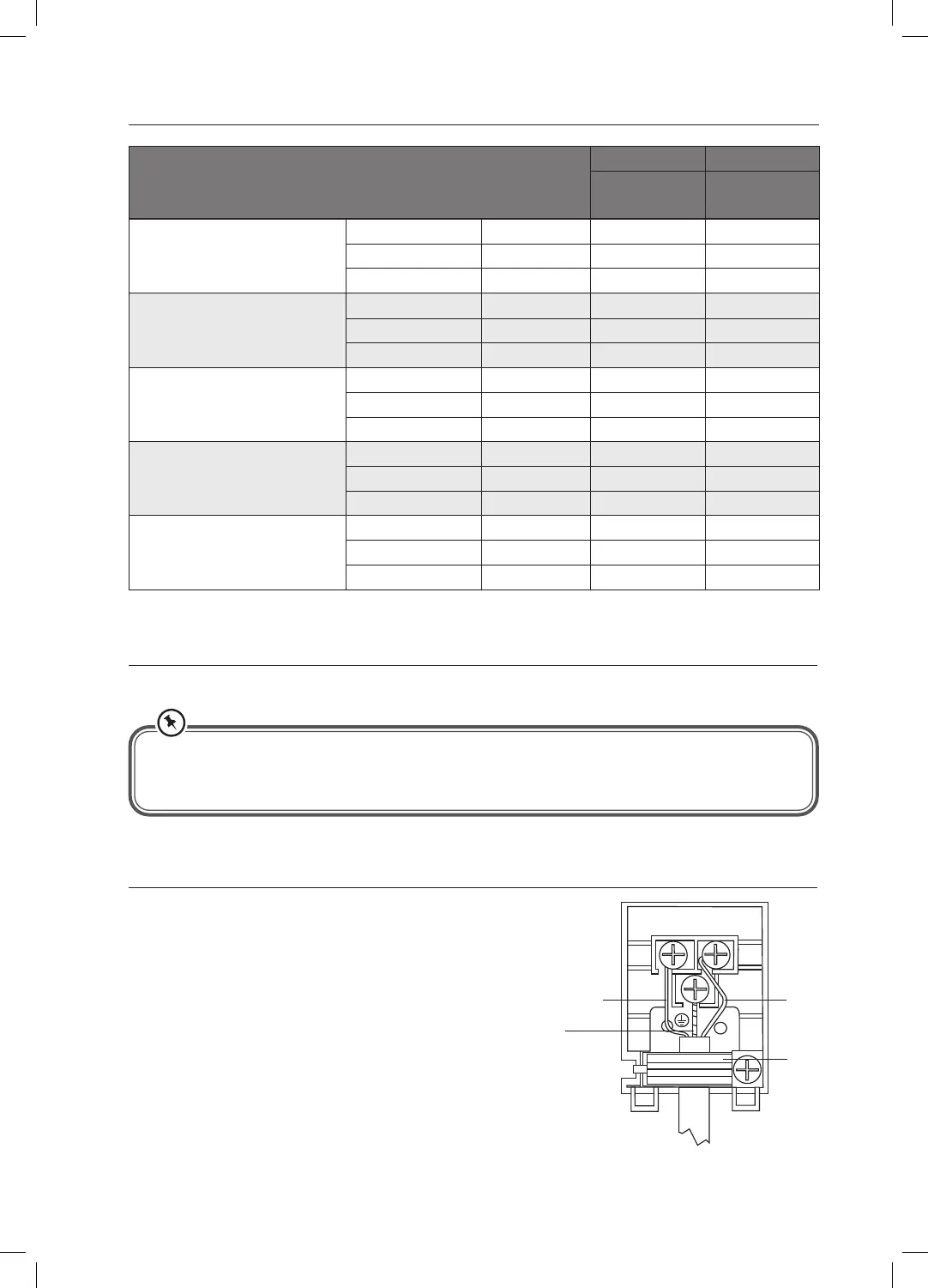

Injector Size Table
Burner Injector Values (Total consumption 981 lt/h)
According to the Gas Type (Total Power 10.3 kW)
LPG Natural Gas
G30 / G31
28-30 mBar
G 20
20 mBar
Large Burner (Fast)
Injector mm 0.850 1.150
Nominal Rating kW 3 2.9
Consumption 218.1 gr/h 276.0 lt/h
Standard Burner
Injector mm 0.650 0.970
Nominal Rating kW 1.75 1.75
Consumption 127.2 gr/h 166.7 lt/h
Small Burner (Simmer)
Injector mm 0.500 0.720
Nominal Rating kW 1 1
Consumption 72.7 gr/h 95.2 lt/h
Oven Burner
Injector mm 0.760 1.200
Nominal Rating kW 2.8 2.8
Consumption 203.6 gr/h 266.7 lt/h
Grill Burner
Injector mm 0.680 1.100
Nominal Rating kW 2.2 2.2
Consumption 160 gr/h 209.5 lt/h
Lubrication of the Gas Taps
A Gas Safe Registered Engineer must lubricate the gas taps.
Electrical Connection
• This cooker is tted with a BS1363 moulded plug. The mains plug
must remain accessible when the cooker is in its place of use.
• If the installation requires any alterations to the domestic electric
system, this must be performed by a qualied electrician.
• The mains cable should be routed away from any hot parts.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons
in order to avoid a hazard. Ensure that the Earth lead is of
sucient length to remain connected after the Live and
Neutral wires are removed if the lead is pulled.
• Ensure all terminal screws are adequately tightened. Do not
over tighten as you may risk damaging the screw threads.
L
N
Live (Brown)
Earth
(Green/Yellow)
Neutral (Blue)
Cord Clamp
* All images are for indication only; please refer to your individual unit for actual item.
• All intervention regarding installation maintenance and conversion of the appliance must be fullled
with original factory parts.
• The manufacturer declines any liability if these correct parts are not used.
