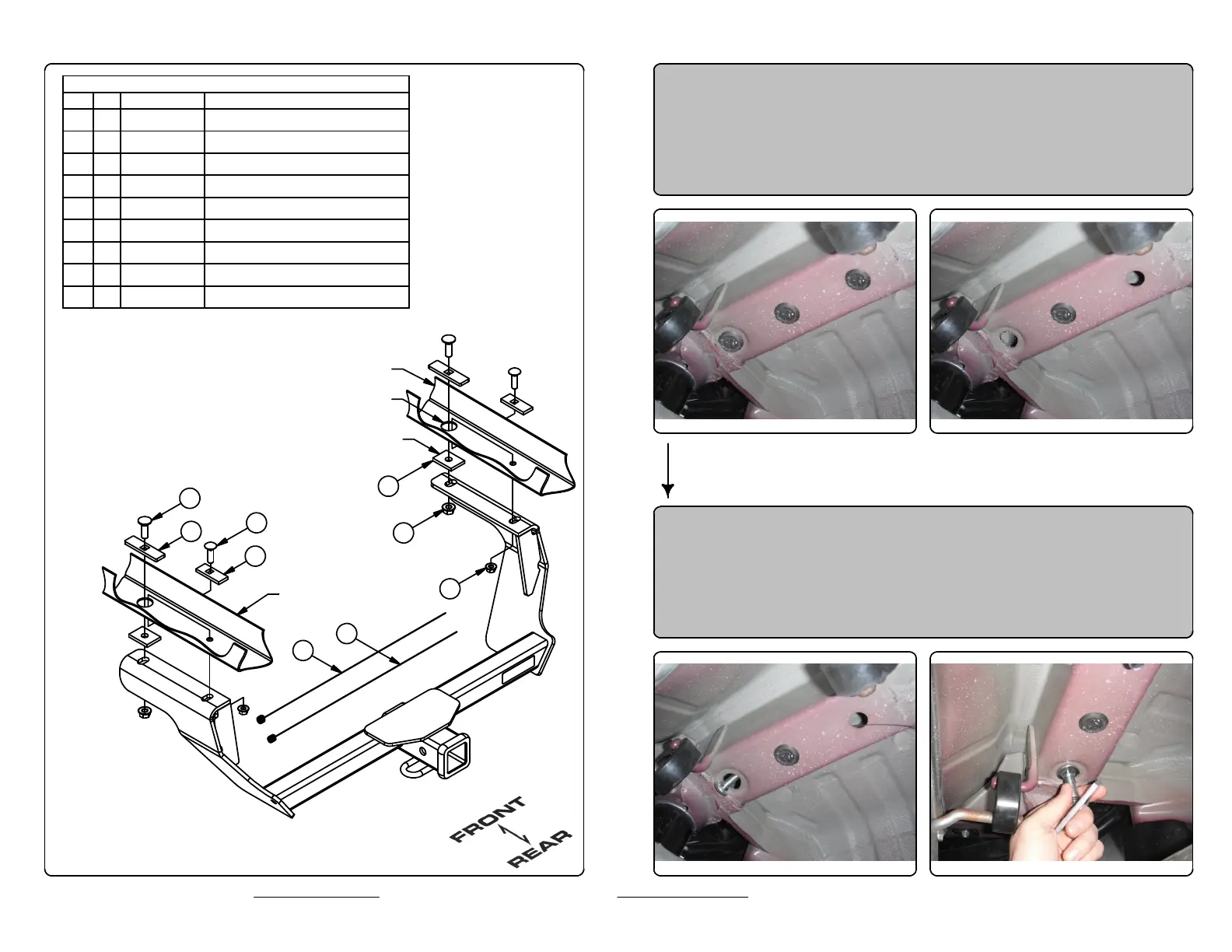

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
.250 x 1.00 x 3.50" SQUARE HOLE SPACER13135-SP21
CARRIAGE BOLT1/2-13 x 1 1/222
CARRIAGE BOLT7/16-14 x 1 1/2
23
.250 x 1.00 x 2.50" SQUARE HOLE SPACERCM-SP1124
.250 x 1.50 x 2.00" ROUND HOLE SPACERCM-SP162
5
HEX FLANGE NUT
HFN 121326
HEX FLANGE NUT7/16-142
7
7/16" FISHWIRE7_16 FISHWIRE18
1/2" FISHWIRE1_2 FISHWIRE
19
2
3
9
8
7
6
5
PASSENGER SIDE
FRAME RAIL
ENLARGE ACCESS
HOLE AS NECESSARY
USE SPACERS TO LEVEL
HITCH ON VEHICLE
DRIVER SIDE
FRAME RAIL
1) Remove the (4) plugs in the frame rails and
discard (leave center plugs in).
2) Fishwire 7/16" carriage bolts and spacers into
position first and reverse fishwire the 1/2" carriage
bolts and spacers into position afterward.
(enlarge access hole as necessary)
1
4
