INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
3. Install (2) 1/2"-13 hex flange nuts on to carriage bolts.
4. Torque M12 fasteners to 86 lb-ft and 1/2" fasteners to
110 lb-ft.
BUMPER BEAM
3. ROTATE BOLT AND SPACER
THROUGH MOUNTING HOLE
5
6
1
MOUNTING HOLE
1. PUSH SPACER UP
2. PULL BOLT PARTIALLY
THROUGH SPACER

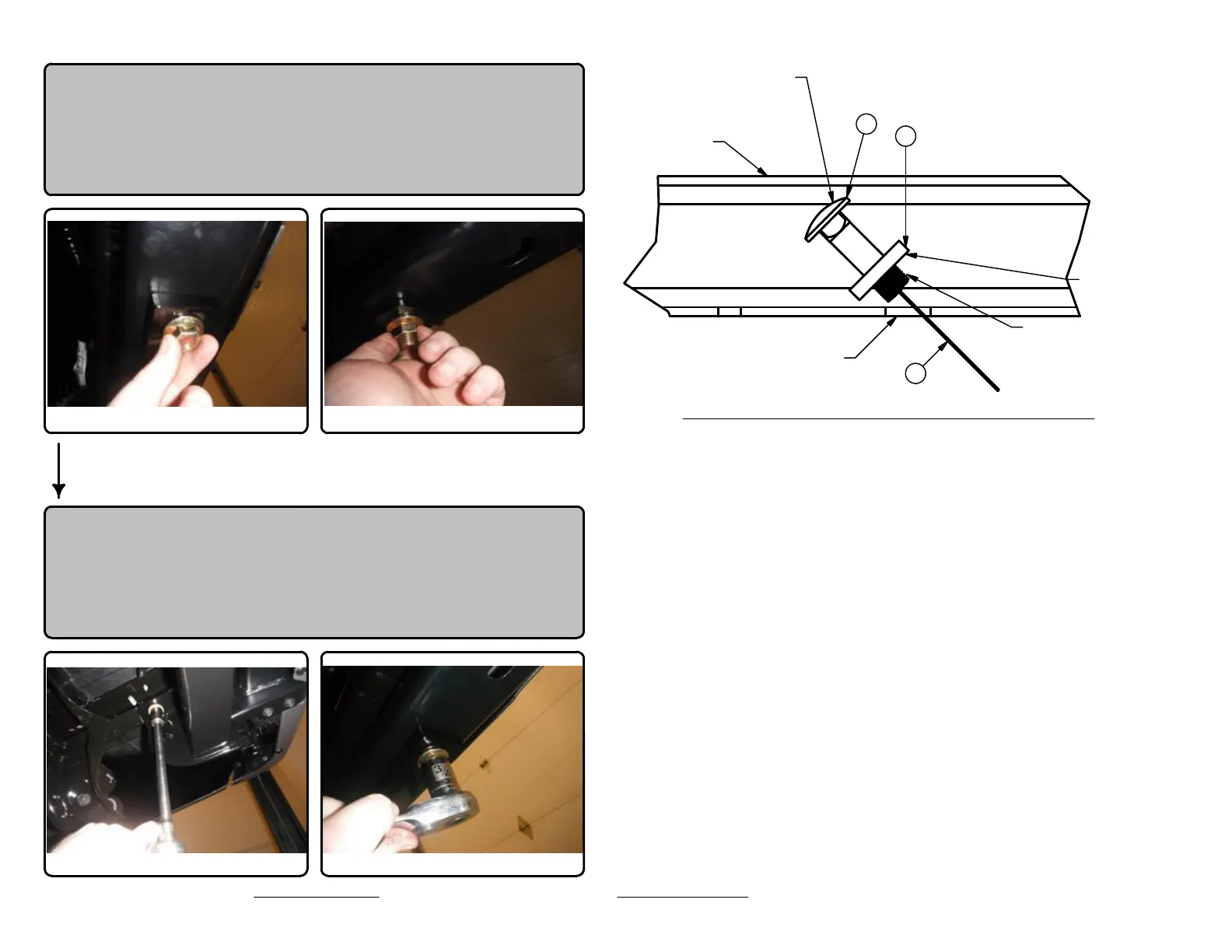

BUMPER BEAM FISHWIRE DIAGRAM
