TROUBLESHOOTING & BENCH TESTING

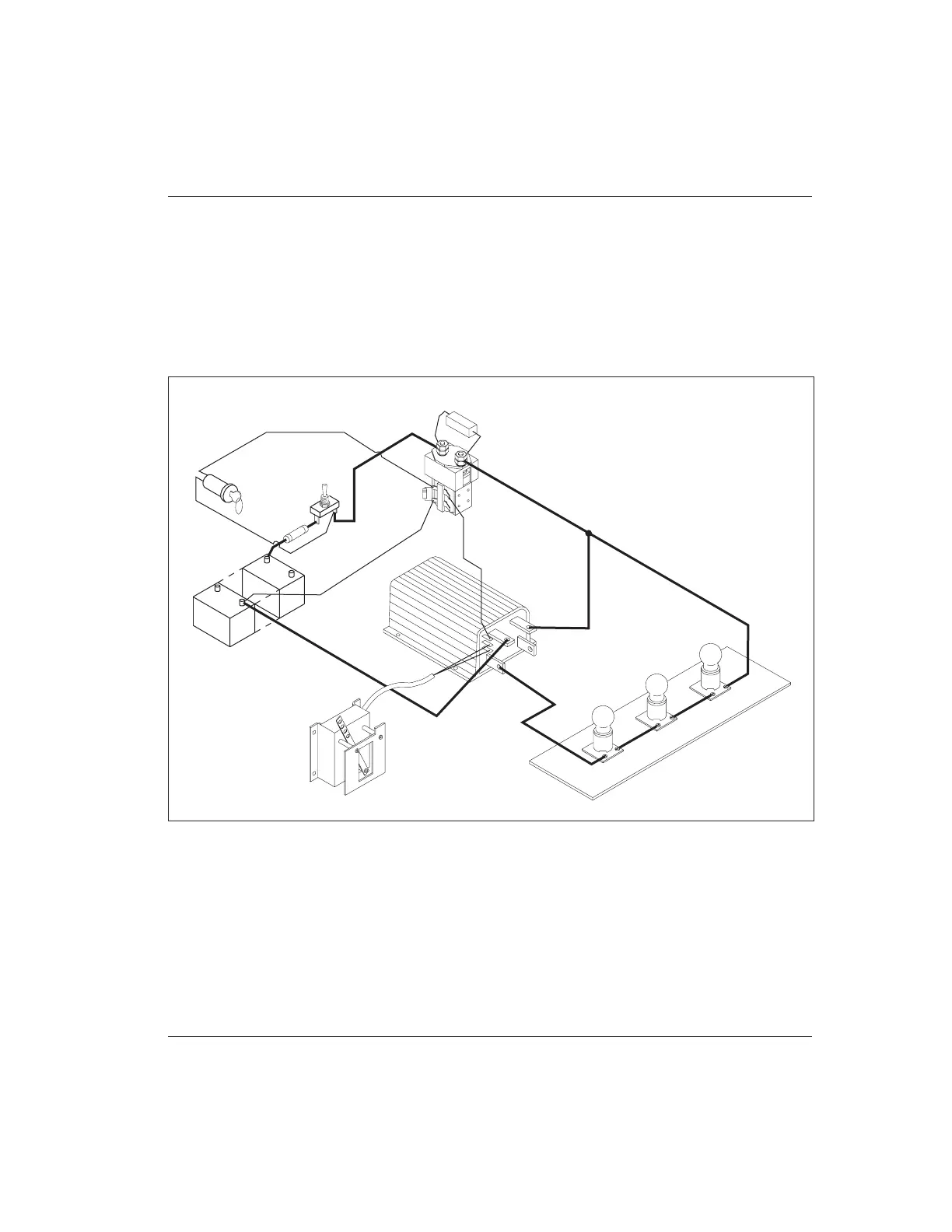

Fig. 19 Setup for bench testing.
POWER SUPPLY
(to match your controller)
POTBOX
(to match your controller’s
throttle output)
TEST LOAD
(to match battery voltage)
MAIN
CONTACTOR
POWER
SWITCH
KEYSWITCH
10A
FU
SE
12V
12V
12V
5W, 250Ω
RESISTOR
• a TEST LOAD consisting of incandescent light bulbs wired in
series to get the same voltage as your power supply. (For example,
with a 36 volt battery, use three 12 volt bulbs.)
• a general purpose VOLT OHMMETER or DIGITAL VOLT-
METER.
