Curtis D1000GT12A000 User Manual

ILLUSTRATED PARTS/RECOMMENDED PARTS IP52
WC-75285 TANK ASSEMBLY, ILLUSTRATED PARTS/RECOMMENDED PARTS 050217C
ITEM # PART # DESCRIPTION
1 WC-75285 TANK, COMPLETE D1000GT/H W/ULTEM FITTINGS
2 WC-37008 KIT, TANK LID ROUND (INCLUDES GASKET)
3 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-934-04
KIT,ELEMENT HEATING 2.5KW 220V W/ JAM NUT &
SILICONE WASHERS
6 WC-1438-101 SENSOR, TEMPERATURE TANK
ITEM # PART # DESCRIPTION
2 WC-37008 KIT, TANK LID ROUND (INCLUDES GASKET)
3 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-934-04
KIT,ELEMENT HEATING 2.5KW 220V W/ JAM NUT &
SILICONE WASHERS
6 WC-1438-101 SENSOR, TEMPERATURE TANK
WC-75285 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365 KIT, FITTING TANK INLET
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
ITEM # PART # DESCRIPTION
7 WC-4382 GUARD, SHOCK HTNG ELMNT DOUBLE
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365 KIT, FITTING TANK INLET
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE

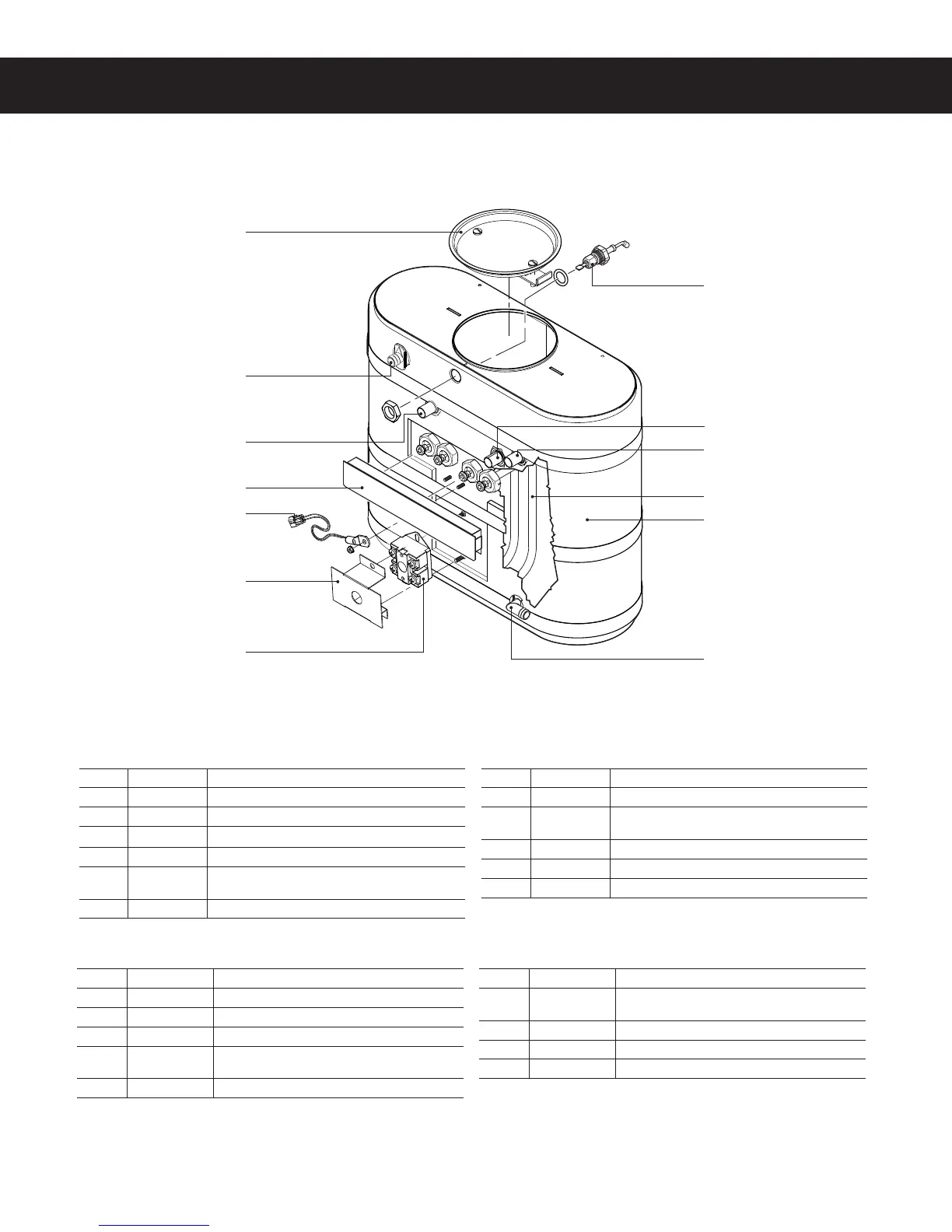

WC-75285 - Tank Assembly
2
10
11
7
6
3
8
4
11
11
5
1
9
WC-75285 - Tank Assembly - Parts List
