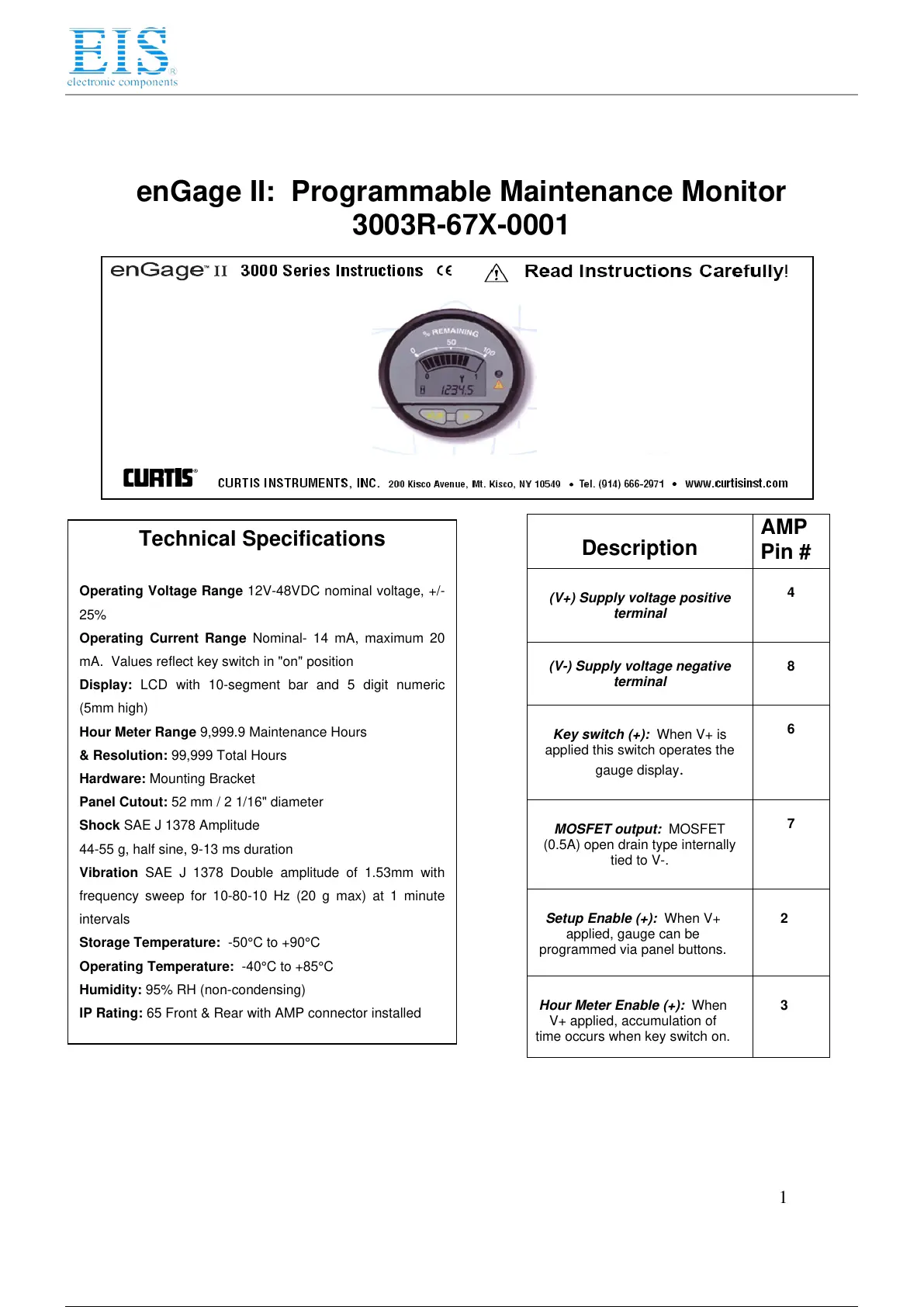

enGage II: Programmable Maintenance Monitor
3003R-67X-0001
Description
AMP
Pin #
(V+) Supply voltage positive
terminal
4
(V-) Supply voltage negative
terminal
8
Key switch (+): When V+ is
applied this switch operates the
gauge display
.
6
MOSFET output: MOSFET
(0.5A) open drain type internally
tied to V-.
7
Setup Enable (+): When V+
applied, gauge can be
programmed via panel buttons.
2
Hour Meter Enable (+): When
V+ applied, accumulation of
time occurs when key switch on.
3
Technical Specifications
Operating Voltage Range 12V-48VDC nominal voltage, +/-
25%
Operating Current Range Nominal- 14 mA, maximum 20
mA. Values reflect key switch in "on" position
Display: LCD with 10-segment bar and 5 digit numeric
(5mm high)
Hour Meter Range 9,999.9 Maintenance Hours
& Resolution: 99,999 Total Hours
Hardware: Mounting Bracket
Panel Cutout: 52 mm / 2 1/16" diameter
Shock SAE J 1378 Amplitude
44-55 g, half sine, 9-13 ms duration
Vibration SAE J 1378 Double amplitude of 1.53mm with
frequency sweep for 10-80-10 Hz (20 g max) at 1 minute
intervals
Storage Temperature: -50°C to +90°C
Operating Temperature: -40°C to +85°C
Humidity: 95% RH (non-condensing)
IP Rating: 65 Front & Rear with AMP connector installed
1
