MAINTENANCE (cont.)

BRUSH REPLACEMENT

Brush life will vary depending on the load placed on the motor. The brushes should be

inspected every 10-15 hours of use. To inspect or replace:

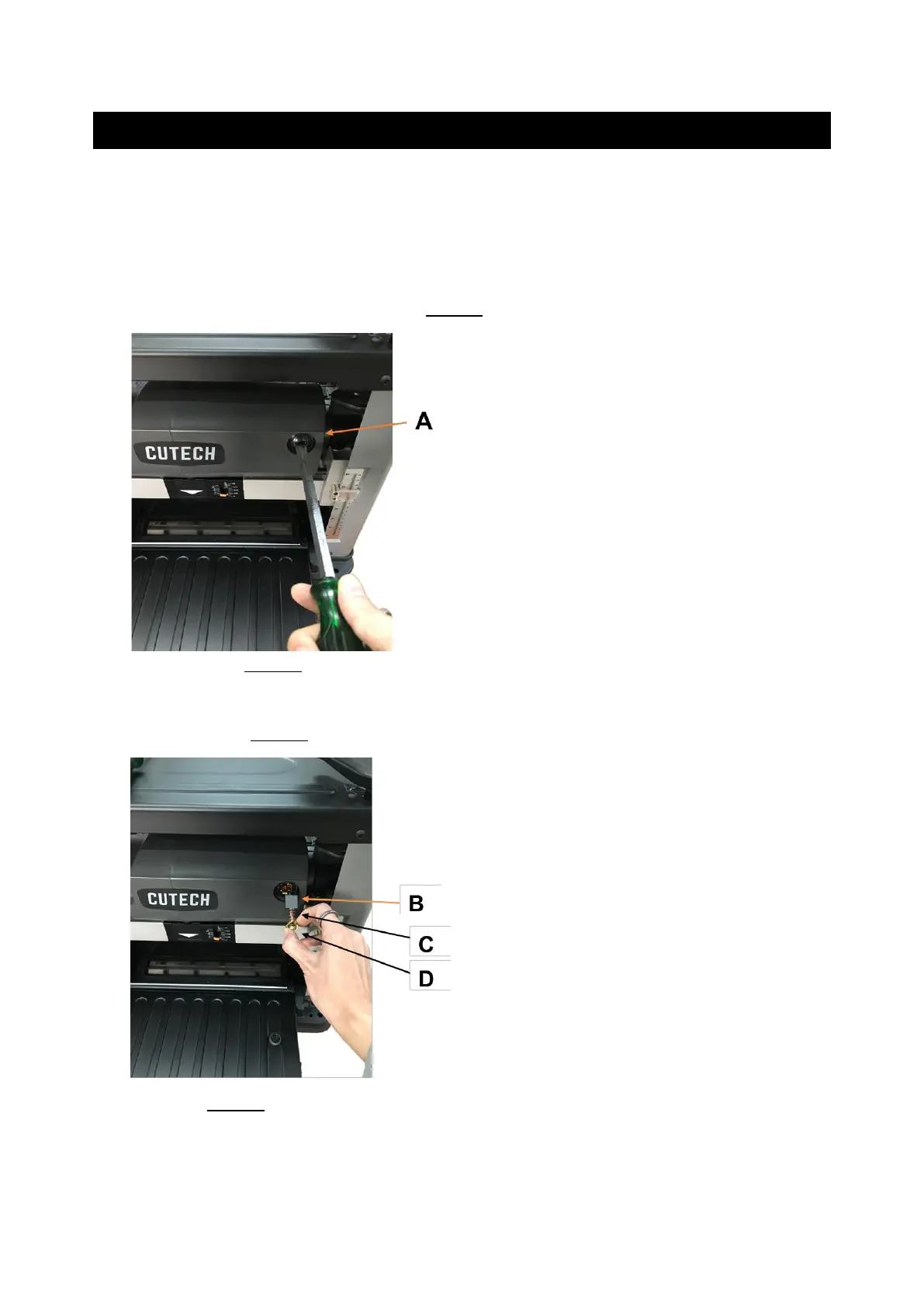

1. Remove the brush holders, one of which is shown at (A). The other is located in the

same position on the rear of the motor assembly. The Brush Holder can be removed

using a flat blade screwdriver. SEE FIG 12.

FIG 12

2. Once the brush has been removed, inspect the carbon (B), the spring (C), and the

wire (D). SEE FIG 13.

FIG 13

3. If the carbon of either brush is worn down to 3/8” or less, both brushes should be replaced.

Also if the spring or wire are burned or damaged in any way, both brushes should be

replaced.
