Cutech 40600H - Adjustments and Settings; Leveling Extension Tables

To Next Page

To Previous Page

ADJUSTMENTS

WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE

POWER SOURCE BEFORE ANY ADJUSTMENTS ARE MADE.

LEVELING EXTENSION TABLES

The extension tables must be level with the planer table. To check the extension tables

and adjust if necessary:

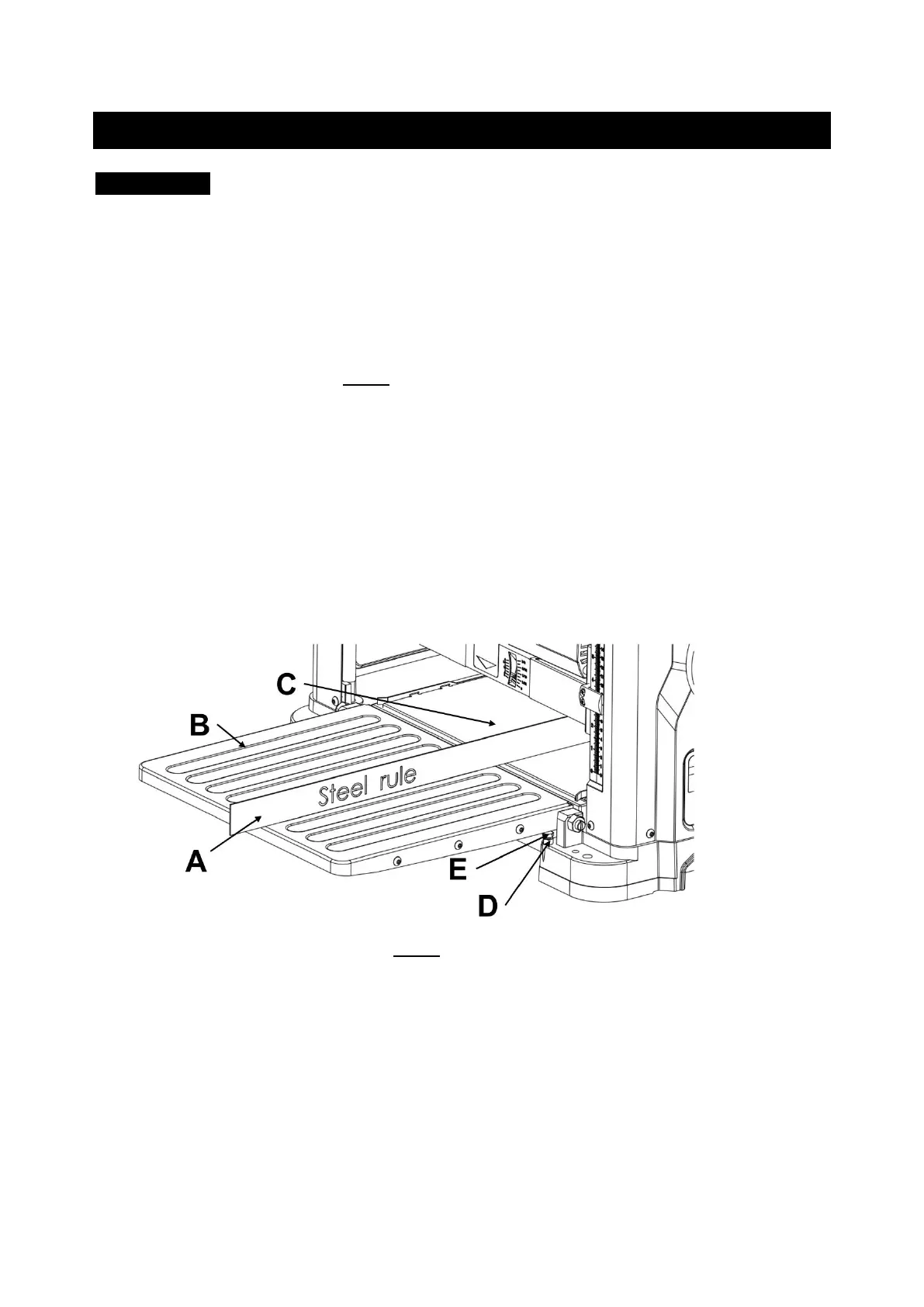

1. Lay a straight edge (A) on the planer table (C) with one end of the straight edge over

the infeed table (B). SEE FIG 5.

2. Check to make sure that the infeed table is level with the planer table.

3. If an adjustment is necessary, raise table, loosen lock nuts (D) and adjust Hex Head

Screws (E) on each side of the table until the infeed table is level with the planer

table.This will adjust the outer edge of the table.

4. Recheck for level and repeat adjustment if necessary.

5. Repeat this process for leveling the outfeed table.

FIG 5
