ASSEMBLY
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE.

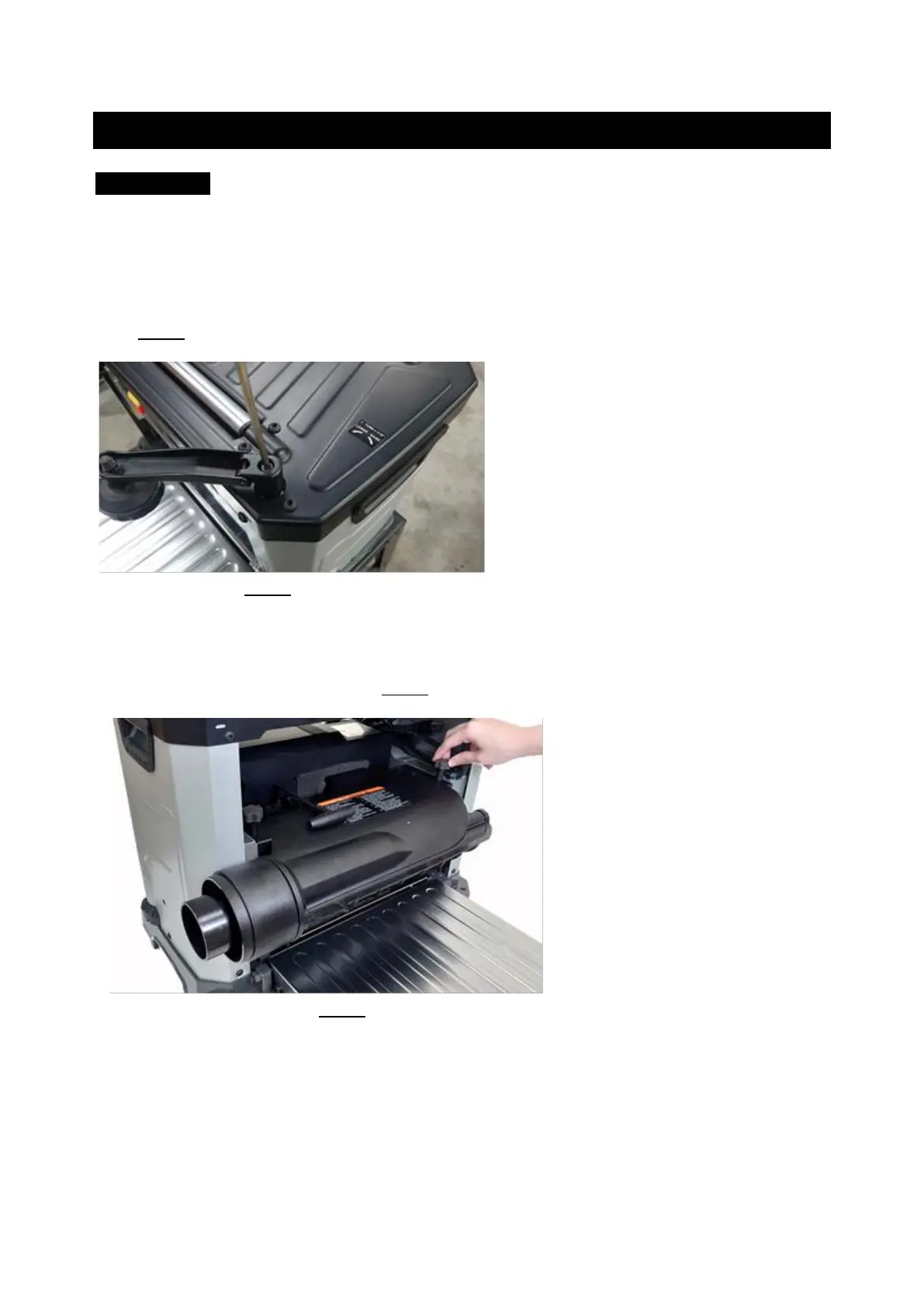

ATTACHING DEPTH ADJUSTMENT HANDLE
Attach the raise/lower adjustment handle to the shaft located on top of the planer and
fasten in place with 1 Hex Socket Head screw. Tighten screw using supplied hex wrench.
SEE FIG 1.
FIG 1
ATTACHING DUST PORT
1. Facing the rear of the machine, locate the dust port on the cutterhead assembly by
turning 2 dust port knobs. SEE FIG 2.
FIG 2
