19
OPERATIONS (cont.)

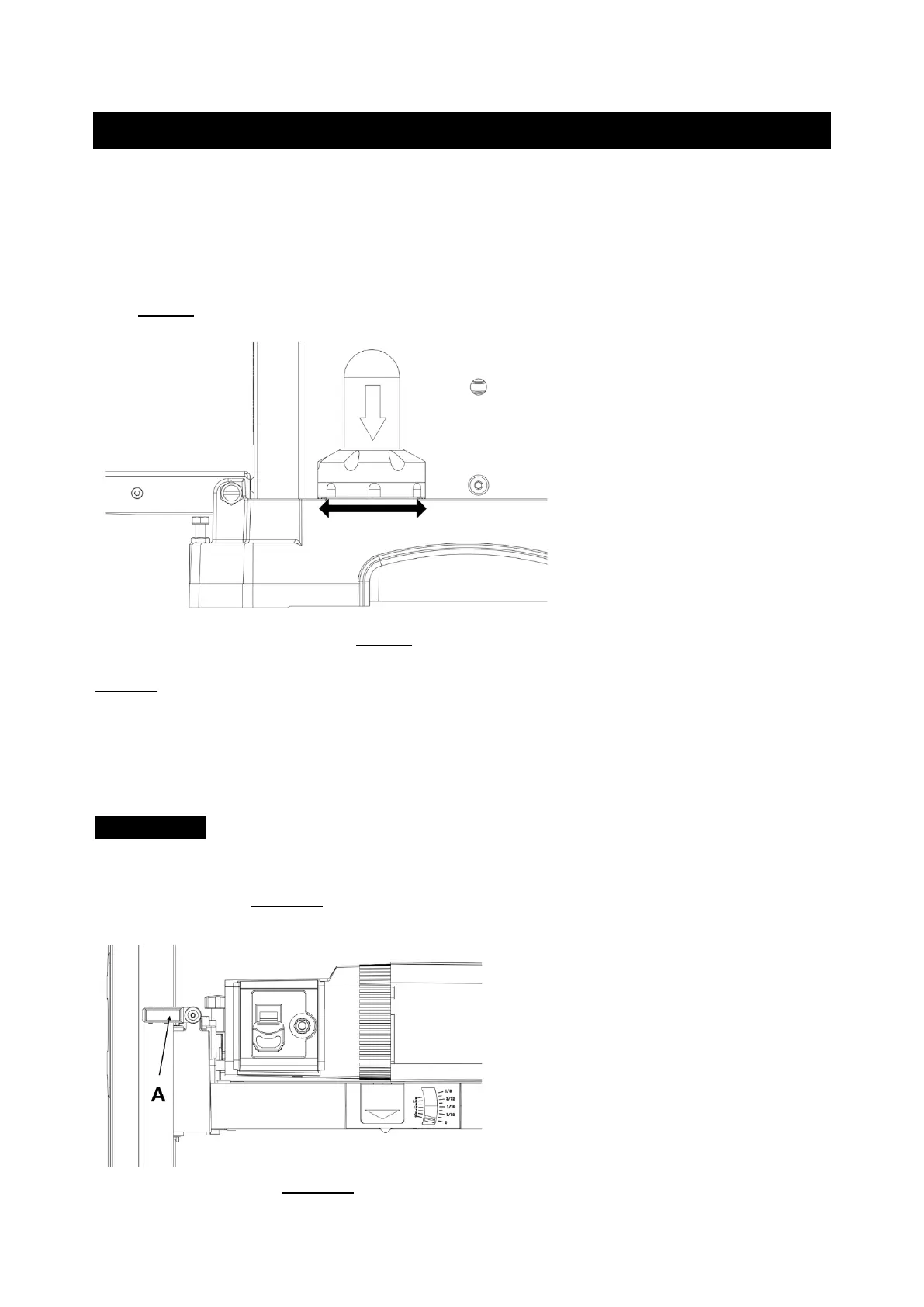

REPEAT CUT PRESET
The REPEAT CUT preset, located on the right side of the planer, provides a simple way to
preset the finished thickness of a work piece. The indicator can be set to various
thicknesses. Move the lever to the desired finished thickness. Use this feature when
thickness planing multiple work pieces to ensure a uniform thickness of all work pieces.
SEE FIG 11.
FIG 11
NOTE: When lowering the head assembly, ensure the REPEAT CUT preset is in the lowest
desired thickness position. Failure to do so may result in excess downward pressure by
the cutterhead assembly onto the mechanism and cause damage to the adjustment rod
and upper frame.
FEED RATE
CAUTION! ONLY SWITCH FEED RATE SELECTOR WHILE PLANER IS RUNNING.
Switch feed rate selector (A) to slow feed (16FPM) for finishing or fast feed (26FPM) for
thicknessing. SEE FIG 11-1.
FIG 11-1
