CVS 7970 - Adjusting Cap; Storage Tube Access; Parts List

3
CVS 7970 High-Low Pressure Pilot
Table 2: Parts List
Key
Part Number
Qty.
Description
Material
1
CVS79710A
1
Adjusting Cap
Black Delrin
2
CVS79702A
1
5/16” Ball Bearing
Stainless Steel
3
CVS7911A
1
Spring Guide
Black Delrin
4
CVS7970A
1
Spring
302 Stainless Steel
5
CVS79712A
2
Lock Nut
Black Delrin
6
CVS79709A
1
Spring Housing
316 Stainless Steel
7
CVS79708
1
Stop Plate
316 Stainless Steel
8
CVS79704A
1
Body Housing
316 Stainless Steel
9
CVS79707A
1
Upper Stem
316 Stainless Steel
10
CVS79706A
1
Lower Stem
316 Stainless Steel
11
CVS79703A
1
Small Piston
316 Stainless Steel
12
CVS79705
1
Stop Washer
316 Stainless Steel
13
CS79702
1
Large Piston
316 Stainless Steel
14
CVS797014
1
Snap Ring
304 Stainless Steel
15
CVS79701A
1
Piston Housing
316 Stainless Steel
16
V-75-010
2
Seal
Viton Coated TFE
17
V-75-008
2
Seal
Viton Coated TFE
18
V-75-119
1
Seal
Viton Coated TFE
19
TFE-008
1
Back-Up Ring
Teflon
20
V-75-008
1
Seal
Viton Coated TFE
21
CVS79713A
1
1/4” Piston
316 Stainless Steel
22
V-75-006
1
Seal
Viton Coated TFE
23
TFE-006
1
Back-Up Ring
Teflon
24
TFE-012
1
Back-Up Ring
Teflon
25
V-75-012
1
Seal
Viton Coated TFE
Seal Kits
CS7970-BK
1
Piston O-Ring Kit (Body Housing)
V-75-008
1
Seal
Viton Coated TFE
V-75-010
1
Seal
Viton Coated TFE
CVS7970-PK
1
Piston O-Ring Kit (Body Housing)
V-75-006
1
Seal
Viton Coated TFE
V-75-008
1
Seal
Viton Coated TFE
V-75-012
1
Seal
Viton Coated TFE
V-75-119
1
Seal
Viton Coated TFE
TFE-006
1
Back-Up-Ring
Teflon
TFE-008
1
Back-Up Ring
Teflon
TFE-012
1
Back-Up Ring
Teflon

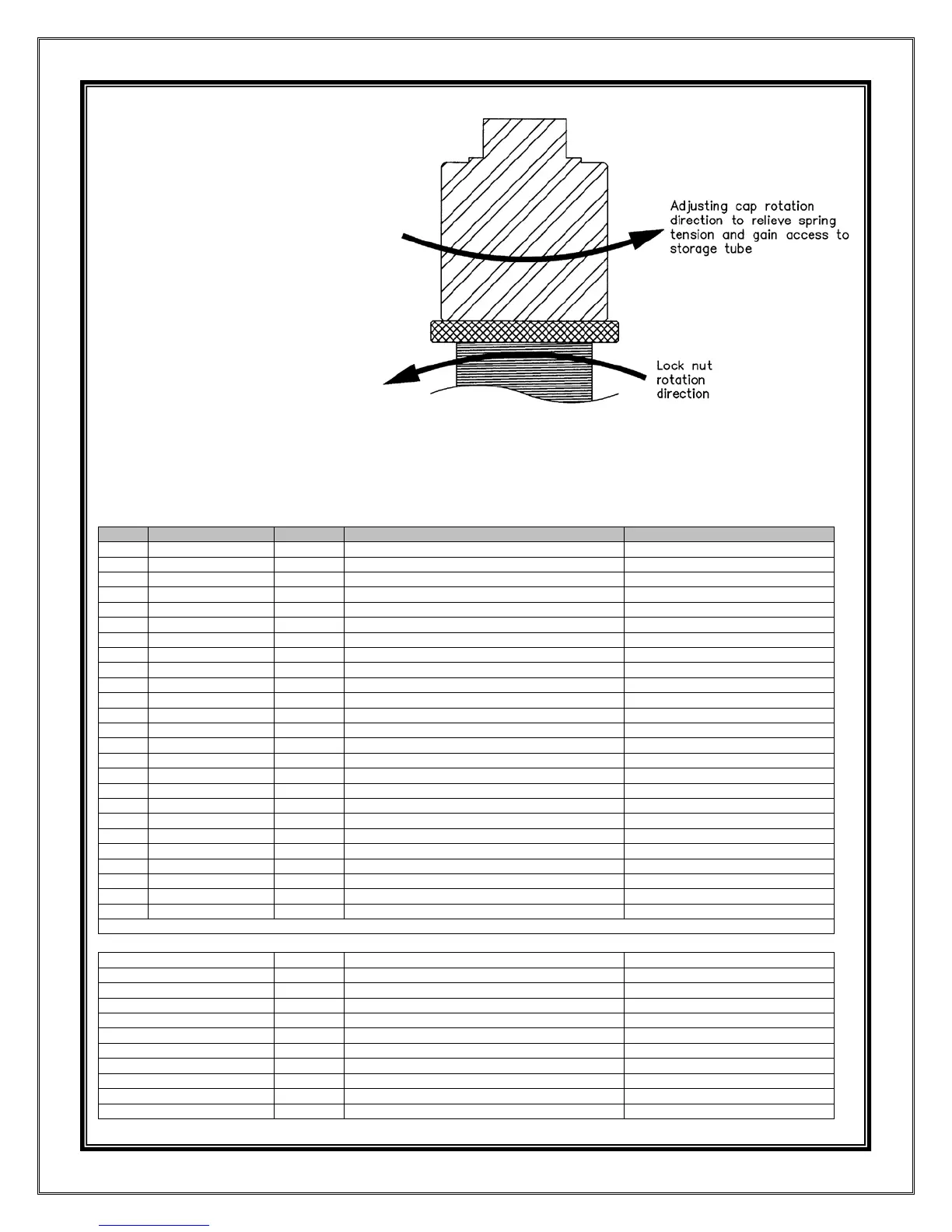

Figure 2: Adjusting Cap / Storage Tube
Access
