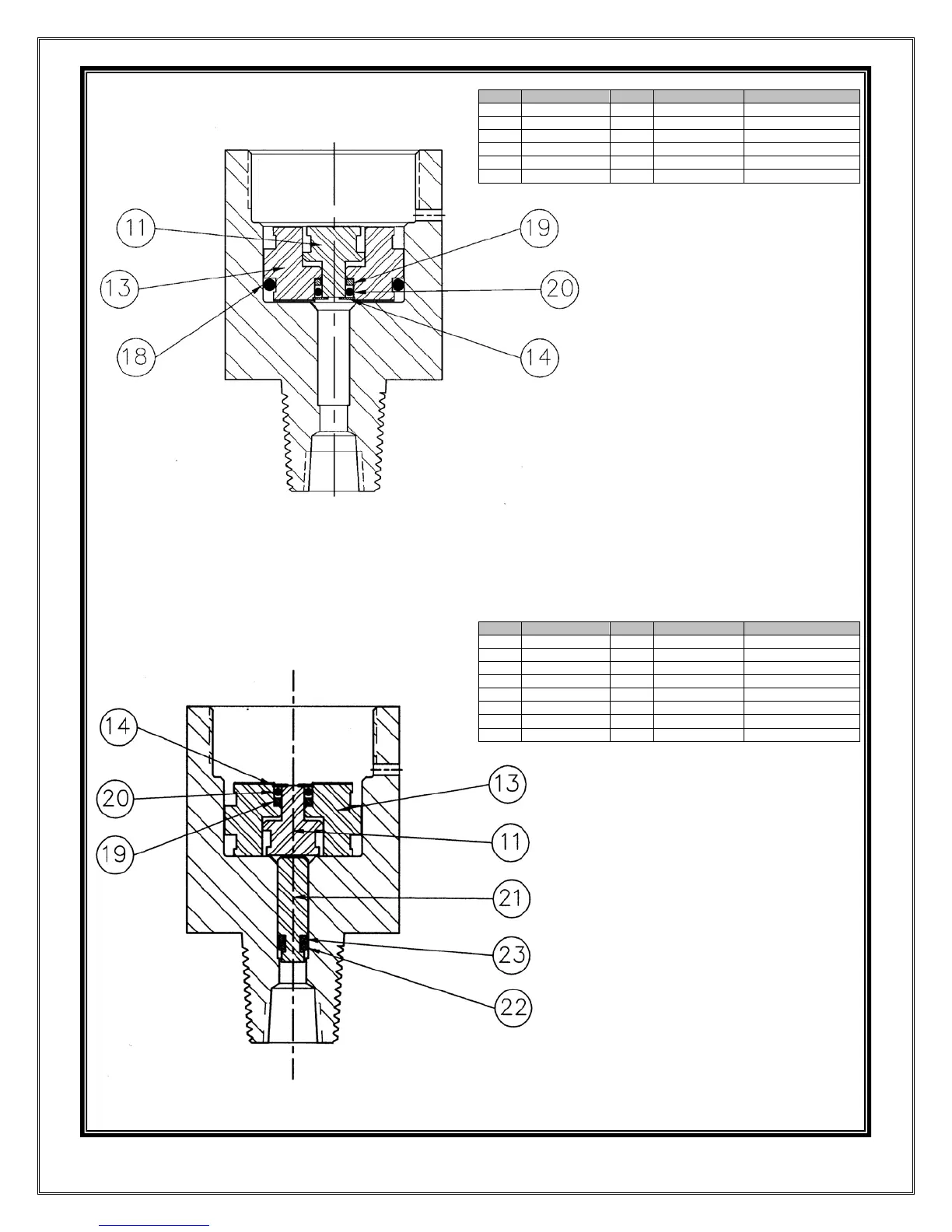

CVS 7970 - 3;16 Piston Arrangement Enlarged Detail Drawing; 1;4” Piston Arrangement Enlarged Detail Drawing

5
Figure 4: 3/16 Piston Arrangement Enlarged Detail Drawing
For pressures from 5900 to 10,000 PSI (407 to 690 bar)
Key
Part Number
Qty.
Description
Material
11
CVS79703A
1
Small Piston
316 Stainless Steel
13
CS79702
1
Large Piston
316 Stainless Steel
14
CVS797014
1
Snap Ring
304 Stainless Steel
18
V-75-119
1
Seal
Viton Coated TFE
19
TFE-008
1
Back-Up Ring
Teflon
20
V-75-008
1
Seal
Viton Coated TFE
Figure 5: 1/4” Piston Arrangement Enlarged Detail Drawing
For pressures from 1440 to 5900 PSI (99 to 407 bar)
Key
Part Number
Qty.
Description
Material
11
CVS79703A
1
Small Piston
316 Stainless Steel
13
CS79702
1
Large Piston
316 Stainless Steel
14
CVS797014
1
Snap Ring
304 Stainless Steel
19
TFE-008
1
Back-Up Ring
Teflon
20
V-75-008
1
Seal
Viton Coated TFE
21
CVS79713A
1
1/4” Piston
316 Stainless Steel
22
V-75-006
1
Seal
Viton Coated TFE
23
TFE-006
1
Back-Up Ring
Teflon
