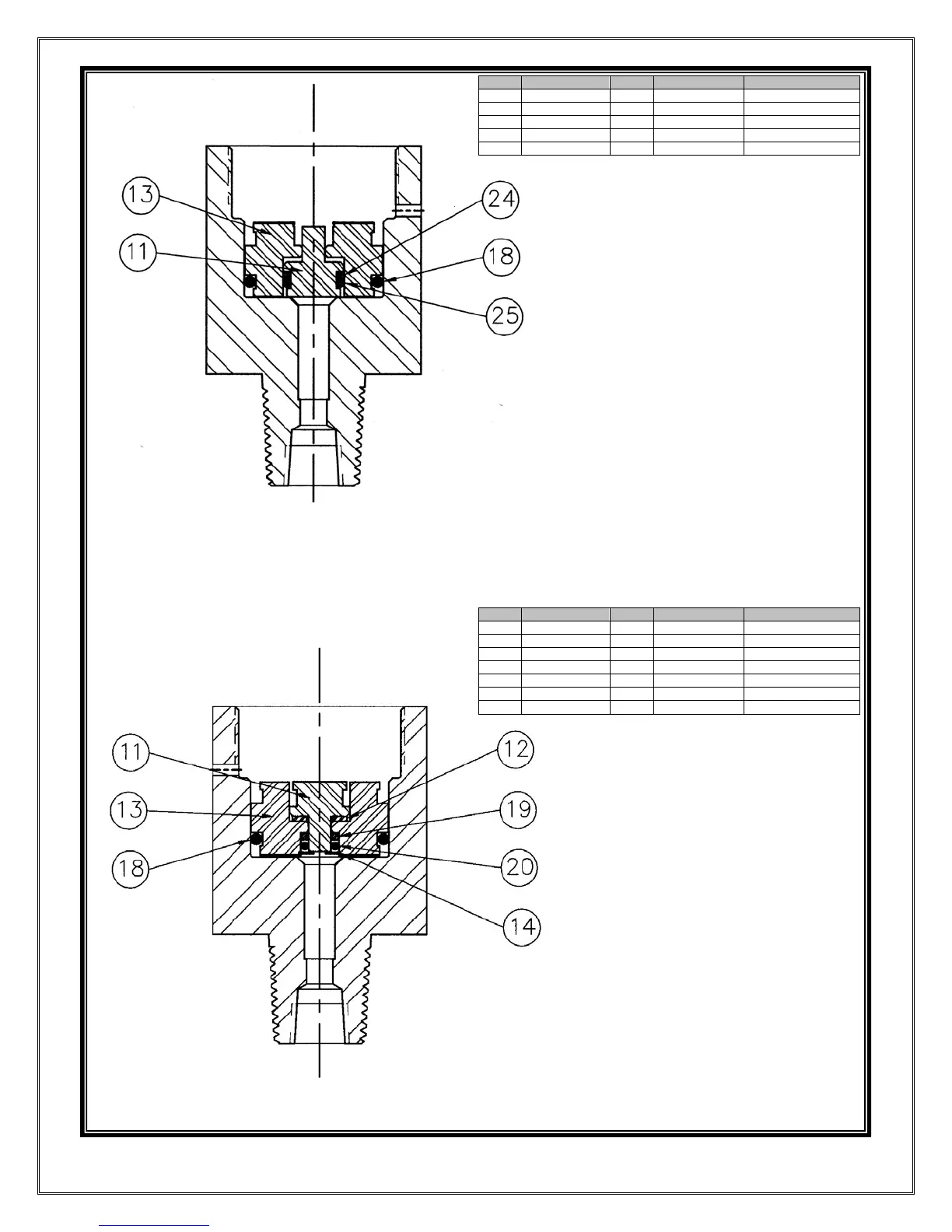

CVS 7970 - 1;2” Piston Arrangement Enlarged Detail Drawing; 1-1;8” Piston Arrangement Enlarged Detail Drawing

6
Figure 7: 1-1/8” Piston Arrangement Enlarged Detail Drawing
For pressures from 10 to 290 PSI (.689 to 20 bar)
Key
Part Number
Qty.
Description
Material
11
CVS79703A
1
Small Piston
316 Stainless Steel
12
CVS79705
1
Stop Washer
316 Stainless Steel
13
CS79702
1
Large Piston
316 Stainless Steel
14
CVS797014
1
Snap Ring
304 Stainless Steel
18
V-75-119
1
Seal
Viton Coated TFE
19
TFE-008
1
Back-Up Ring
Teflon
20
V-75-008
1
Seal
Viton Coated TFE
Figure 6: 1/2” Piston Arrangement Enlarged Detail Drawing
For pressures from 290 to 1440 PSI (20 to 99 bar)
Key
Part Number
Qty.
Description
Material
11
CVS79703A
1
Small Piston
316 Stainless Steel
13
CS79702
1
Large Piston
316 Stainless Steel
18
V-75-119
1
Seal
Viton Coated TFE
24
TFE-012
1
Back-Up Ring
Teflon
25
V-75-012
1
Seal
Viton Coated TFE
