07
HDMI connecting cable
Standard HDMI interfaceMini HDMI interface
Battery
08
7072 Wireless HD Transmitter
Installation Instructions
Product Installation

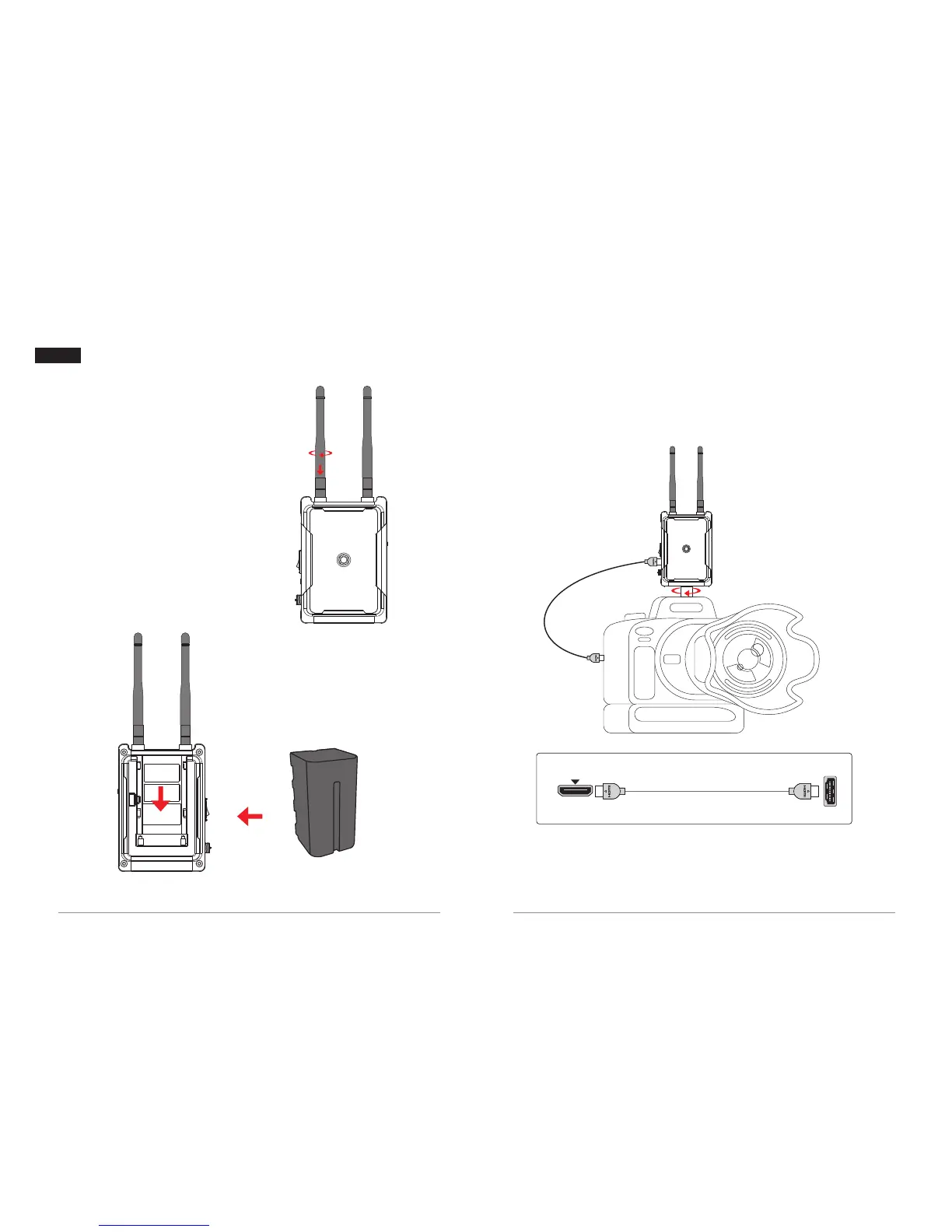

1. Install the antennas on the transmitter,
turn it clockwise, and tighten the antennas.
Adjust the direction of the transmitter antenna
to assume an upright parallel state
(as shown in the figure).
2. The transmitter is equipped with a battery
(as shown in the figures)
3. The transmitter is mounted on a SLR camera and rotated clockwise.
Connect the HDMI interface of the transmitter to the HDMI interface of the
SLR camera via the HDMI cable (as shown in the figure).
4. Turn on (SLR camera, and transmitter) the power.
HDMI OUT
HDMI IN
Warning: When the device is not in use, remove the battery.
