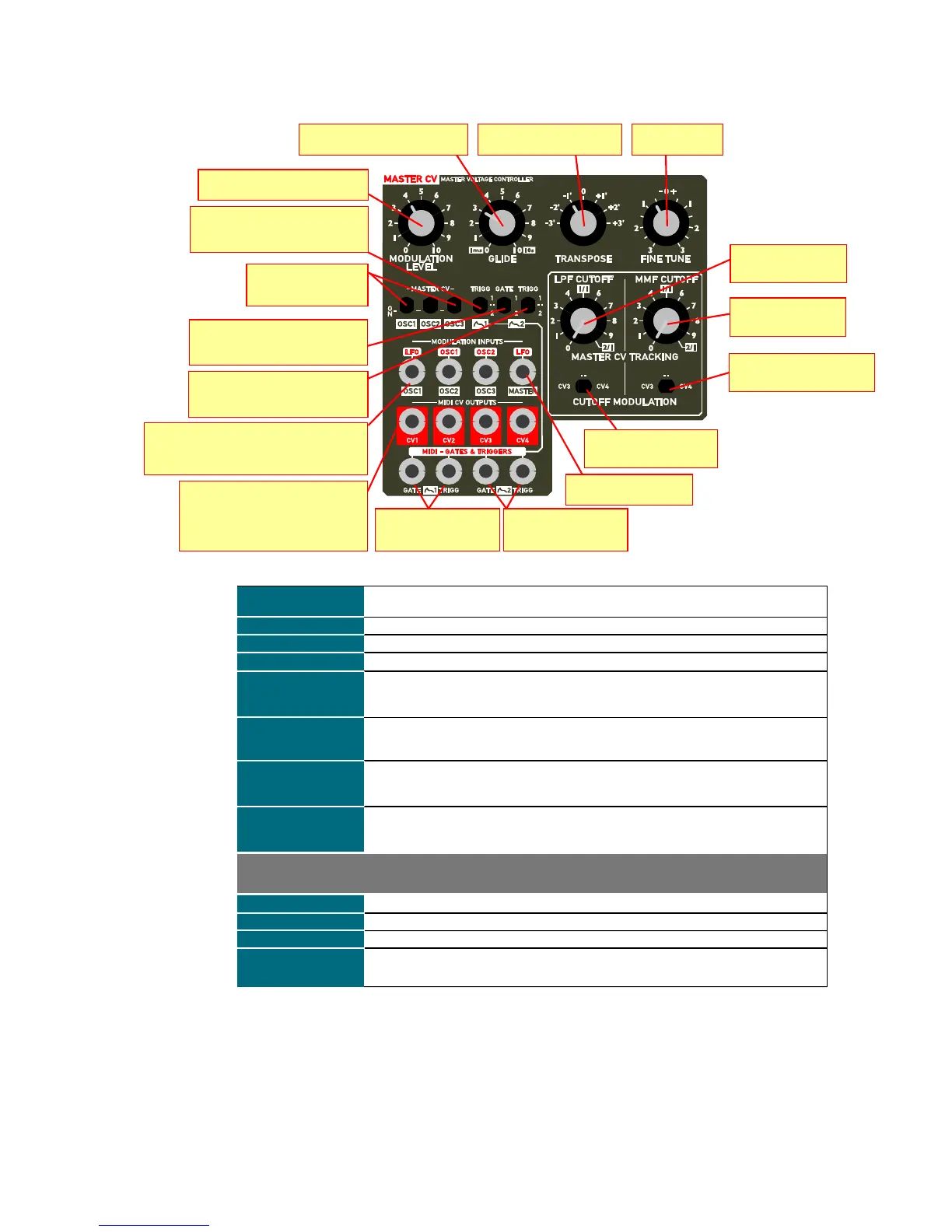

Master modulation level
1 millisecond to 10 seconds, 5 octave range
-3 to +3 in one octave steps
±
3 semitones.
Low-Pass Filter frequency corner tuning; amount of master control voltage
0 to 2 0ctaves/Volt, detent at 1Octave/Volt
Low-Pass Filter frequency corner modulation source selector;
CV3-off-CV4, 5 Octaves range
Multi-Mode Filter frequency corner tuning; amount of master control
voltage, 0 to 2 Octaves/Volt, detent at 1Octave/ Volt
Multi-Mode Filter frequency corner modulation source selector;
CV3-off-CV4, 5 Octaves range
FREQUENCY MODULATION
Modulation inputs for Oscillators and Master Controller
Pre-patched to LFO, 1 Volt/Octave.
Pre-patched to Oscillator 1 output, 1 Volt/octave
Pre-patched to Oscillator 2 output, 1 Volt/octave
Pre-patched to LFO, 1 Volt/Octave
MASTER MODULATION LEVEL
pre-patched to LFO
ENVELOPE GENERATOR 1 SELECTOR
TRIGGER 1, main MIDI channel
TRIGGER 2, main MIDI channel + 1
MASTER CV1 CONTROL
ON/OFF SELECTOR for
OSCILLATORS 1, 2, 3
ENVELOPE GENERATOR 2 SELECTOR
GATE 1, main MIDI channel
GATE 2, main MIDI channel + 1
ENVELOPE GENERATOR 2 SELECTOR
TRIGGER 1, main MIDI channel
TRIGGER 2, mani MIDI channel + 1
FREQUENCY CONTROL INPUTS
OSCILLATOR 1, pre-patched to LFO
OSCILLATOR 2, pre-patched to OSCILLATOR 1
OSCILLATOR 3, pre-patched to OSCILLATOR 2
MIDI CONVERTER CONTROL OUTPUTS
CV1 MASTER TUNING
CV2 VELOCITY
CV3 MODULATION WHEEL
CV4 AFTER TOUCH
(factory preset)
ENVELOPE GENERATOR 1
GATE and TRIGGER
EXTERNAL INPUTS
ENVELOPE GENERATOR 2
GATE and TRIGGER
EXTERNAL INPUTS
LOWPASS FILTER CUTOFF
MODULATION
selector CV3-off-CV4
MULTI-MODE FILTER CUTOFF
MODULATION
selector CV3-off-CV4
MULTI-MODE FILTER
MASTER CV TRACKING
0 to 2 octaves/Volt
LOWPASS FILTER
MASTER CV TRACKING
0 to 2 octaves/Volt
MASTER GLIDE TIME CONTROLLER
1 millisecond to 10 seconds
MASTER TRANSPOSE
6 octaves in 1 octave steps
MASTER TUNING
± 3 semitones
MASTER CONTROL INPUT
pre-patched to LFO
MODULATION
LEVEL
GLIDE
TRANSPOSE
FINE TUNE
LPF CUTOFF
MASTER CV
TRACKING
LPF, CUTOFF
MODULATION
MMF CUTOFF
MASTER CV
TRACKING
MMF, CUTOFF
MODULATION
OSCILLATOR 1
OSCILLATOR 2
OSCILLATOR 3
MASTER
CONTROLLER
CONTROLLER
