CV, LEVEL
Amplitude modulation input,
±
5 Volts wave @ 5Volts input CV.
CV, PWM
Pulse width modulation input, 5% pulse width/ 1Volt input CV.
Mixer
This is a two input / two output DC-coupled mixer with input level controls. The inputs are pre-patched to the
LFO triangle wave and to the ENVELOPE GENERATOR 1, but can be coupled to any other source.
The outputs deliver the sum of the attenuated input signals and its inverted signal (sum+ and sum-). These
outputs are pre-patched to the PWM inputs of OSC1 and 2 (see above). Especially when using the LFO signal,
this can be a useful choice since the mixers outs provide the LFO signal with opposite polarity to OSC1's PWM
respective OSC2's PWM. Consequently, the oscillators pulse width sweeps in opposite directions which
results in interesting sonic possibilities.
EXT INPUT1
Pre-patched to LFO triangle output, gain = 1.
EXT INPUT2
Pre-patched to Envelope Generator 1 output, gain = 1.
S
+ OUTPUT
Sum of input 1 and input 2, patched to
Oscillator 1, PWM input.
S
- OUTPUT
Inverted sum of Input 1 and Input 2, patched to
Oscillator 2, PWM input.

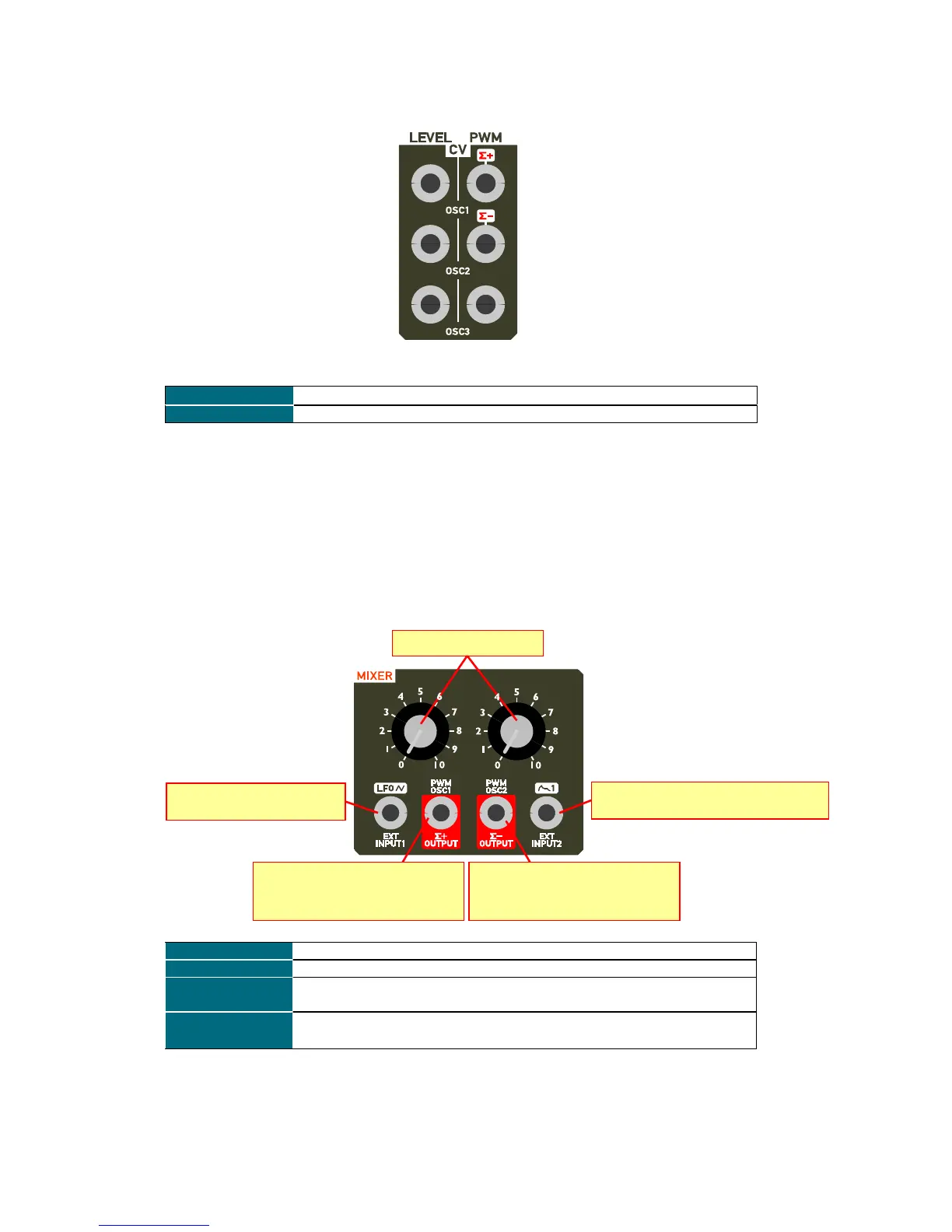

MIXER OUTPUT
pre-patched to OSCILLATOR 1
PULSE WIDTH MODULATION INPUT
MIXER OUTPUT
pre-patched to OSCILLATOR 2
PULSE WIDTH MODULATION INPUT
MIXER INPUT 1
pre-patched to LFO TRIANGLE
MIXER INPUT 2
pre-patched to ENVELOPE GENERATOR 1
INPUT LEVEL CONTROLS
