12

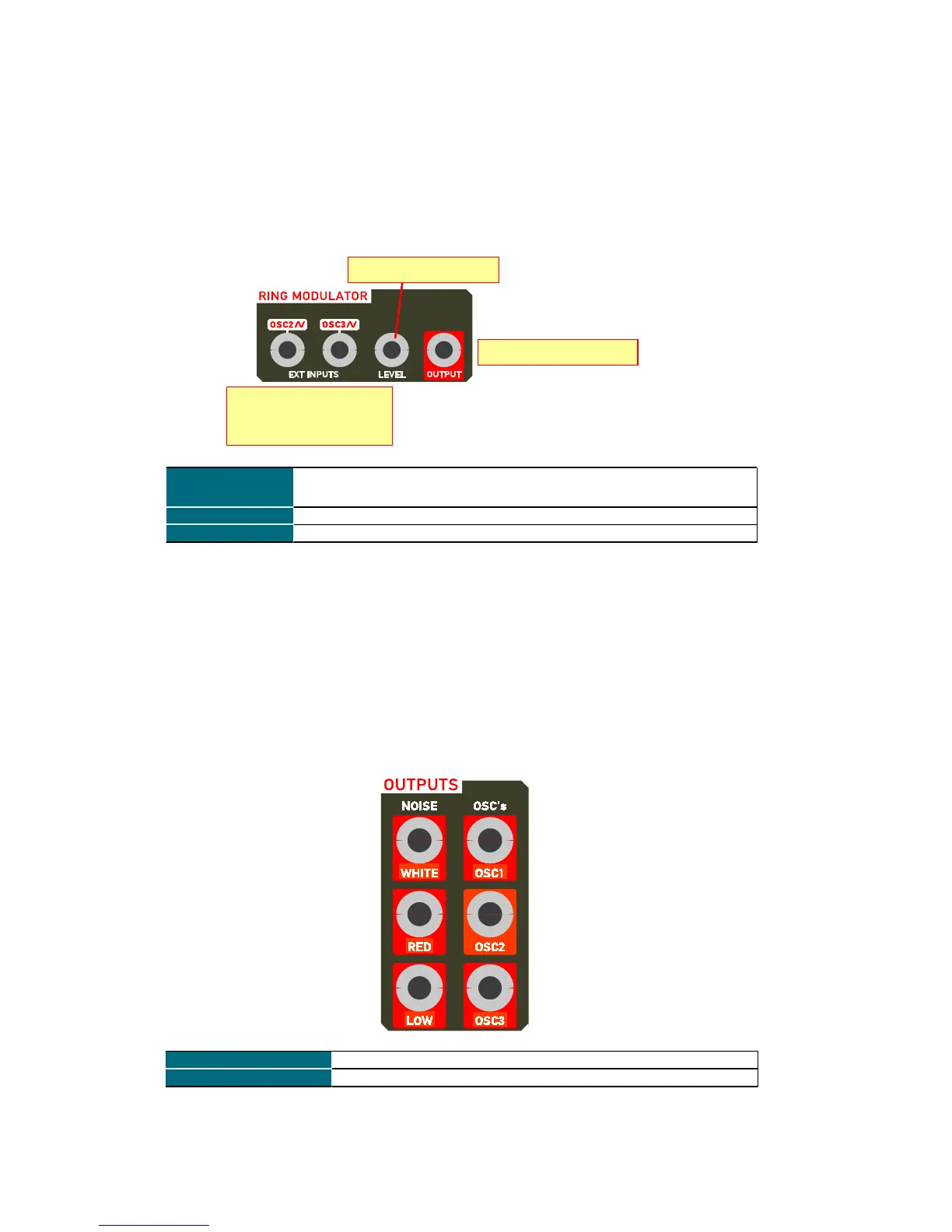

Ring Modulator
A ring modulator is a classic audio effect device and due to the non harmonic character of the output signal,
very useful to create metallic timbres such as bells, sweeping whistles and percussive sounds and tremolo
effects (modulated by low periodic signal like a LFO). Two input signals are needed and pre-patched to
OSC 2 and 3 sine wave outputs. Using the EXT INPUT sockets, any other signal (internal- or external signal
source) can be routed directly into the ring modulator. The AM input enables amplitude modulation effects
(see "Mixer"). The output signal of the ring modulator is routed internally into audio mixer of the Low Pass Filter
and Multi Mode Filter. The OUTPUT socket provide the ring modulator signal for other applications.
EXT INPUTS
Inputs, pre-patched to Oscillator 2, Sine Waveform,
and Oscillator 3 (sine).
OUTPUT
Multiplier output.
LEVEL
Amplitude modulation input, 0 dB gain @ 5 Volts.
Noise Generator and Oscillators Outputs
Low frequency oscillator.
In addition to the internal routing, these output sockets provide the oscillator signals and three sorts of noise:
- WHITE noise has a balanced level of all frequencies and can be used to create wind sounds.
- RED noise contains more low frequencies and can be used to create thunder- or ocean-like sounds.
- LOW is a random low frequency signal that can be used as a modulation source to achieve sounds with
random character.
NOISE GENERATOR
White noise, red noise, low frequency noise
OSCILLATOR OUTPUTS
OSC1, OSC2, OSC3 outputs
EXTERNAL SIGNAL INPUTS
pre-patched to
OSCILLATOR 1, 2 SINUS
RING MODULATOR OUTPUT
OUTPUT LEVEL CONTROL
