CUTOFF
Frequency corner; 16Hz to 16kHz
Q-PEAK
Flat to self-oscillation
POLES
2/4/6 poles (12/24/36 dB/oct) @ low-pass and high-pass mode
2/4/6 poles (6/12/18 dB/oct) @ band-pass mode
CM; CUTOFF
MODULATION
Envelope Generator 1; 0 to
±
10 octaves
Envelope Generator 2; 0 to
±
10 octaves
Oscillator 1 (triangle)/LFO;
0 to ±5 octaves
AUDIO
EXTERNAL INPUT
High Z (4 Mohm input impedance),
1 Volt input for gain = 0 dB
AUDIO, OUTPUT
Filter output
CV, CUTOFF
Frequency modulation input, 1 Volt/octave,
Pre/patched to Oscillator 1 (triangle)/ LFO
CV, LEVEL
Amplitude modulation input, 0 dB gain @ 5 Volts CV
CV, Q-PEAK
Resonance, flat to self-oscillation @ 4 to 5 Volts CV

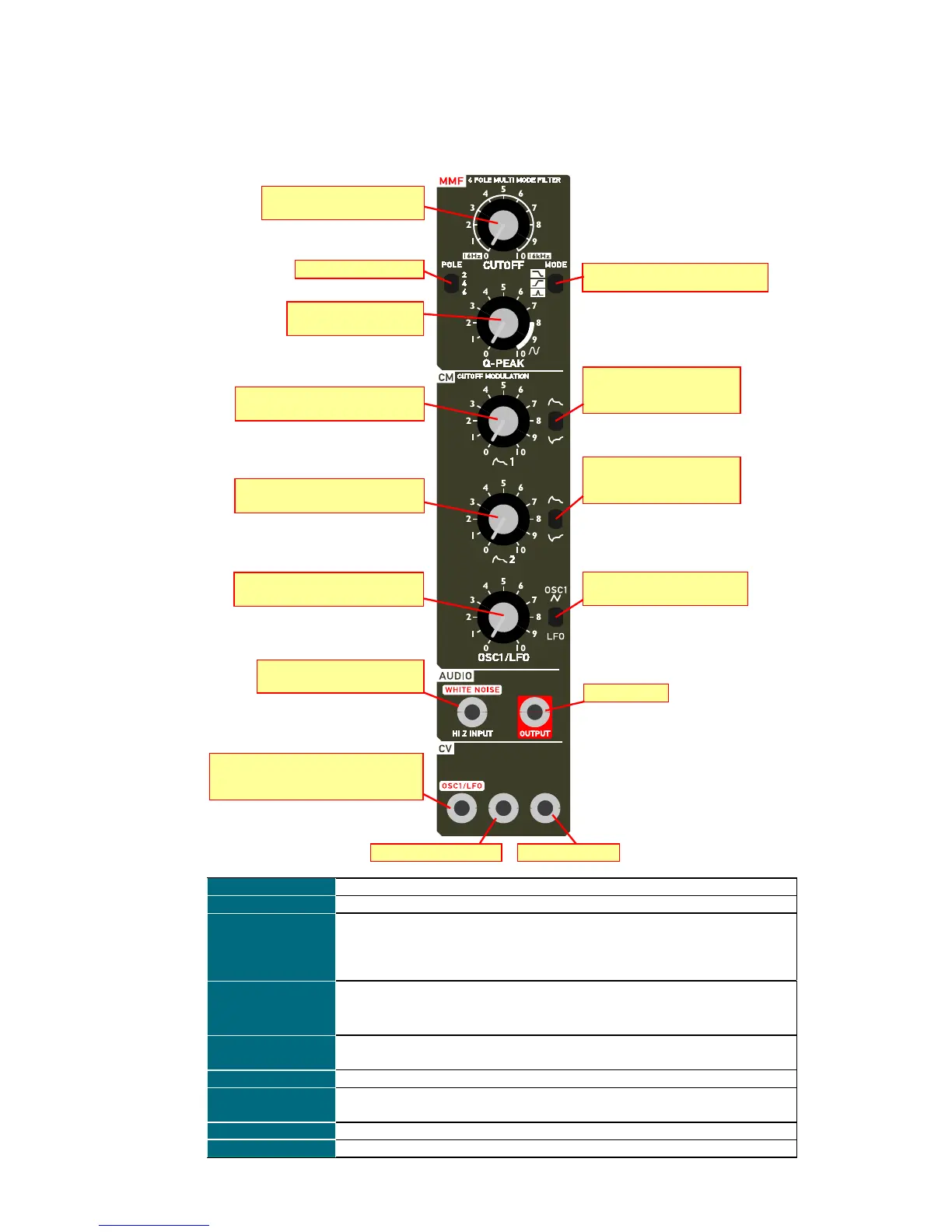

SOURCE SELECTOR
POSITIVE/ NEGATIVE GOING
ENVELOPE GENERATOR 1
CUTOFF FREQUENCY TUNING
16 Hz to 16 kHz
2-4-6 POLE SELECTOR
CORNER PEAK CONTROL
FLAT to OSCILLATION
CUTOFF FREQUENCY MODULATION
by ENVELOPE GENERATOR 1
CUTOFF FREQUENCY MODULATION
by ENVELOPE GENERATOR 2
CUTOFF FREQUENCY MODULATION
by OSCILLATOR1 TRIANGLE/ LFO
EXTERNAL AUDIO INPUT
pre-patched to WHITE NOISE
CUTOFF, EXTERNAL MODULATION INPUT
pre-patched to
OSCILLATOR 1 TRIANGLE/ LFO
FILTER GAIN CONTROL
Q-PEAK CONTROL
FILTER OUTPUT
SOURCE SELECTOR
OSCILLATOR 1 TRIANGLE/ LFO
SOURCE SELECTOR
POSITIVE/ NEGATIVE GOING
ENVELOPE GENERATOR 2
Q-PEAK
LEVEL
CUTOFF
LOW-PASS/ HIGH-PASS/ BAND-PASS
MODE SELECTOR
