Cwejman S1 MK2 User Manual

28
OSCILLATOR2 SINUS out, FM+AM(OSC1/SAW)+SYNC
3.00 4.00 5.00 6.00 7.00 8.00
Time (milliseconds)
OSCILLATOR2 FM(OSC1-SAW)+SYNC, 0SC1 & OSC2 SAW out
OUTPUT (Volts)
5.0
2.5
0.0
-2.5
-5.0
-7.5
3.00 4.00 5.00 6.00 7.00 8.00
Time (milliseconds)
7.5
OUTPUT (Volts)
5.0
2.5
0.0
-2.5
-5.0
-7.5
7.5

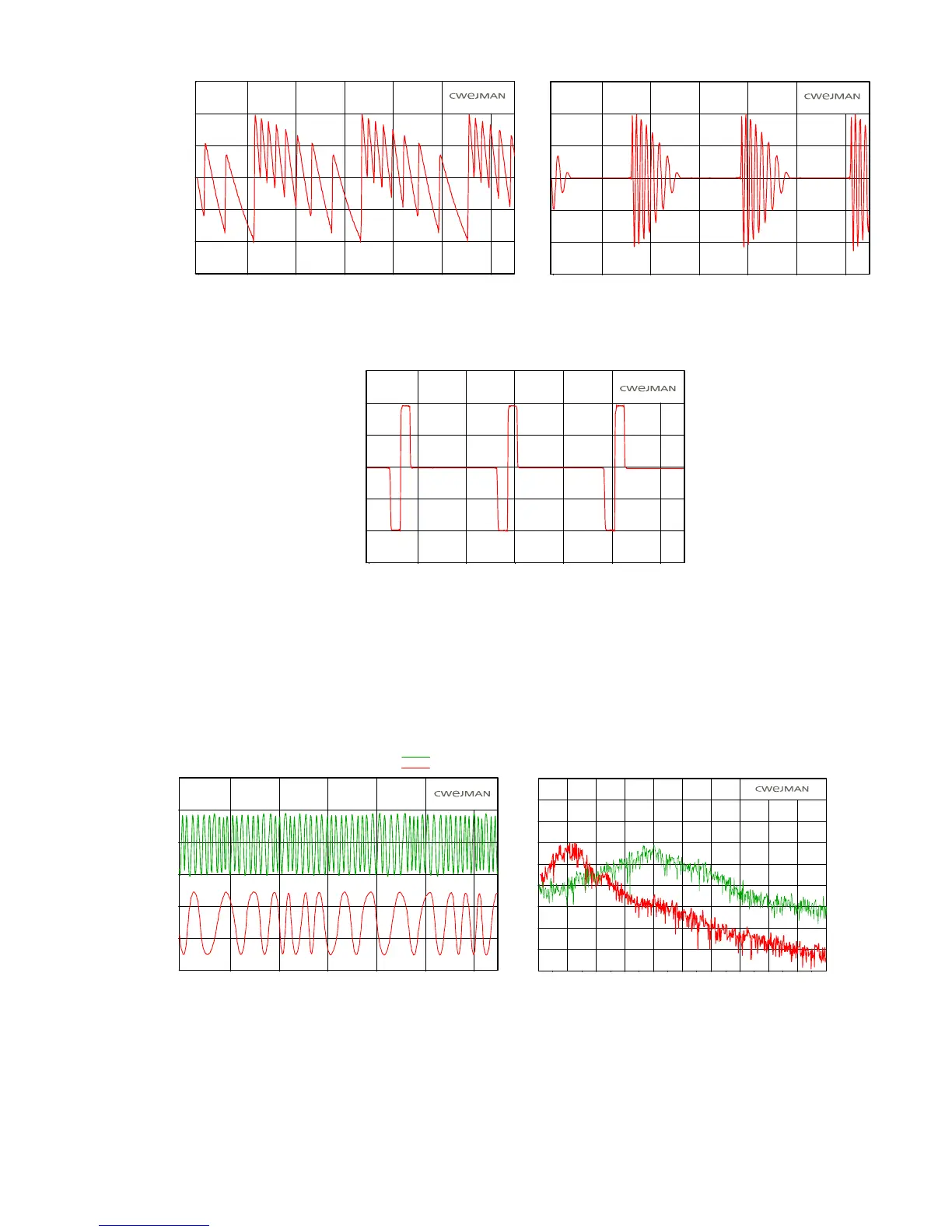

A simple, yet acoustically interesting synchronized waveform that can be used as a template for creating
Bass lead sounds is shown in the illustration below.
OSCILLATOR1/PULSE(PW-5%) + OSCILLATOR2/PULSE (PW-95%)
SYNC, A440
OUTPUT (Volts)
5.0
2.5
0.0
-2.5
-5.0
-7.5
3.00 4.00 5.00 6.00 7.00 8.00
Time (milliseconds)
7.5
It is possible to create many useful Bass-leads with varying timbre and character by simply varying the
pulse width of the oscillators and increasing the frequency of the synchronized oscillator (Oscillator2)
above the frequency of Oscillator1, (and, for example, filter sweeping). The sound will have more
depth and life, for example, if Oscillator2 is regulated as FM with a little envelope or LFO.
Another example of what the oscillators can produce is noise. By frequency modulating the oscillators
in a ring, Osc1 to Osc2 to Osc3 to Osc1, noisy signals can be created. See the illustration below.
RING FREQUENCY MODULATION, OSCILLATOR1/SINUS out
OUTPUT (Volts)
3.00 4.00 5.00 6.00 7.00 8.00
Time (milliseconds)
dBV rms
0.0
-10.0
-20.0
-30.0
-40.0
-50.0
-60.0
-70.0
-80.0
-90.0
1.0k 3.0k 5.0k 7.0k 9.0k 11.0k 13.0k 15.0k 17.0k 19.0k
Frequency (Hz)
C5
C2
38
