CybTouch 8 G – User Manual
Aug.
2016
V3.1
Manual axeS MoveMenT

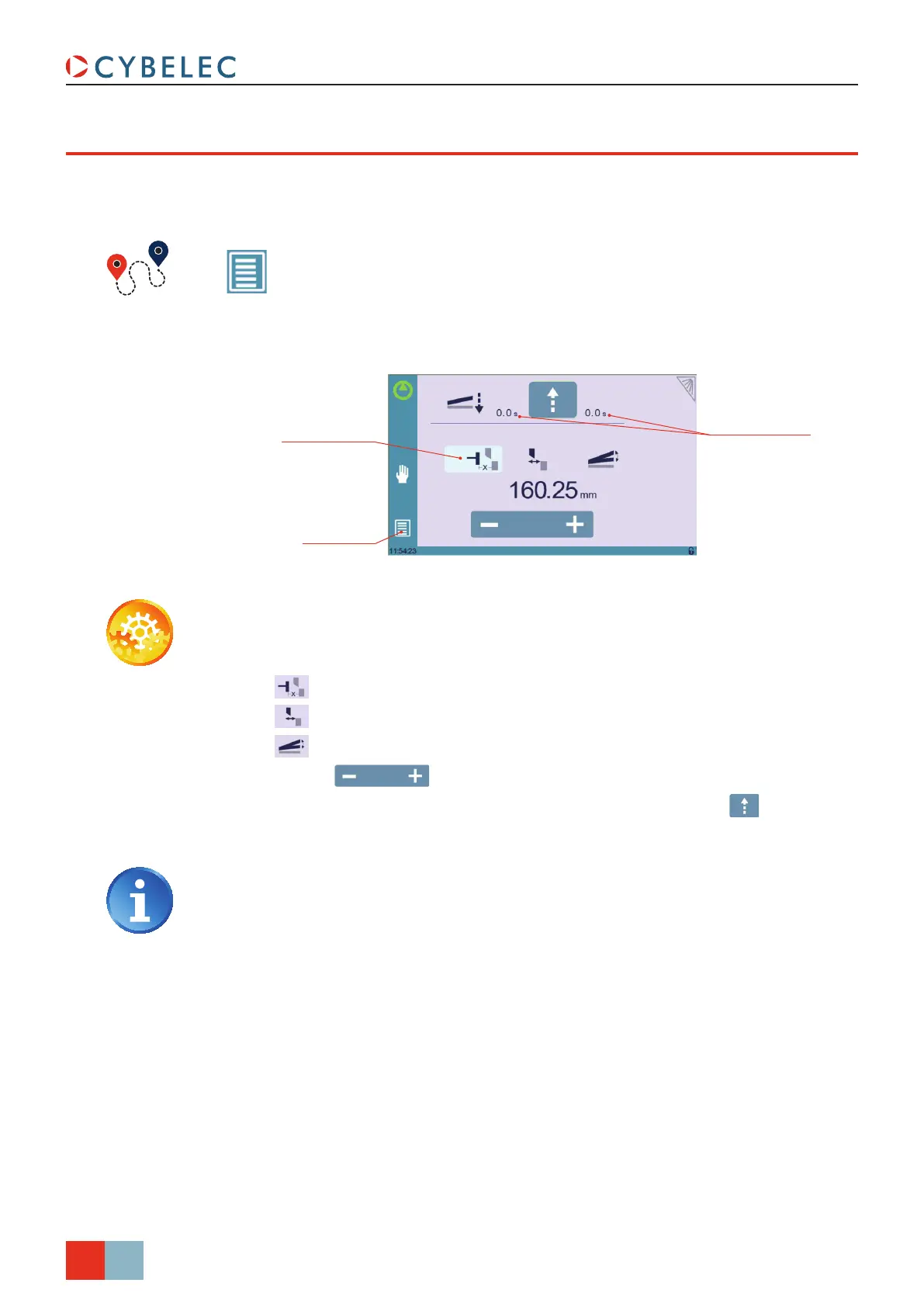

In the course of setting up a machine, it is sometimes necessary to be able to move the
axes manually, for example when changing the tooling. This can be done on this page.
(Menu Button) → Other menus → Manual movement
setting instructions:
1. Select the axis that you want to move:
•
for the back gauge X axis.
•
for the blade gap.
•
for the cutting angle.
2. Touch the buttons to move the selected axis.
3. Use the foot switch (Low Speed Down movement) and this button
(High Speed
Up) to move the beam.
If no specific duration is entered, the axis will move as long as the command
(pedal or button) is activated.
Select the axis you want
to move manually by
touching its icon
To move the beam
precisely, enter a duration
for the pulse here
