HARDWARE INSTALLATION CONT.
RACKMOUNT INSTALLATION FOR 4-POST RACK:
RACKMOUNT EARS INSTALLATION CONT.

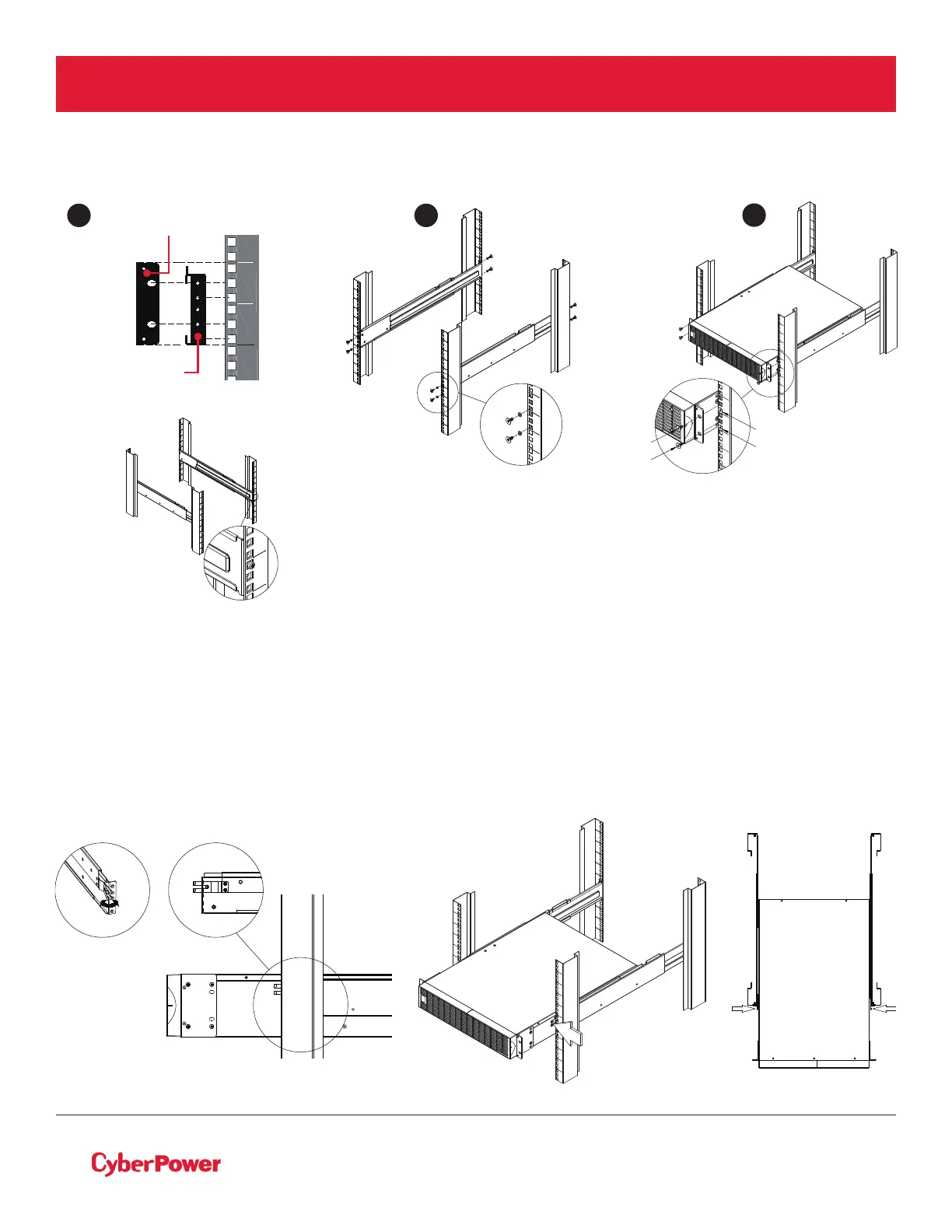

Step 5: Place and secure the step-down transformer on the rails
Slide the hanging brackets on the step-down transformer on to the rails mounted in the rack with the front
of the unit facing toward you. Secure the step-down transformer to your rack with four black M5X12L pan
head screws at the front of the rack (square holes 1 and 4 as shown above).
NOTE: To slide the step-down transformer out from the rack
The step-down transformer will be secured by a safety locking mechanism midway of pulling it out of the
rack. Use both hands to hold the step-down transformer and press the safety locking tab to pull the step-
down transformer out.
3 4
5
Rackmount ear
Rackmount rail
position 4
position 1
position 2
position 5
position 1
position 4
