9

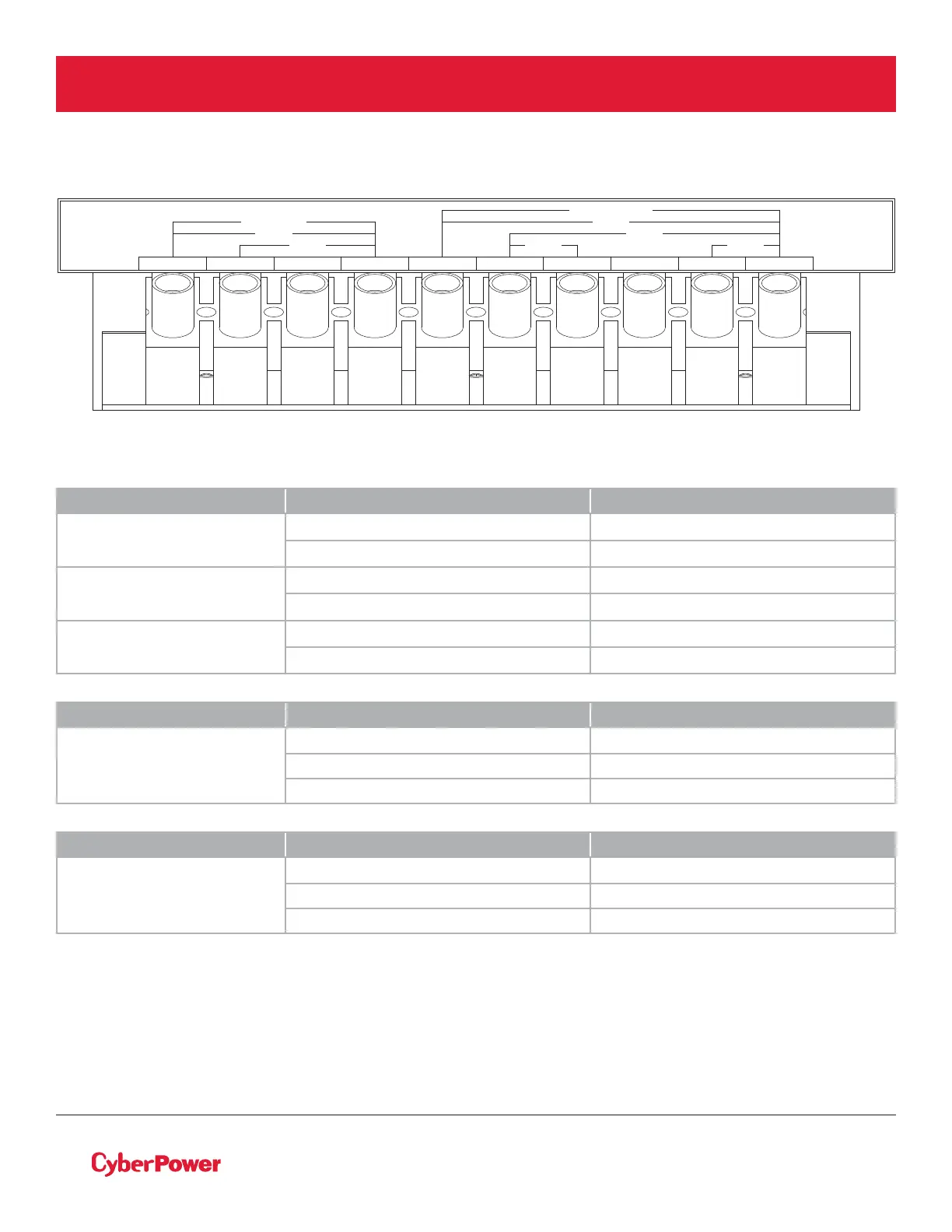

Terminal Block Identification
Terminal Block Configuration
ELECTRICAL INSTALLATION CONT.
INPUT VOLTAGE AC OUTPUT CONNECTION OUTPUT VOLTAGE
L1  L2 = 200 Vac
L1  N  L2 100 Vac  0  100 Vac
L1  L2 200 Vac
L1  L2 = 220 Vac
L1  N  L2 110 Vac  0  110 Vac
L1  L2 220 Vac
L1  L2 = 230 Vac
L1  N  L2 115 Vac  0  115 Vac
L1  L2 230 Vac
INPUT VOLTAGE AC OUTPUT CONNECTION OUTPUT VOLTAGE
L1T  L2 = 208 Vac
L1  N  L2 120 Vac  0  120 Vac
L1  L2 240 Vac
L1  L2T 208 Vac
INPUT VOLTAGE AC OUTPUT CONNECTION OUTPUT VOLTAGE
L1  L2 = 240 Vac
L1  N  L2 120 Vac  0  120 Vac
L1  L2 240 Vac
L1  L2T 208 Vac
240V
AC INPUT
AC OUTPUT
208V
240V
L1T L1 G L2 L2T L2 N G N L1
120V120V
208V
