1.Summary
CPL2000 is a type of current probe that can test AC and DC simultaneously. The current under
test can reach maximum value 2000Arms, peak value 3000Apk, bandwidth 10 kHz (-3dB). With two
range selection (200A and 2000A optional), users can choose the proper range according to the current
value; with auto zero function, users can make use of CPL2000 easily, and the power and battery low
voltage alarm indication light and overload alarm buzzer equipped can notify the users fast. Also,
CPL2000 can be powered by battery or external power supply. Its standard BNC output port allows it to
connect with oscilloscope and other devices, including multi-meter by BNC to Double Banana plug.
CPL2000 is usually used in fields including power frequency measurement, motor drive and power
suppy.

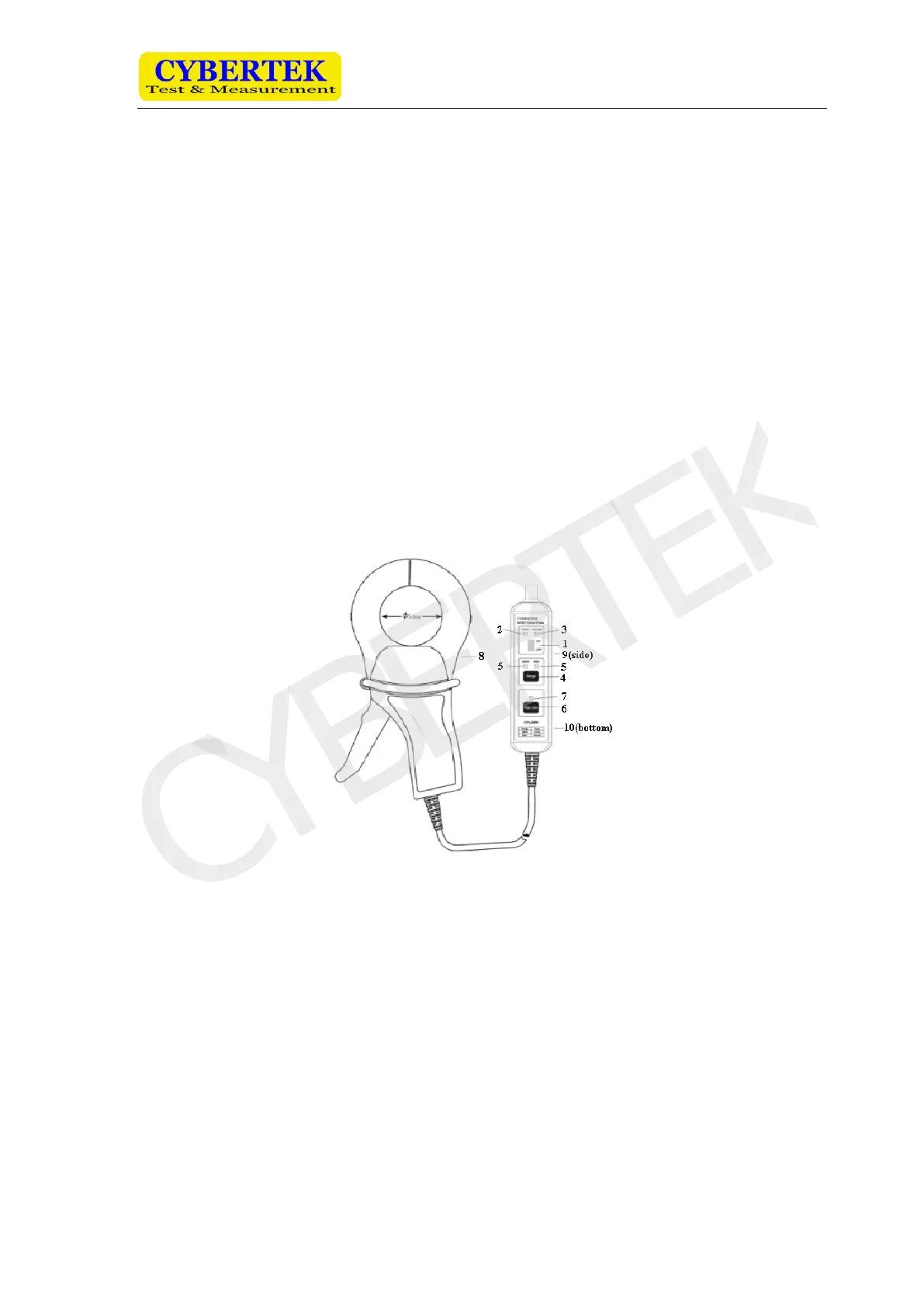

2.Probe Parts Description
Probe
Power Switch
OFF： Probe is turned off and power supply is off.
ON： Probe is turned on and power supply is on
Power Indication Light: Lighted green when power supply switch is ON.
Low Power Indication Light: Lighted red when battery voltage is lower than 6.5V, please change
battery ASAP.
Range Button: Range switching button
Range Indication light: Indicating the current range selection. 2000A and 200A optional.
Auto zero button: To test accurately, zero set the probe to prevent the environmental factors such
as earth magnetic field or temperature drift from affecting the result.
