5
 Auto zero indication light: lighted during zero setting.
 Clamp: the current testing clamp, diameter around 54mm.
 External power supply port: external DC power supply.
 Battery Box: 9V alkaline battery within. Please disconnect from the conductor and oscilloscope,
turn off the probe when user changes the battery.

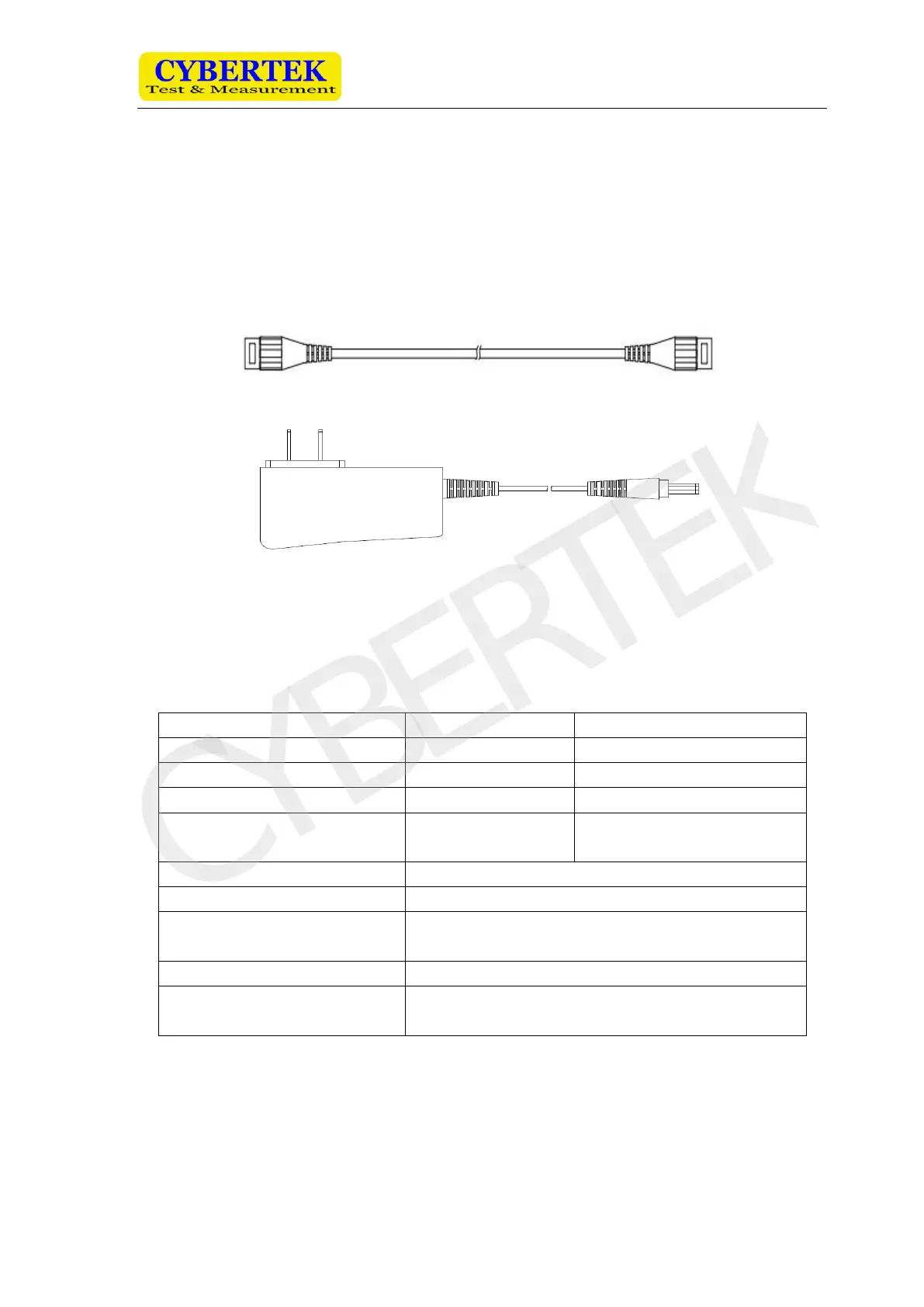

 Accessories
Output Cable (CK-310): 1m
Power Supply Adapter (CK-612): DC12V/1A
3.Electronics Characteristics
Test Condition: 23℃, 60RH， no nearby current, cable under test through the center during
testing, load impedance 1MΩ
Range
200A
2000A
Max testing current
200Arms
2000Arms
Peak value current
300Apk
3000Apk
Range Sensitivity
10mV/A
1mV/A
Typical Accuracy
（DC，45Hz~66Hz）
±2 %rdg.±5mV
±2 %rdg.±1mV
Bandwidth（-3dB）
DC～10kHz
Operating voltage
CATII 600V
Typical battery type and
service life
9V alkaline cascade battery/ 15 hour
Low power indication light
Lighted red when battery voltage is lower than 6.5 V
Overload indication
Buzzer will be activated when current under test surpass
the range
4.Operating Methods
 Set the CM of the oscilloscope to DC, oscilloscope input impedance to 1MΩ. To make number
reading easier, user can change the display unit of the oscilloscope from voltage to current. Set the
corresponding attenuation according to the situation, for example, for probe set 2000A (1mV/A),
oscilloscope should be 1000X, for probe set 200A (10mV/A), oscilloscope should be 100X. User can
