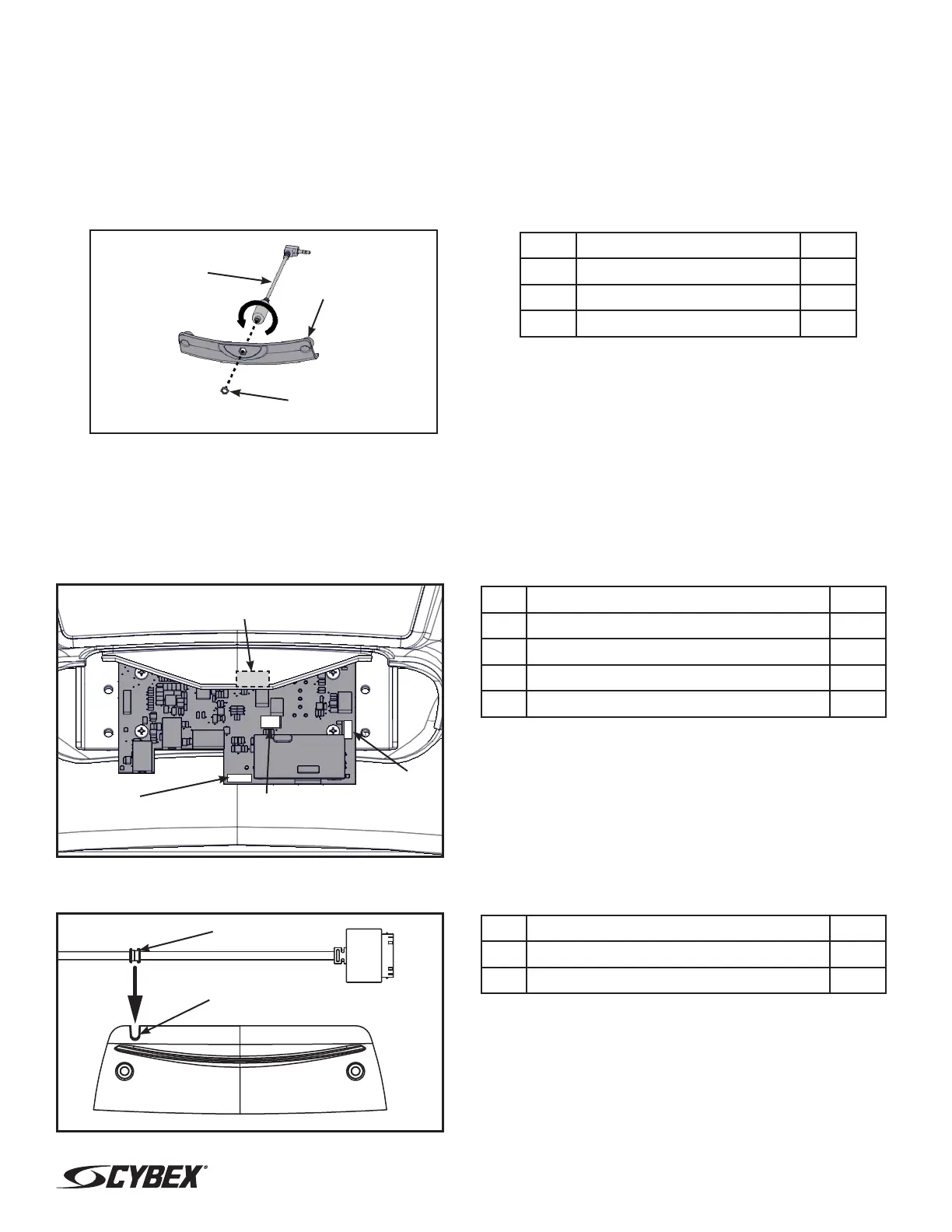

CYBEX 625T Installation Instructions

Page 5 of 7
www.cybexintl.com
2. Plug the GFX to MCC cable into the iPod board.
Install headphone jack cable (non A/V units)
1. Remove the blank decal from the headphone jack cover using a utility knife.
2. Install the headphone jack decal on the headphone jack cover.
3. Install the nut into the front of the headphone jack cover.
1
3
2
Description Qty
1 Headphone Jack Cover 1
2 Nut 1
3 Headphone Jack Cable 1
4. Screw the headphone jack cable into the headphone jack cover and tighten by hand.
Install handset assembly
1. Place the handset assembly in position and plug in the following cables: iPod board (J12),
ground wire, handset membrane (J9), and contact heart rate grips (J7).
1
3
2
4
Description Qty
1 iPod Board (J12) (under cover) 1
2 Ground wire 1
3 Handset Membrane (J9) 1
4 Contact Heart Rate Grips (J7) 1
2. Insert the strain relief of the iPod cable into the notch in the access cover.
1
2
Description Qty
1 iPod cable strain relief 1
2 Access cover notch 1

CYBEX 625T Specifications

General

User Weight Capacity	400 lbs
Speed Range	0.5 - 12.4 mph
Incline Range	0% to 15%
Display	LED
Heart Rate Monitoring	Contact and wireless
Running Area	60" x 20" (152 x 51 cm)
