Assembly and Setup
Page 2–9
Cybex 750C/750R Owner’s Manual
Item
Qty
Part
Number
Description
11
4
HS-19108
Screw
,
5/16-18 x .75”
,HXHD,WHIZ-LOCK,GR5
12
4
HW-53018
W
asher
, 5/16” Split
13
6
HS-15706
Screw
, 8-16 x .50”,
PNHD, BLK
14
4
HS-41107
Screw
, 5/16-18 X 1.50”
15
1
HX-00438
3/16” Allen wrench

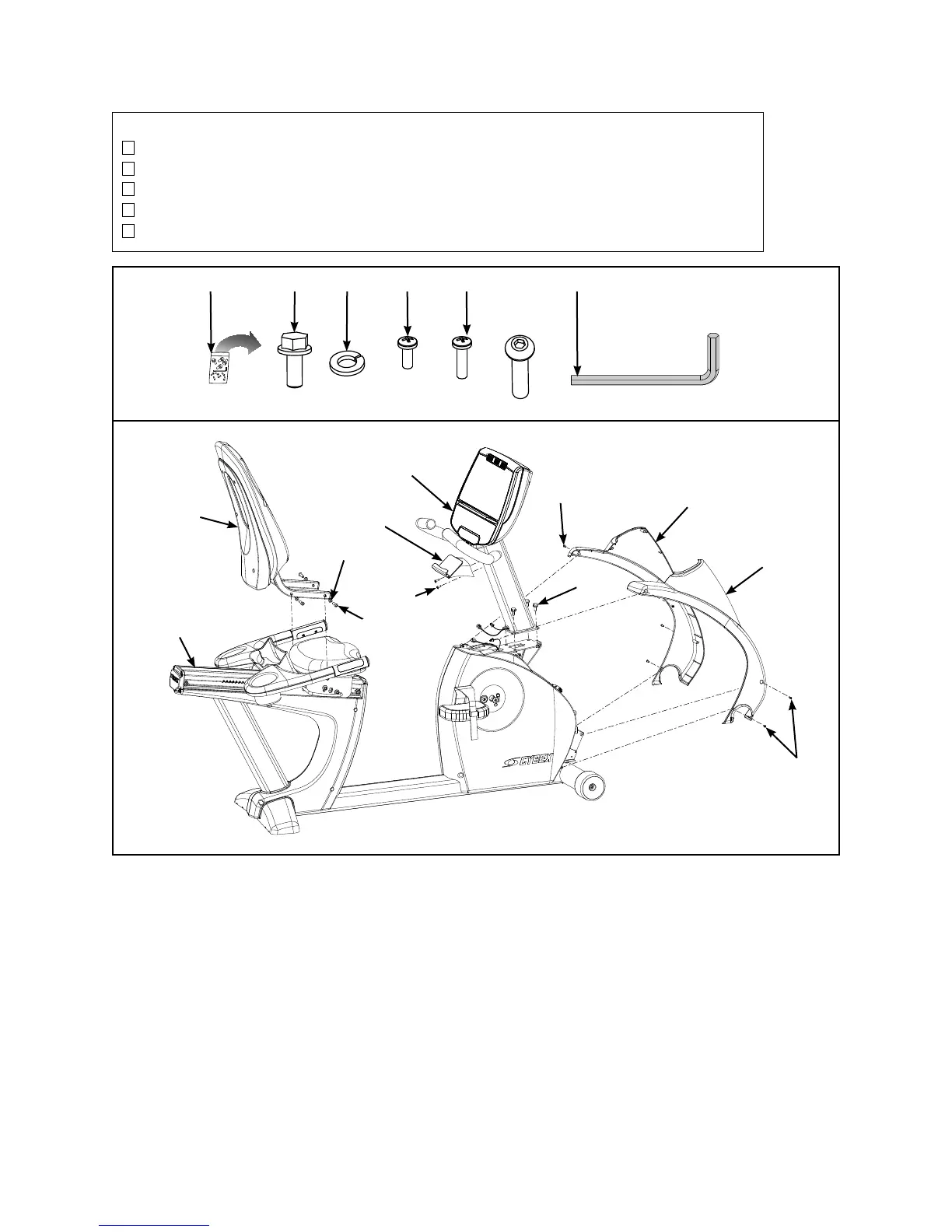

Figure 1b
#11
#12
#13
#7
#5
#12
#3
#2
#14
#15
#1
#14
#4
#13
#11
#13
#6
NA
26
28
