Using a 3/16” pin punch and hammer, carefully remove roll pin securing cable end to top weight connec-H.
tor. See Figure 3.
Carefully lean guide rods slightly outward. I. NOTE: Excessive pressure on guide rods may
damage lower guide rod caps.
Slide top weight up and out of machine and carefully set aside.J.
Have an assistant hold guide rods vertical.K.
NOTE: Standard Weight Stack only - See steps 6L - 6P and Figures 4 and 7.
NOTE: Graduated Weight Stack only - Skip steps 6L - 6P.
Slide weight stack bumpers up and out of machine. L.
Install washer (#14) and weight spacer tube (#12) onto each guide rod.M.
Install the four plastic inserts (#11) onto each guide rod. N. NOTE: The plastic inserts will slide inside the
weight spacer tube.
Install fl at washer (#13) onto each guide rod. O.
Re-install weight stack bumpers. P.

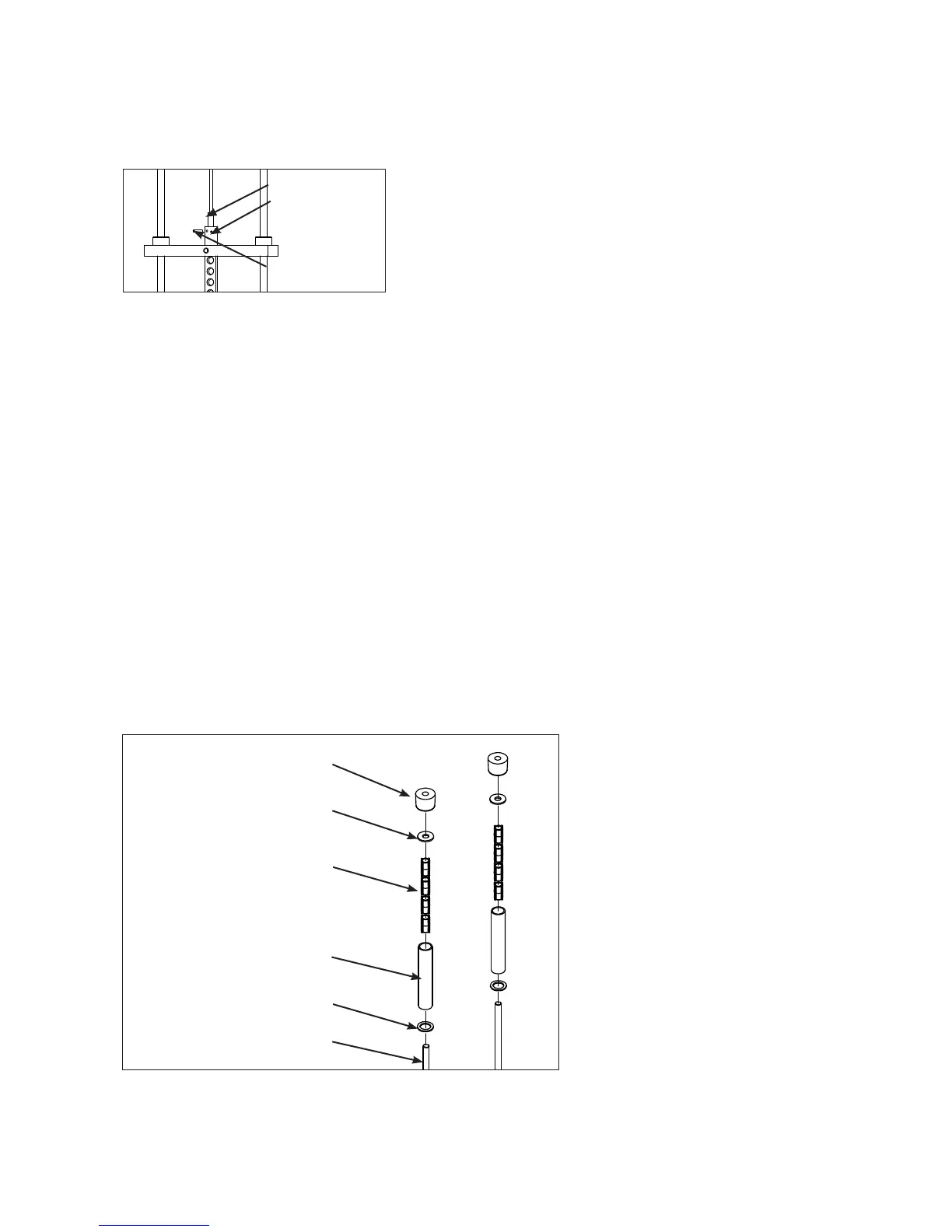

Figure 3
Cable End
Top Weight
Connector
Roll Pin
Figure 4
Guide Rod
# 13
Weight Stack Bumper
# 11
(4x)
# 12
# 14
