Service
Page 4-21
M. Verify the on/off switch is installed properly. See Figure 19.
4. Attach the power switch assembly.
A. Place the new power switch assembly into position. See Figure 18.
B. Using a Phillips head screwdriver, attach the two screws removed during step 3A into the power
switch. See Figure 18.
5. Attach the access cover.
A. While being sure not to pinch any cables, place the access cover in position.
B. Using a Phillips head screwdriver, attach the four screws removed in step 3A.
6. Test the unit for proper operation.
A. Connect the power cord into the power inlet and the power outlet.
B. Turn the main power switch to the on (I) position.
C. Operate the unit at all levels to verify proper operation.
D. Turn main power switch off to verify it is wired properly.

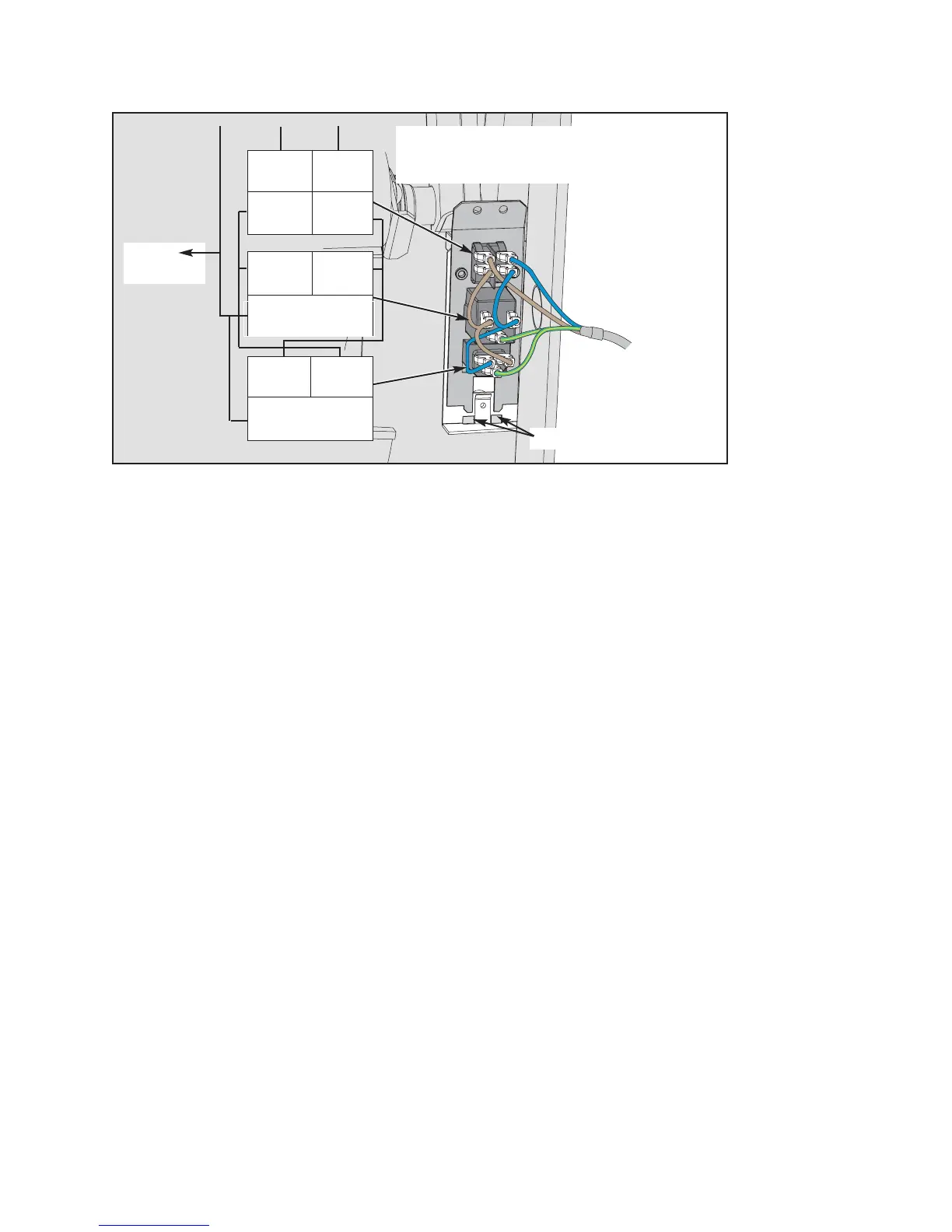

Figure 19
NOTE: Shown from inside the unit.
See the schematic at the end of this
chapter for more detail.
Slots
Brown
Blue
Brown
Blue
Brown
Blue
Brown
Blue
Green and
Yellow
Green and
Yellow
To the
Controller
