CYBEX Arc Trainer 610A Service Manual

TOOLS REQUIRED
• Phillips screwdriver
• Needle nosed pliers
• Two (2) Fuses, part number EF-12417.
1. Disconnect the external power source.
A. Turn the main power switch above the power inlet to the off (0) position.
B. Unplug the power cord from the power outlet.
! WARNING: Disconnect the power cord before continuing this procedure. Keep wet items away
from inside parts of the unit. Electrical shock could occur even if the unit is
unplugged.
2. Remove the access cover.
A. Using a Phillips screwdriver, remove the four screws and four washers securing the access
cover. See Figure 2.
B. Remove the access cover.
! WARNING: Flywheel may be hot. Wait until it cools before servicing.
! WARNING: Do not touch components on the lower board. A charge can remain after
unplugging the power cord and turning off the unit.
3. Replace the fuses.
A. Locate the lower board.
B. Pull out on the lower board shield (it will snap
out). See Figure 26.
C. Locate the fuses in the upper left hand corner
of the control board. See Figure 26.
D. Replace the old fuses with the new fuses.
E. Place the lower shield (removed in step 5B)
into position and secure the finned fasteners
(the shield with snap in).
F. Attach the access cover removed in steps 2A
and 2B. NOTE: Be careful not to pinch any
cables.
Cybex Arc Trainer 610A Service Manual
Service
Page 4-33

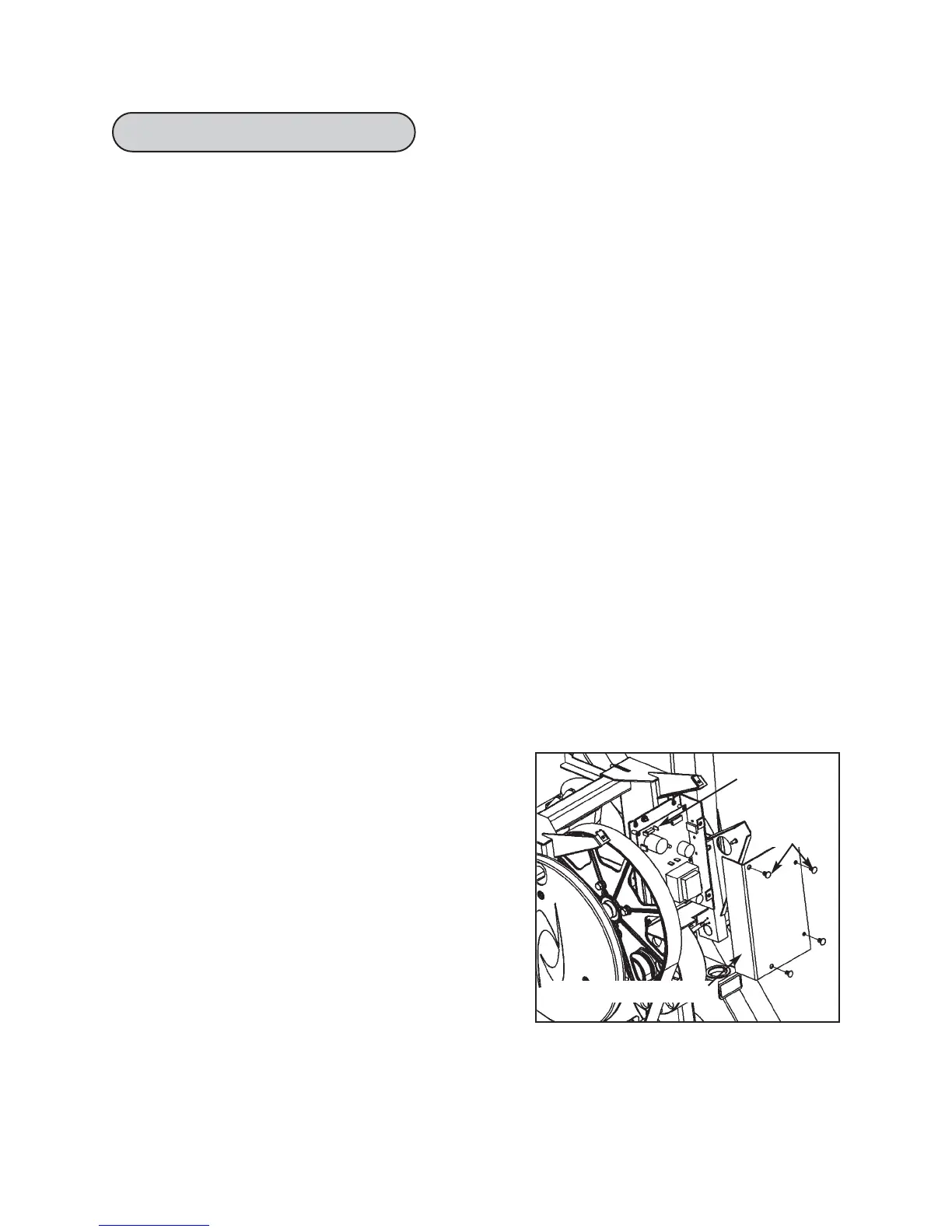

Figure 26
Fuses
Lower Board Shield
Finned
Fasteners
(4)
Lower Control Board Fuses
