CYBEX Arc Trainer 610A Service Manual

6. Check the connections:
A. Check to see that all of the cables are connected firmly in their proper place.
7. Secure the console back.
A. While being sure not to pinch any cables, use a Phillips head screwdriver to tighten four screws
securing the console front to the console back.
B. Using a Phillips head screwdriver secure the access cover to the console back with the screw
removed in step 2A.

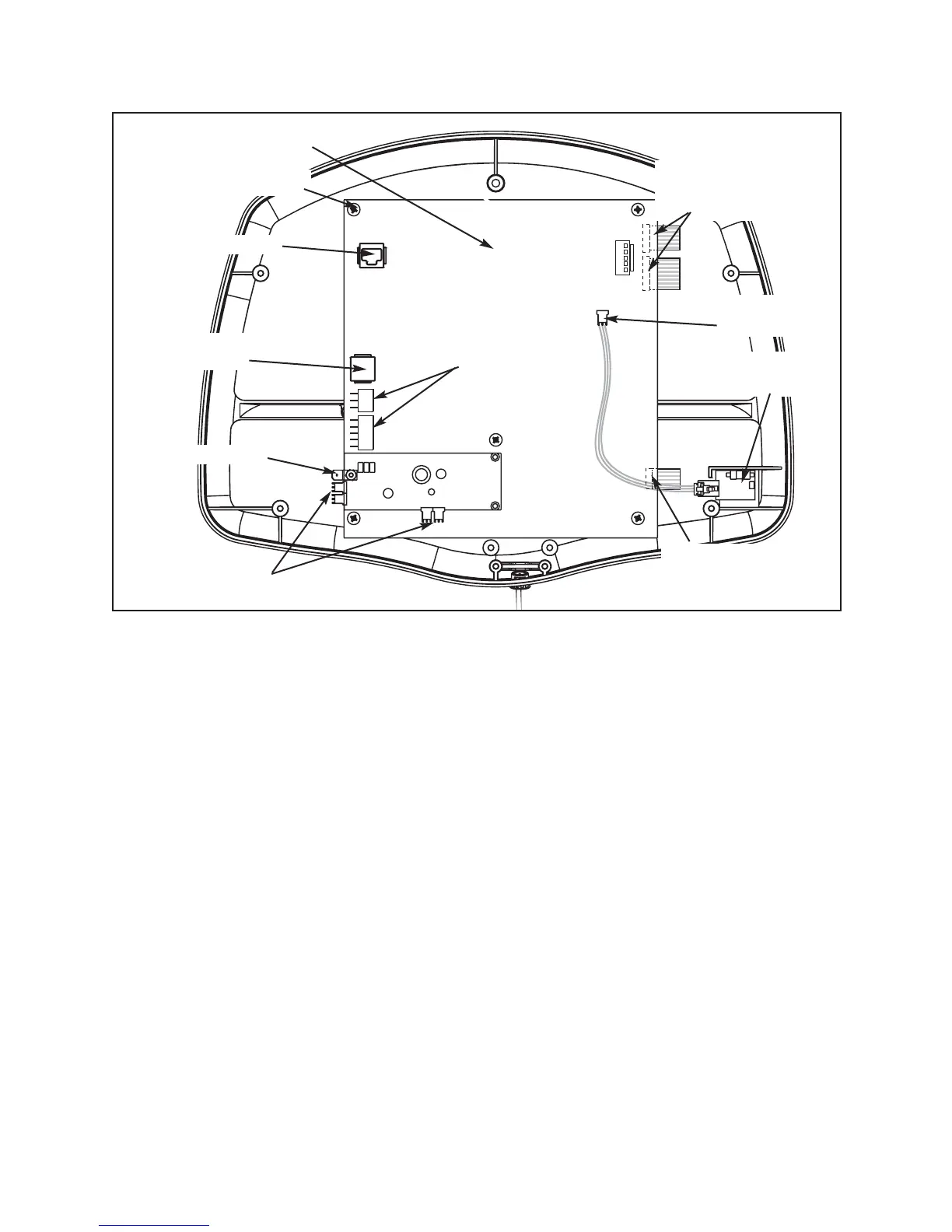

CSAFE
Connector
Upper Display Board
Mounting Screws (5)
Contact Heart
Rate Ports
Lower Switch
Membrane Connector
(on front side)
Upper Switch
Membrane Connectors
(on front side)
Polar Heart
Rate Board
Polar
connector
Display Cable Ports
Figure 28
RJ-45 Port
Ground wire
Cybex Arc Trainer 610A Service Manual
Service
Page 4-35
