Cybex Bravo 8830/8840 Owner’s Manual

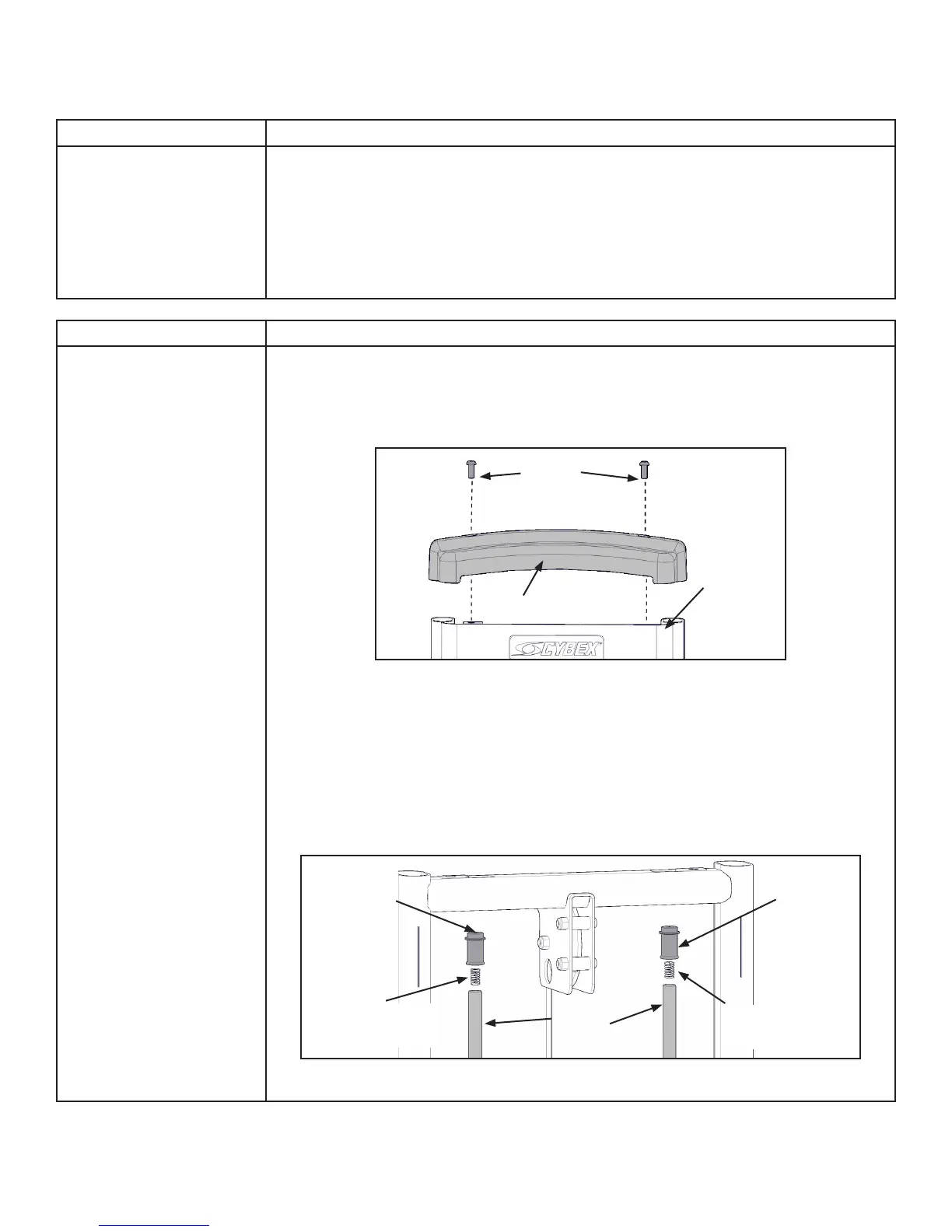

Move to desired location
If Then
If machine can be
moved without
adding or removing
weight stacks.
Two people will be required for this procedure
1. Move to desired location.
2. Remove the four shipping cones using a 3/4” socket or wrench.
3. Attach foot pads to each foot of frame.
If Then
If machine needs
weight stacks
removed before
moving to desired
location.
Two people will be required for this procedure
1. Remove the two Button Head Socket Cap Screws (BHSCS) secur-
ing the top cap to the frame using a 7/32” Allen wrench.
BHSCS
Top Cap
Shroud
2. Remove top cap and BHSCS.
3. Lift shroud up and out of machine.
4. Remove guide rod caps. Guide rod cap contains a compression
spring that will y if grasp is not released slowly. Slide spring loaded
guide rod cap down guide rod until cap is clear of frame. Slowly
release grasp of guide rod cap and remove.
Compression
Spring
Guide
Rods
Guide
Rod Cap
Compression
Spring
Guide
Rod Cap
To Next Page
